PISTON KIT DR600 DR650 96.50, FORGED WOSSNER 8503D150
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 96.50mm bore, designed for Suzuki DR600, SP600 Djebel, and DR650 models. Manufactured in Germany, this high-performance piston enhances strength, heat transfer, and durability. The elliptical design ensures uniform bearing surface distribution, reducing localized pressure and preventing piston collapse. Features include forged construction for superior strength and durability, optimized heat transfer to cylinder walls, elliptical design for uniform bearing surface under heat expansion, and increased compression ratio for improved engine performance. Specifications include a 96.50mm bore (96.44mm actual), 589 cm³ displacement, 85.00mm stroke, 0.06mm clearance, 10.00:1 Wossner compression ratio (8.50:1 OEM), +6.10 cm³ dome volume, and 29.90mm compression height. Cross-reference OEM part numbers include Wossner Piston 8503D150, Lock CW23, Pin WP024, and Ring Set 965XSY.
- SKU
- 56-W4597_150.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96.5mm
- Variant Id
- 255761
FULL DESCRIPTION
Wössner Forged Piston Kit 96.50mm
Upgrade your motorcycle's performance with this high-quality forged piston kit from Wössner. Manufactured in Germany, this piston is engineered for superior strength, enhanced heat transfer, and exceptional durability. Its advanced elliptical design ensures uniform bearing surface distribution, even under extreme heat expansion, effectively reducing localized pressure and preventing piston collapse for a longer-lasting, more reliable engine.
Key Features:
- Forged construction for unmatched strength and durability
- Optimized heat transfer for improved cylinder cooling
- Elliptical design for consistent bearing surface under thermal stress
- Increased compression ratio for a significant boost in engine performance
- Precision engineered and manufactured in Germany
Specifications:
- Bore Size: 96.50mm (actual bore 96.44mm)
- Displacement: 589 cm³
- Stroke: 85.00mm
- Piston Clearance: 0.06mm
- Wössner Compression Ratio: 10.00:1
- Original Equipment Manufacturer (OEM) Compression Ratio: 8.50:1
- Dome Volume: +6.10 cm³
- Compression Height: 29.90mm

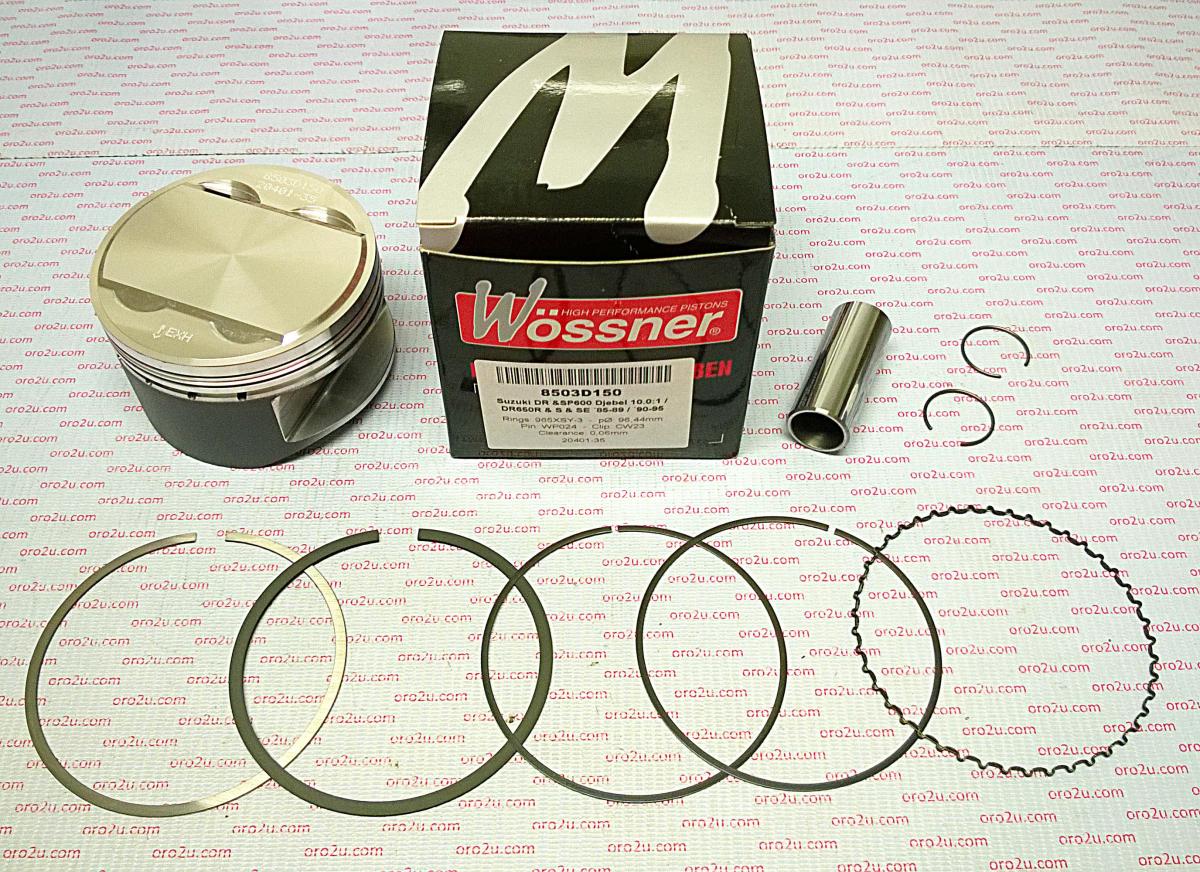

Included Components:
- Wössner Piston: 8503D150
- Lock Ring: CW23
- Piston Pin: WP024
- Ring Set: 965XSY
