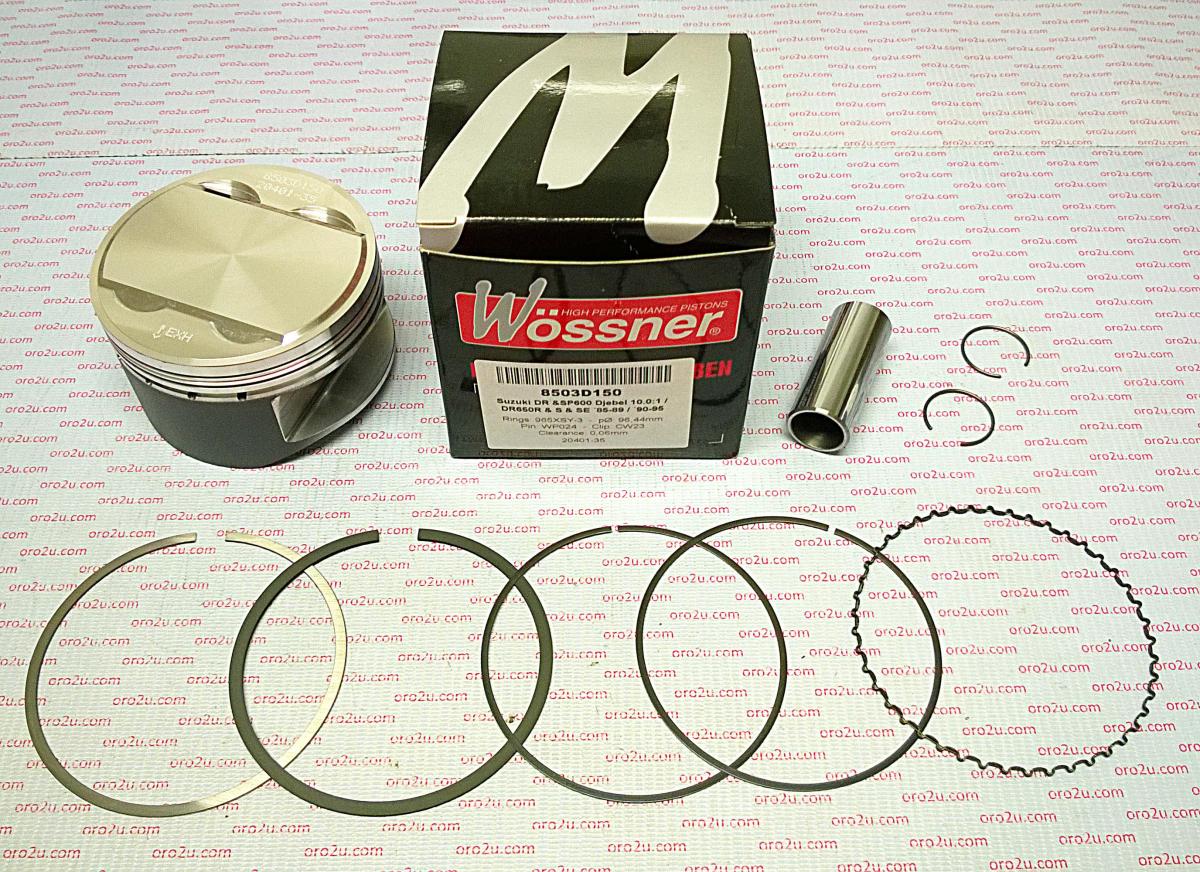

PISTON KIT DR600 DR650 95.00, FORGED WOSSNER 8503DA, 12111-15A00
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner 95mm forged piston kit designed for Suzuki DR600, SP600 Djebel, DR650R, DR650S, and DR650SE models. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance. Features include forged construction for superior strength and durability, optimized heat transfer to cylinder walls, and an elliptical design that ensures a uniform bearing surface under heat expansion. It reduces localized pressure, evenly distributes thrust loads, and prevents piston collapse under high-stress conditions. Specifications: Bore Size 95.00mm (Actual Size 94.94mm), Wossner Part Number 8503DA, Lock Part Number CW23, Pin Part Number WP024, Ring Set Part Number 950XSY, Displacement 589 cm³, Stroke 85.00mm, Clearance 0.06mm, Compression Ratio 10.00:1, OEM Compression Ratio 8.50:1, Dome Volume +6.10 cm³, Compression Height 29.90mm. Cross-Reference OEM Part Number: 12111-15A00.
- SKU
- 56-W4597.A
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (28)
| Make | Model | Year |
|---|---|---|
| SUZUKI | DR 600 | 1985 |
| SUZUKI | DR 600 | 1986 |
| SUZUKI | DR 600 | 1987 |
| SUZUKI | DR 600 | 1988 |
| SUZUKI | DR 600 | 1989 |
| SUZUKI | DR R 650 | 1990 |
| SUZUKI | DR R 650 | 1991 |
| SUZUKI | DR R 650 | 1992 |
| SUZUKI | DR R 650 | 1993 |
| SUZUKI | DR R 650 | 1994 |
| SUZUKI | DR R 650 | 1995 |
| SUZUKI | DR S 650 | 1990 |
| SUZUKI | DR S 650 | 1991 |
| SUZUKI | DR S 650 | 1992 |
| SUZUKI | DR S 650 | 1993 |
| SUZUKI | DR S 650 | 1994 |
| SUZUKI | DR S 650 | 1995 |
| SUZUKI | DR SE 650 | 1990 |
| SUZUKI | DR SE 650 | 1991 |
| SUZUKI | DR SE 650 | 1992 |
| SUZUKI | DR SE 650 | 1993 |
| SUZUKI | DR SE 650 | 1994 |
| SUZUKI | DR SE 650 | 1995 |
| SUZUKI | SP 600 | 1985 |
| SUZUKI | SP 600 | 1986 |
| SUZUKI | SP 600 | 1987 |
| SUZUKI | SP 600 | 1988 |
| SUZUKI | SP 600 | 1989 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 95mm
- Variant Id
- 255759
FULL DESCRIPTION

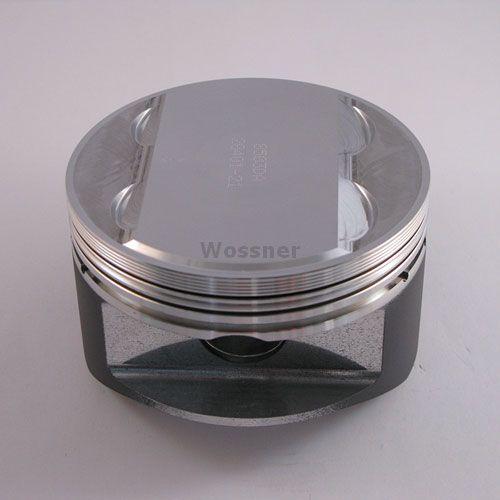

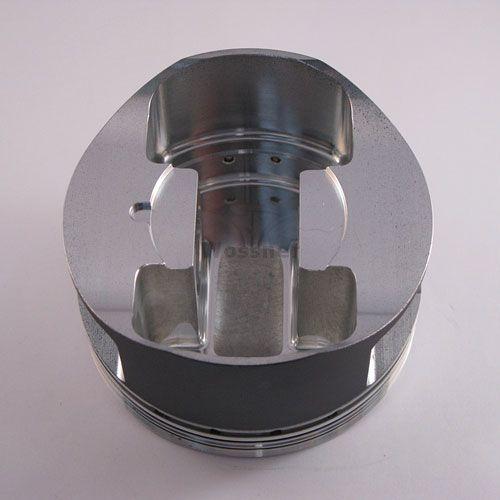

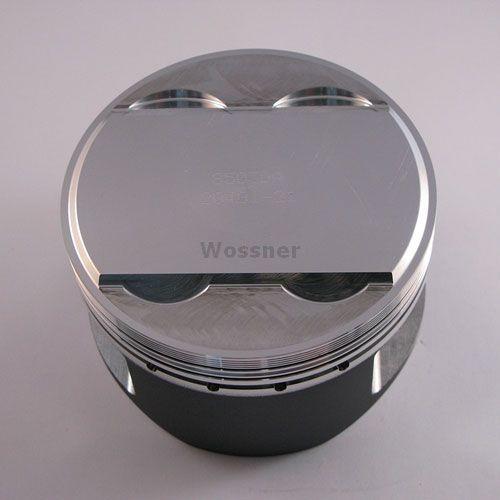

Wossner 95mm Forged Piston Kit for Select Suzuki Models
Enhance the performance and durability of your motorcycle with this Wossner 95mm forged piston kit. Engineered in Germany, this high-quality piston is designed for optimal combustion efficiency and superior strength under demanding conditions.
Key Features:
- Forged Construction: Provides exceptional strength and resistance to wear, ensuring longevity.
- Optimized Heat Transfer: Designed to efficiently transfer heat to cylinder walls, preventing overheating.
- Uniform Load Distribution: Features an elliptical design that maintains a consistent bearing surface even with heat expansion, reducing localized pressure and preventing piston collapse.
- Reduced Friction: Engineered to minimize friction for smoother operation and increased power output.
- High Performance: Offers a significant increase in compression ratio for improved performance compared to OEM specifications.
Specifications:
- Bore Size: 95.00mm (Actual Size: 94.94mm)
- Stroke: 85.00mm
- Clearance: 0.06mm
- Compression Ratio: 10.00:1 (OEM: 8.50:1)
- Dome Volume: +6.10 cm³
- Compression Height: 29.90mm
- Displacement: 589 cm³
- Wossner Part Number: 8503DA
- Lock Part Number: CW23
- Pin Part Number: WP024
- Ring Set Part Number: 950XSY
Cross-Reference OEM Part Numbers:
- 12111-15A00
