2Bros Parts

PISTON KIT B 97MM YAMAHA YZ 450F 18-19, ATHENA S5F09700004B

£190.48Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

ATHENA Forged Piston Kit B 97MM for Athena and OE Cylinder. Features a high-performance aluminum alloy with high silicon content for reliability, resistance, and excellent performance. Cutting-edge CNC machining ensures dimensional tolerances of less than 0.01 mm. Some pistons include a molybdenum disulfide coating on the skirt to reduce friction, enhance performance, and improve durability. Piston rings are produced in Japan with wear-resistant coatings (PVD or chromium nitride) for increased retention and durability. Kit includes piston, pin, circlips, and piston rings. Technical features: Big End Pin Diameter 18x10x48.8mm, Bore Diameter 96.96mm, Compression Height 24.00mm, Compression Ratio 12.8:1, Displacement 450cc, Net Weight 0.35Kg, Number Of Segments 3, Piston Pin Type Biconical, Piston Type Forged.

Specifications
SKU
56-W4965.B.ATH
Brand
Athena
Availability
In Stock (1)

Fitments (9)

MakeModelYear
YAMAHAWR 450F2019
YAMAHAWR 450F2020
YAMAHAYZ 450F2018
YAMAHAYZ 450F2019
YAMAHAYZ 450FX2019
YAMAHAYZ 450FX2020
YAMAHAYZF 4502018
YAMAHAYZF 4502019
YAMAHAYZF X 4502019
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
97mm
Variant Id
295984
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

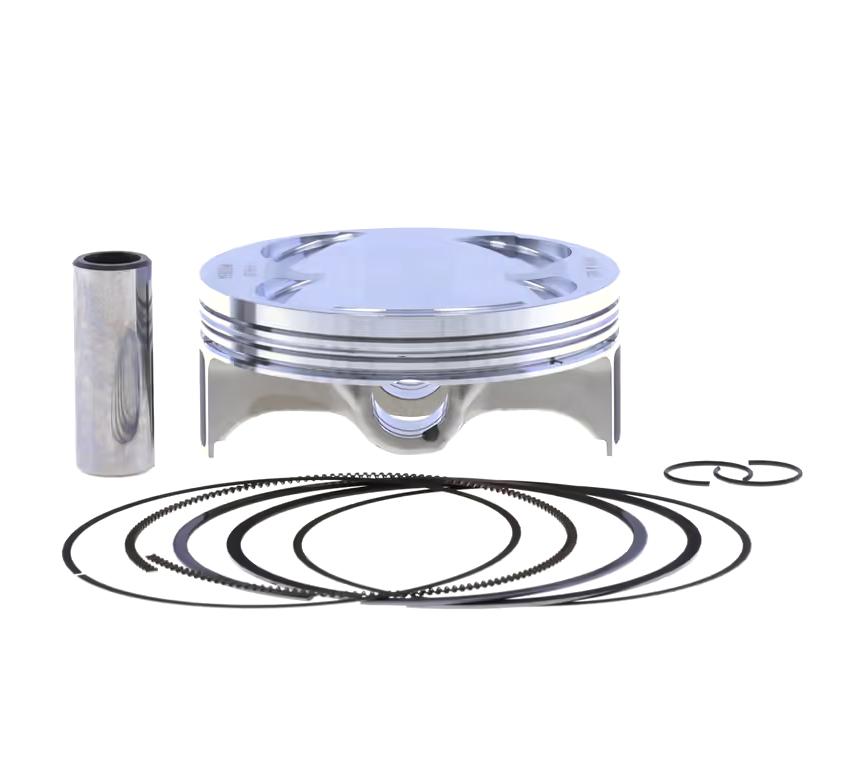

Athena Forged Piston Kit B - 97mm for Yamaha YZ 450F

This Athena Piston Kit is engineered for high-performance off-road motorcycles, featuring a forged construction for superior strength and durability. Crafted using advanced CNC machining, these pistons ensure precise dimensional accuracy, maintaining tolerances of less than 0.01 mm. They are made from a special aluminum alloy with a high silicon content, offering reliability equivalent to Original Equipment (OE) pistons while enhancing resistance and performance. The smooth piston profile promotes regular flow and optimal flame propagation.

Some piston skirts are treated with a molybdenum disulfide coating applied via screen printing. This treatment further reduces friction, boosting both performance and the piston's lifespan. Athena engineers utilize cutting-edge technical solutions and maintain the highest quality standards, often exceeding OE specifications, to guarantee exceptional performance and reliability.

Each piston is meticulously designed by Athena's R&D department in Italy. They undergo rigorous testing on engine dynamometer benches under progressive stress loads and are further validated on the track in the most demanding conditions. This kit includes the piston, pin, circlips, and piston rings, all of which are replaceable and interchangeable. The piston rings are produced in Japan with wear-resistant coatings (PVD or chromium nitride) to increase durability and longevity, ensuring they adapt perfectly to the cylinder liner even at low tangential loads for reduced friction and higher performance.

Key Features:

  • Forged Piston Type: Provides enhanced strength and durability.
  • High-Performance Aluminum Alloy: Features high silicon content for excellent resistance and performance.
  • Precision Machining: CNC machined to ensure dimensional tolerances of less than 0.01 mm.
  • Molybdenum Disulfide Coating: Applied to some piston skirts to reduce friction and improve durability.
  • OE Quality Standards: Engineered to meet or exceed Original Equipment specifications.
  • Complete Kit: Includes piston, pin, circlips, and piston rings.
  • High-Quality Piston Rings: Made in Japan with wear-resistant coatings for extended life.

Technical Specifications:

  • Bore Diameter: 96.96 mm
  • Compression Height: 24.00 mm
  • Compression Ratio: 12.8:1
  • Number of Segments: 3
  • Piston Pin Type: Biconical
  • Big End Pin Diameter: 18x10x48.8 mm
