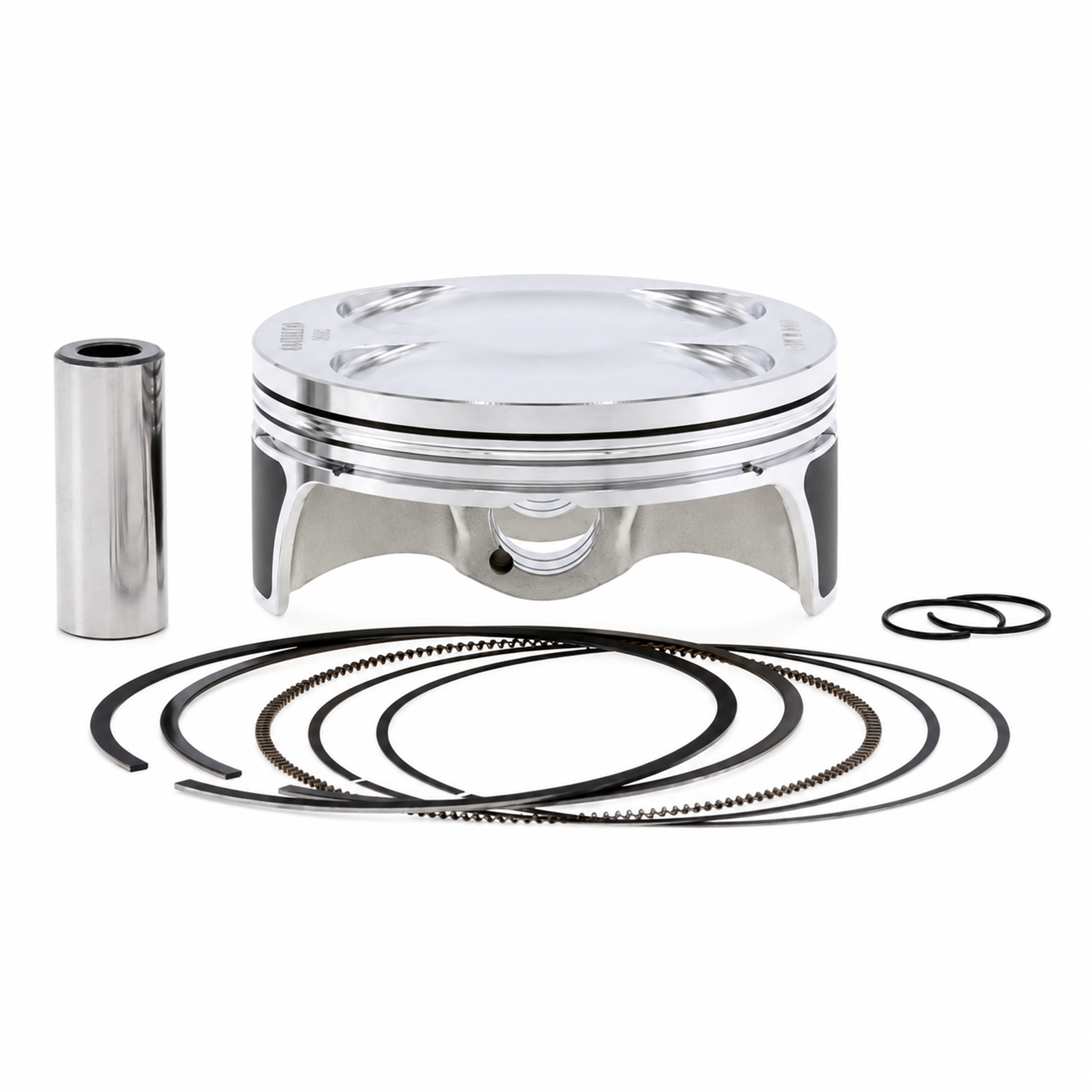

PISTON KIT B 97MM YAMAHA YZ 450 10-13, ATHENA S5F09700002B
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Forged Piston Kit B 97mm. This Athena piston is made from a special high-performance aluminum alloy with a high silicon content, ensuring reliability and greater resistance. Produced with cutting-edge CNC machining tools, it guarantees dimensional tolerances of less than 0.01 mm. Some piston skirts feature a molybdenum disulfide coating applied by screen printing to reduce friction, enhancing performance and durability. The piston rings, produced in Japan with wear-resistant coatings (PVD or chromium nitride), increase durability and adapt perfectly to the cylinder liner. This kit contains the piston, pin, circlips, and piston rings. Technical features: Bore Diameter 96.96 mm, Compression Height 24.00 mm, Compression Ratio 12.5:1, Displacement 450 cc, Number Of Segments 3, Piston Pin Type Standard, Piston Type Forged.
- SKU
- 56-W261.B.ATH
- Brand
- Athena
- Availability
- In Stock (2)
Fitments (8)
| Make | Model | Year |
|---|---|---|
| YAMAHA | YZ 450F | 2010 |
| YAMAHA | YZ 450F | 2011 |
| YAMAHA | YZ 450F | 2012 |
| YAMAHA | YZ 450F | 2013 |
| YAMAHA | YZF 450 | 2010 |
| YAMAHA | YZF 450 | 2011 |
| YAMAHA | YZF 450 | 2012 |
| YAMAHA | YZF 450 | 2013 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 97mm
- Variant Id
- 289778
FULL DESCRIPTION
Athena Forged Piston Kit B - 97mm Bore
Enhance the performance and durability of your motorcycle with the Athena Forged Piston Kit B. Crafted using advanced reverse extrusion and cutting-edge CNC machining, this piston ensures exceptional dimensional accuracy with tolerances of less than 0.01 mm. Made from a specialized high-performance aluminum alloy rich in silicon, it offers the reliability of original equipment (OE) pistons while delivering superior resistance and performance.
The piston features a perfectly smooth profile designed for optimized flow and efficient flame propagation. Some models include a molybdenum disulfide coating applied via screen printing to further reduce friction, boosting both performance and lifespan.
Athena engineers are dedicated to providing advanced technical solutions and the highest quality standards, meeting or exceeding OE production requirements for guaranteed performance and reliability. Each piston is meticulously engineered in Italy by the Athena R&D department and rigorously tested on engine dynamometer benches and on the track under extreme conditions.
This piston kit includes the piston, pin, circlips, and piston rings. All components are designed for replaceability and interchangeability. The included piston rings, produced in Japan with wear-resistant coatings (PVD or chromium nitride), minimize friction with the cylinder liner for higher performance and extended durability, adapting precisely even at low tangential loads.
Key Features:
- Piston Type: Forged
- Bore Diameter: 96.96 mm
- Compression Height: 24.00 mm
- Compression Ratio: 12.5:1
- Displacement: 450 cc
- Number of Piston Segments: 3
- Piston Pin Type: Standard
- Big End Pin Diameter: 18x10.5x44.5 mm
- Net Weight: 0.36 Kg
- Includes piston, pin, circlips, and piston rings
- Components are replaceable and interchangeable
- High-silicon aluminum alloy for enhanced performance and durability
- Smooth profile for optimal flow and flame propagation
- Some skirts feature molybdenum disulfide coating to reduce friction
- Piston rings produced in Japan with wear-resistant coatings
