PISTON KIT B 96-98 TE410 91.50, WOSSNER 8514DB HUSQVARNA
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner 91.51mm (91.45mm) forged piston kit with a 0.01mm oversize is designed for Husqvarna TE 410 models. Engineered for durability and precision, this piston ensures efficient heat transfer and uniform expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany, it meets high-quality standards for reliable performance. Features include optimized heat transfer for enhanced combustion efficiency and an elliptical design for uniform bearing surface and reduced localized pressure. Specifications: Bore Size 91.51mm (91.45mm), Displacement 399cc, Stroke 60.80mm, Clearance 0.06mm, Compression Ratio OEM (11.40:1), Dome Volume -2.50cm³, Compression Height 29.50mm, Lock Part Number CW20, Pin Part Number WP038, Ring Set Part Number 915XSY.
- SKU
- 56-W101.B
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| HUSQVARNA | TE 410 | 1996 |
| HUSQVARNA | TE 410 | 1997 |
| HUSQVARNA | TE 410 | 1998 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 91.5mm
- Variant Id
- 254516
FULL DESCRIPTION

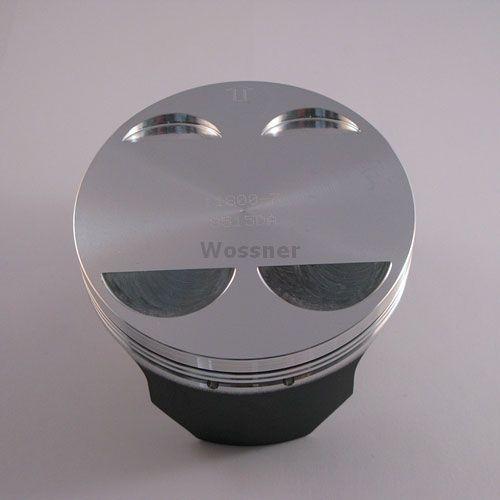

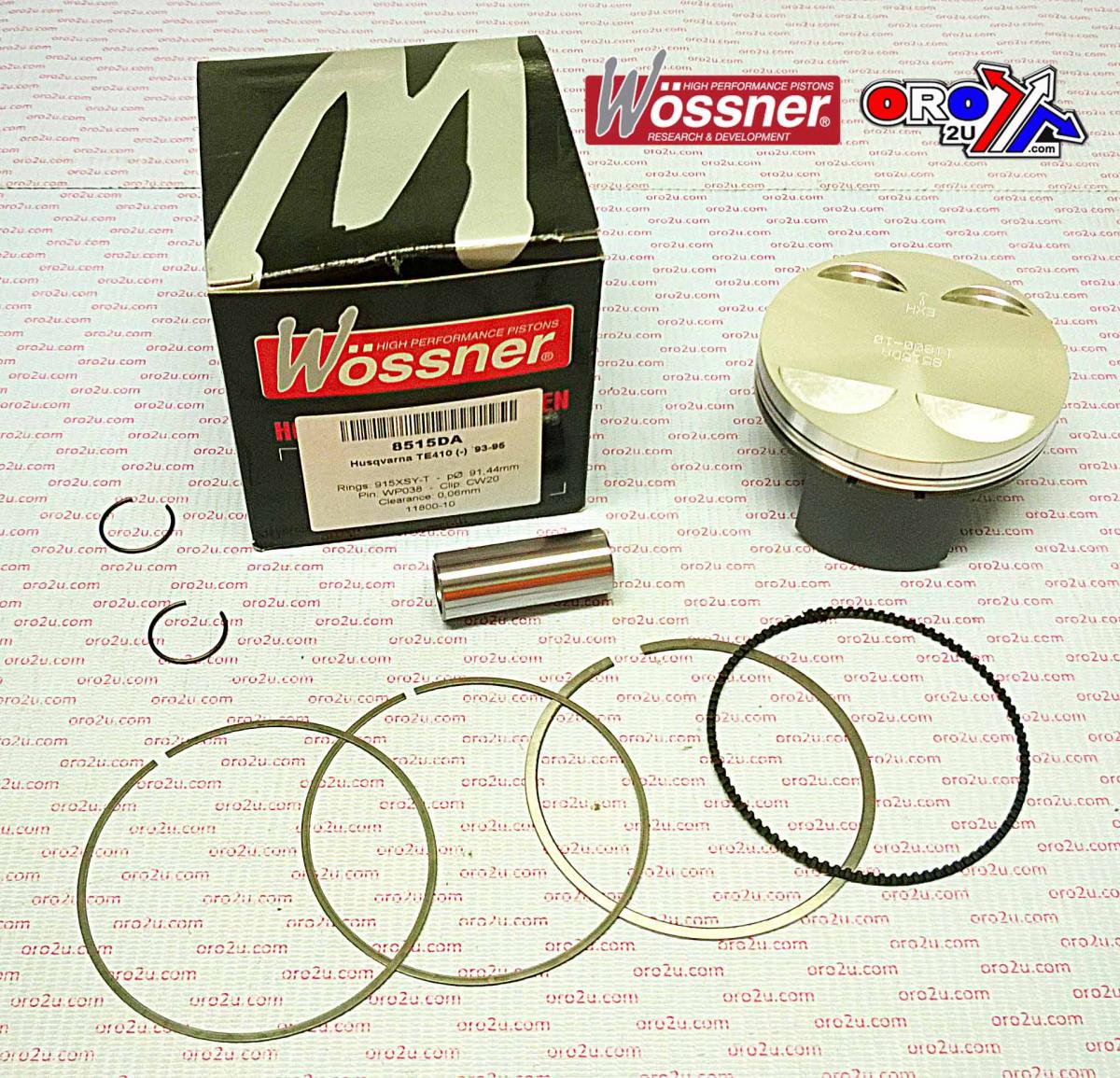

Wossner Forged Piston Kit for Husqvarna TE 410
Enhance the performance and longevity of your motorcycle with this Wossner forged piston kit. Engineered for precision and durability, this piston is designed to optimize combustion efficiency and ensure reliable operation.
Key Features:
- Superior Strength and Durability: Crafted from high-quality forged aluminum for exceptional strength.
- Optimized Heat Transfer: Features design elements that promote efficient heat dissipation, reducing hot spots and preventing component stress.
- Uniform Expansion: The elliptical design ensures even bearing surface contact, minimizing localized pressure and the risk of piston collapse.
- Precision Engineering: Manufactured to exact specifications for a perfect fit and consistent performance.
- German Quality: Proudly made in Germany, adhering to stringent quality control standards.
Specifications:
- Bore Size: 91.51mm (91.45mm)
- Oversize: 0.01mm
- Displacement: 399cc
- Stroke: 60.80mm
- Clearance: 0.06mm
- Compression Ratio: OEM (11.40:1)
- Dome Volume: -2.50cm³
- Compression Height: 29.50mm
- Lock Part Number: CW20
- Pin Part Number: WP038
- Ring Set Part Number: 915XSY
