PISTON KIT B 82MM HONDA CRF 250 10-17, ATHENA S5F08200002B 280CC BIG BORE, KIT B
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
ATHENA Forged Piston Ø 81.96 mm for Athena Big Bore Cylinder - S5F08200002B. This piston kit contains the piston, pin, circlips, and piston rings. The piston is made of a special high-performance aluminum alloy with high silicon content. Some pistons skirts are treated with a molybdenum disulfide coating to reduce friction. Piston rings are produced in Japan with wear-resistant coatings. Technical features: Big End Pin Diameter 16x10x44.5 mm, Bore Diameter 81.96 mm, Compression Height 19.00 mm, Compression Ratio 13.5:1, Displacement 284 cc, Net Weight 0.23 Kg, Number Of Segments 2, Piston Pin Type Standard, Piston Type Forged.
- SKU
- 56-K134.82_PIB
- Brand
- Athena
- Availability
- In Stock (1)
Fitments (14)
| Make | Model | Year |
|---|---|---|
| HONDA | CRF 230R | 2010 |
| HONDA | CRF 230R | 2011 |
| HONDA | CRF 230R | 2012 |
| HONDA | CRF 230R | 2013 |
| HONDA | CRF 250R | 2010 |
| HONDA | CRF 250R | 2011 |
| HONDA | CRF 250R | 2012 |
| HONDA | CRF 250R | 2013 |
| HONDA | CRF 250R | 2014 |
| HONDA | CRF 250R | 2015 |
| HONDA | CRF 250R | 2016 |
| HONDA | CRF 250R | 2017 |
| HONDA | CRF 250X | 2010 |
| HONDA | CRF 250X | 2011 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 252825
FULL DESCRIPTION
Athena Forged Piston Kit B 82mm for Honda CRF 250cc (2010-2017) - 284cc Big Bore
This high-performance forged piston kit from Athena is engineered to enhance the power and reliability of your Honda CRF 250cc. Designed for big bore applications, this kit provides a 284cc displacement with a 13.5:1 compression ratio, offering a significant upgrade for off-road enthusiasts.
Athena pistons are manufactured using advanced reverse extrusion and cutting-edge CNC machining tools, ensuring dimensional tolerances of less than 0.01 mm. Constructed from a special high-performance aluminum alloy with a high silicon content, these pistons offer superior resistance and excellent performance while maintaining the reliability of original equipment.
Some piston skirts feature a molybdenum disulfide coating applied by screen printing, which further reduces friction, enhancing both performance and durability. Each piston is rigorously tested on engine dynamometer benches and on track in extreme conditions to validate its performance and reliability.

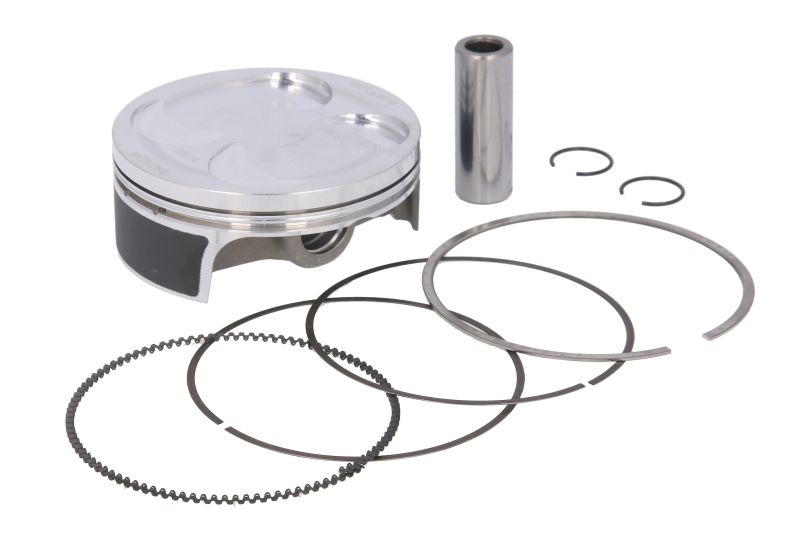

This comprehensive kit includes the forged piston, piston pin, circlips, and piston rings. The piston rings, produced in Japan with wear-resistant coatings like PVD or chromium nitride, are designed for reduced friction and increased durability, adapting perfectly to the cylinder liner even at low tangential loads.
Key Features:
- Forged piston construction for superior strength and durability.
- Special high-performance aluminum alloy with high silicon content.
- Precision CNC machining for tight tolerances.
- Molybdenum disulfide coating on select piston skirts to reduce friction.
- Includes piston, pin, circlips, and piston rings.
- High-quality piston rings with wear-resistant coatings for longevity.
- Engineered and tested by Athena R&D for optimal performance.
- Designed for Athena Big Bore Cylinder applications.
Technical Specifications:
- Big End Pin Diameter: 16x10x44.5 mm
- Bore Diameter: 81.96 mm
- Compression Height: 19.00 mm
- Compression Ratio: 13.5:1
- Displacement: 284 cc
- Net Weight: 0.23 Kg
- Number Of Segments (Rings): 2
- Piston Pin Type: Standard
- Piston Type: Forged
