PISTON KIT B 78MM KTM SX-F/XC-F 250 16-22, ATHENA S5F07800002B

Athena Forged Piston Kit - Enhance Your Off-Road Performance

Upgrade your motorcycle's engine with the Athena Forged Piston Kit, engineered for superior performance and durability in demanding off-road conditions. Crafted by Athena, a leader in motorcycle spare parts for over 40 years, this piston kit is manufactured using advanced reverse extrusion and cutting-edge CNC machining tools, ensuring exceptional dimensional accuracy.

Made from a special high-performance aluminum alloy with a high silicon content, these pistons offer reliability comparable to Original Equipment (OE) pistons while delivering enhanced resistance and performance. The perfectly smooth profile promotes optimal airflow and efficient flame propagation for improved combustion. Some piston skirts feature a molybdenum disulfide coating applied via screen printing, further reducing friction for increased performance and longevity.

Athena pistons are meticulously engineered in Italy and rigorously tested on engine dynamometer benches and on the track to validate their performance even under extreme stress. This piston kit includes the piston, pin, circlips, and piston rings, all designed for interchangeability and replacement.

The included piston rings are produced in Japan with wear-resistant coatings (PVD or chromium nitride) to maximize durability and maintain optimal cylinder liner contact, even at low tangential loads, leading to reduced friction and higher performance.

Key Features:

• Piston Type: Forged
• Bore Diameter: 77.97 mm
• Compression Height: 19.50 mm
• Compression Ratio: 14.4:1
• Displacement: 250 cc
• Number of Segments: 2
• Piston Pin Type: Standard
• Big End Pin Diameter: 16x9x38.2 mm

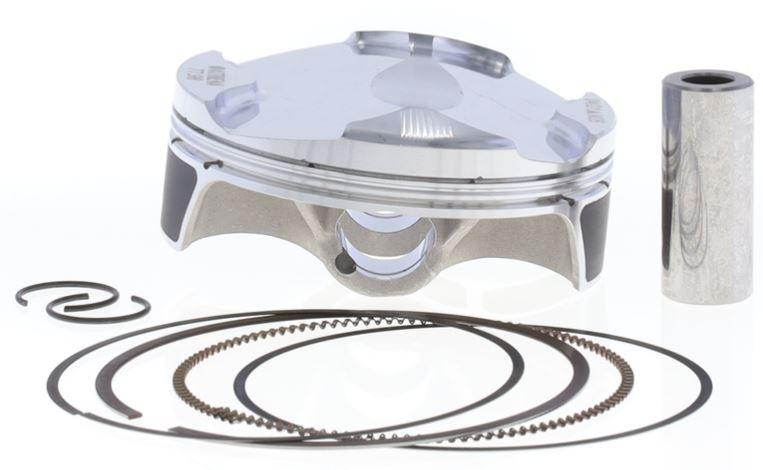

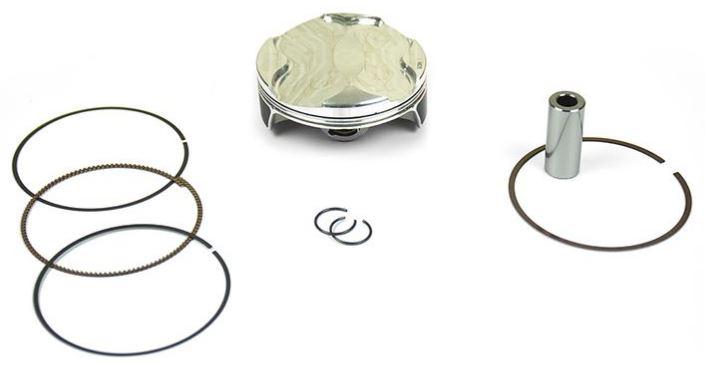

• Kit Includes: Piston, pin, circlips, and piston rings
• Material: High-performance aluminum alloy with high silicon content
• Coating: Some skirts feature a molybdenum disulfide coating for reduced friction
• Rings: Made in Japan with wear-resistant coatings (PVD or chromium nitride)
• Weight: 0.19 Kg (Net)

Please note: Products intended for competitive sports use or high-performance applications may have limited warranty coverage unless a clear defect is present. Athena assumes no responsibility for any use of the product contrary to national regulations.
