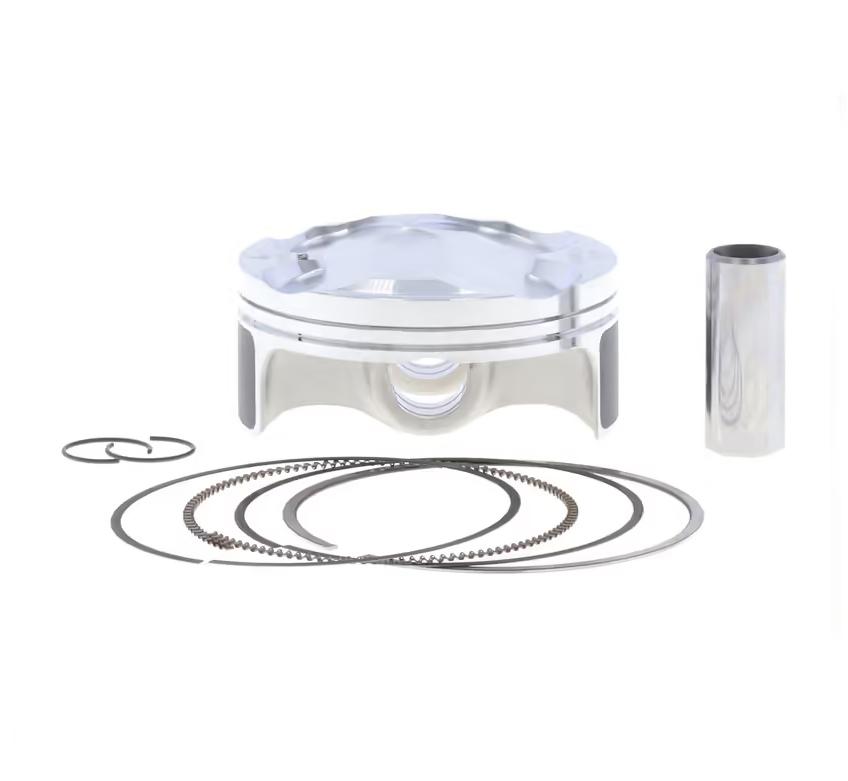

PISTON KIT B 77MM SUZUKI RM-Z 250 07-09, ATHENA S5F07700003B
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
ATHENA Forged Piston Kit B 77mm. Bore Diameter: 76.96 mm. Compression Height: 19.70 mm. Compression Ratio: 13.4:1. Displacement: 250 cc. Big End Pin Diameter: 16x9x40.1 mm. Piston Pin Type: Biconical. Number Of Segments: 2. Net Weight: 0.18 Kg. Includes piston, pin, circlips, and piston rings. Piston rings are produced in Japan with wear-resistant coatings.
- SKU
- 56-W4921.B.ATH
- Brand
- Athena
- Availability
- In Stock (1)
Fitments (3)
| Make | Model | Year |
|---|---|---|
| SUZUKI | RM-Z 250 | 2007 |
| SUZUKI | RM-Z 250 | 2008 |
| SUZUKI | RM-Z 250 | 2009 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 77mm
- Variant Id
- 289764
FULL DESCRIPTION
Athena Forged Piston Kit B - 77mm Bore
Experience enhanced performance and reliability with the Athena Forged Piston Kit. Crafted using advanced reverse extrusion and cutting-edge CNC machining, these pistons achieve dimensional tolerances of less than 0.01 mm. Made from a special high-performance aluminum alloy with a high silicon content, they offer exceptional durability and performance comparable to original equipment (OE) pistons. The smooth piston profile promotes regular airflow and efficient flame propagation.
Select Athena pistons feature a molybdenum disulfide coating applied via screen printing to further reduce friction, boosting performance and longevity. Each piston is engineered in Italy by the Athena R&D department, rigorously tested on engine dynamometer benches and on track in extreme conditions to ensure the highest quality and reliability.
This piston kit includes the piston, pin, circlips, and piston rings. The piston rings are produced in Japan with wear-resistant coatings (PVD or chromium nitride) for increased retention and durability, ensuring a perfect seal against the cylinder liner even at low tangential loads. All components are replaceable and interchangeable.
Technical Specifications:
- Bore Diameter: 76.96 mm
- Compression Height: 19.70 mm
- Compression Ratio: 13.4:1
- Displacement: 250 cc
- Number of Piston Rings: 2
- Piston Type: Forged
- Piston Pin Type: Biconical
- Big End Pin Diameter: 16x9x40.1 mm
- Net Weight: 0.18 Kg
Note: Products designed for increased displacement and power beyond road code regulations are intended for competitive use only. Athena is not responsible for any use contrary to national regulations. Guarantee of compliance may not apply to products used in competitive sports, high-performance, or high-speed applications unless there is a clear manufacturing defect.
