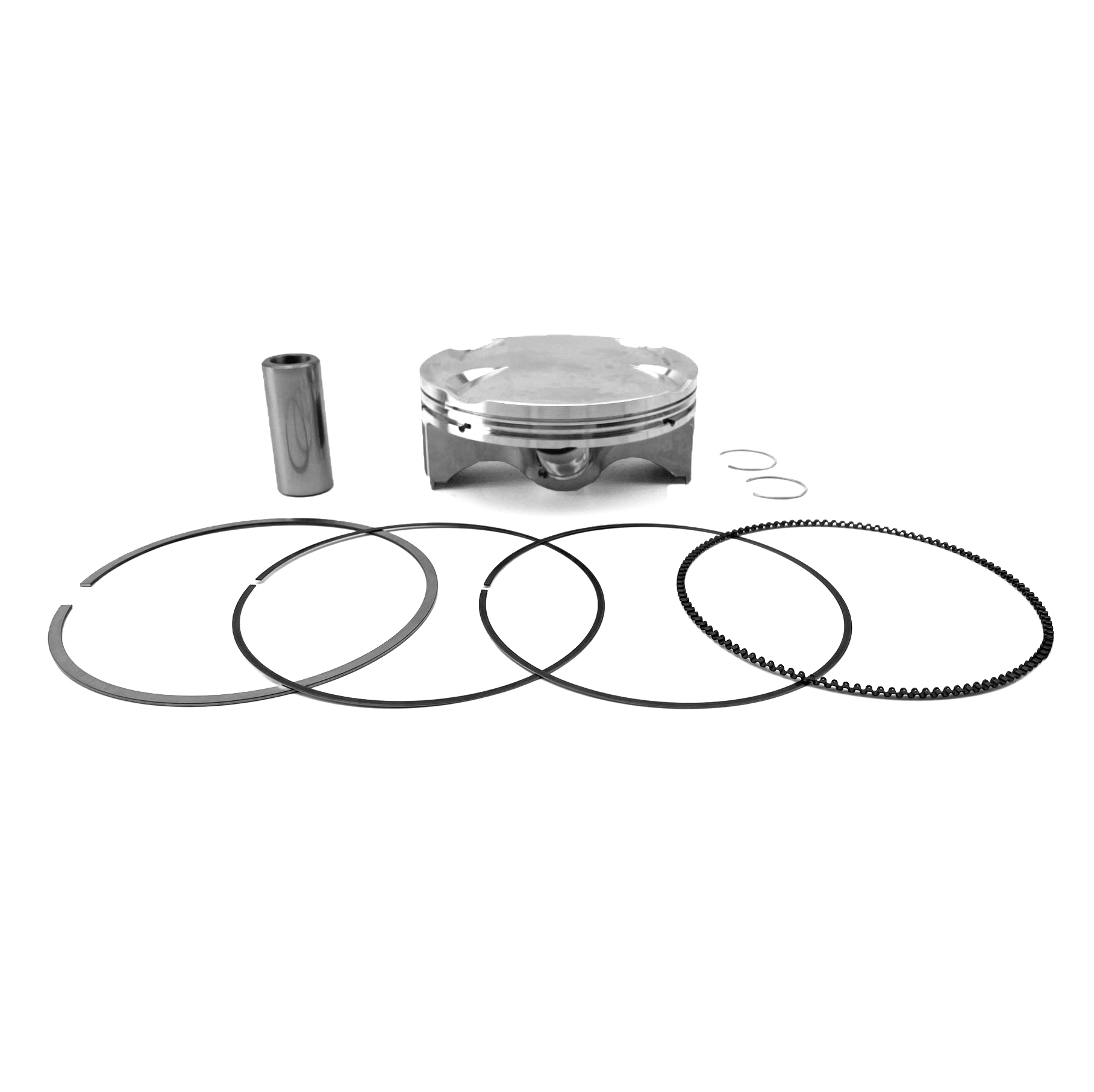

PISTON KIT A 96MM SUZUKI RM-Z 450 13-22, ATHENA S4F09600019A STD BORE, KIT A

Athena Forged Piston Kit - Standard Bore

Enhance your motorcycle's performance and reliability with the Athena Forged Piston Kit. Designed for precision and durability, this kit features a piston crafted from a special high-performance aluminum alloy with a high silicon content. This advanced material ensures exceptional resistance and performance while maintaining the reliability expected from original equipment.

Manufactured using cutting-edge CNC machining tools, Athena pistons achieve dimensional tolerances of less than 0.01 mm. The perfectly smooth profile promotes regular flow and ideal flame propagation. Some piston skirts are further enhanced with a molybdenum disulfide coating applied by screen printing, reducing friction to boost performance and longevity.

Engineered in Italy, each Athena piston undergoes rigorous testing on dynamometer benches and on the track to validate its performance in extreme conditions. This piston kit includes the piston, pin, circlips, and piston rings, all of which are replaceable and interchangeable.

The included piston rings are produced in Japan with wear-resistant coatings, increasing retention and durability. These rings adapt precisely to the cylinder liner even at low tangential loads, minimizing friction and maximizing performance.

Key Features:

• Forged piston for superior strength and performance
• Special high-performance aluminum alloy with high silicon content
• Precision CNC machining for tight tolerances
• Smooth profile for optimal flow and flame propagation
• Optional molybdenum disulfide coating on some models to reduce friction
• Piston rings made in Japan with wear-resistant coatings
• Includes piston, pin, circlips, and piston rings
• Bore Diameter: 95.96 mm
• Compression Ratio: 12.5:1
• Number Of Segments: 3
• Piston Pin Type: Biconical
• Big End Pin Diameter: 19x10x45 mm
• Net Weight: 0.34 Kg
