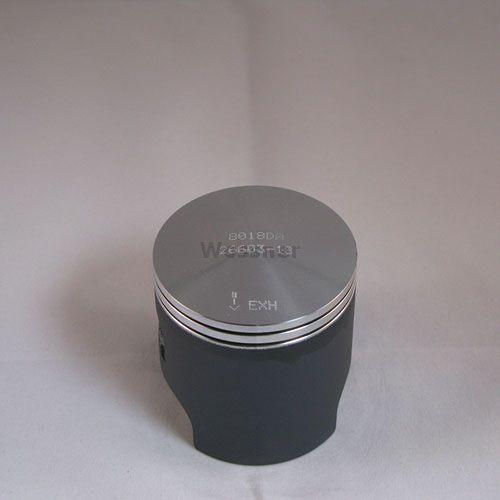

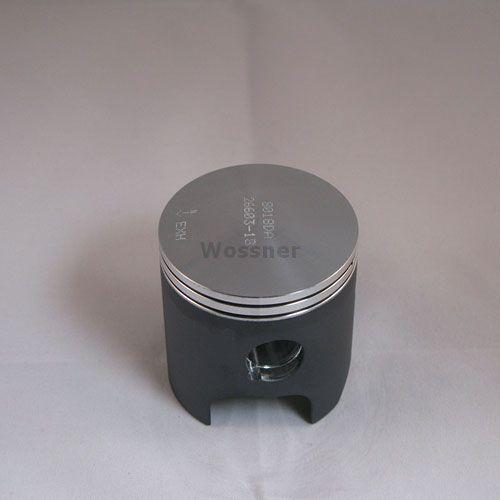

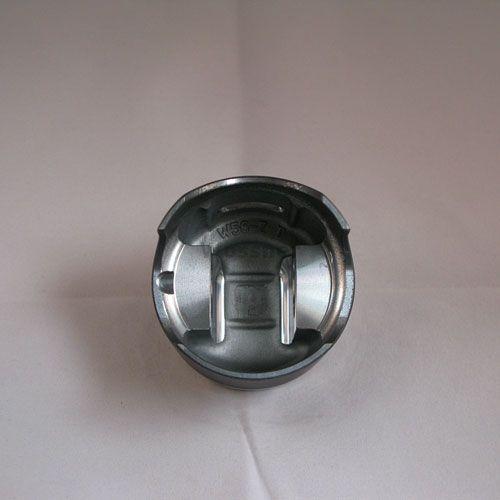

PISTON KIT 99-12 125 MITO 56, CAGIVA WOSSNER 8018DC

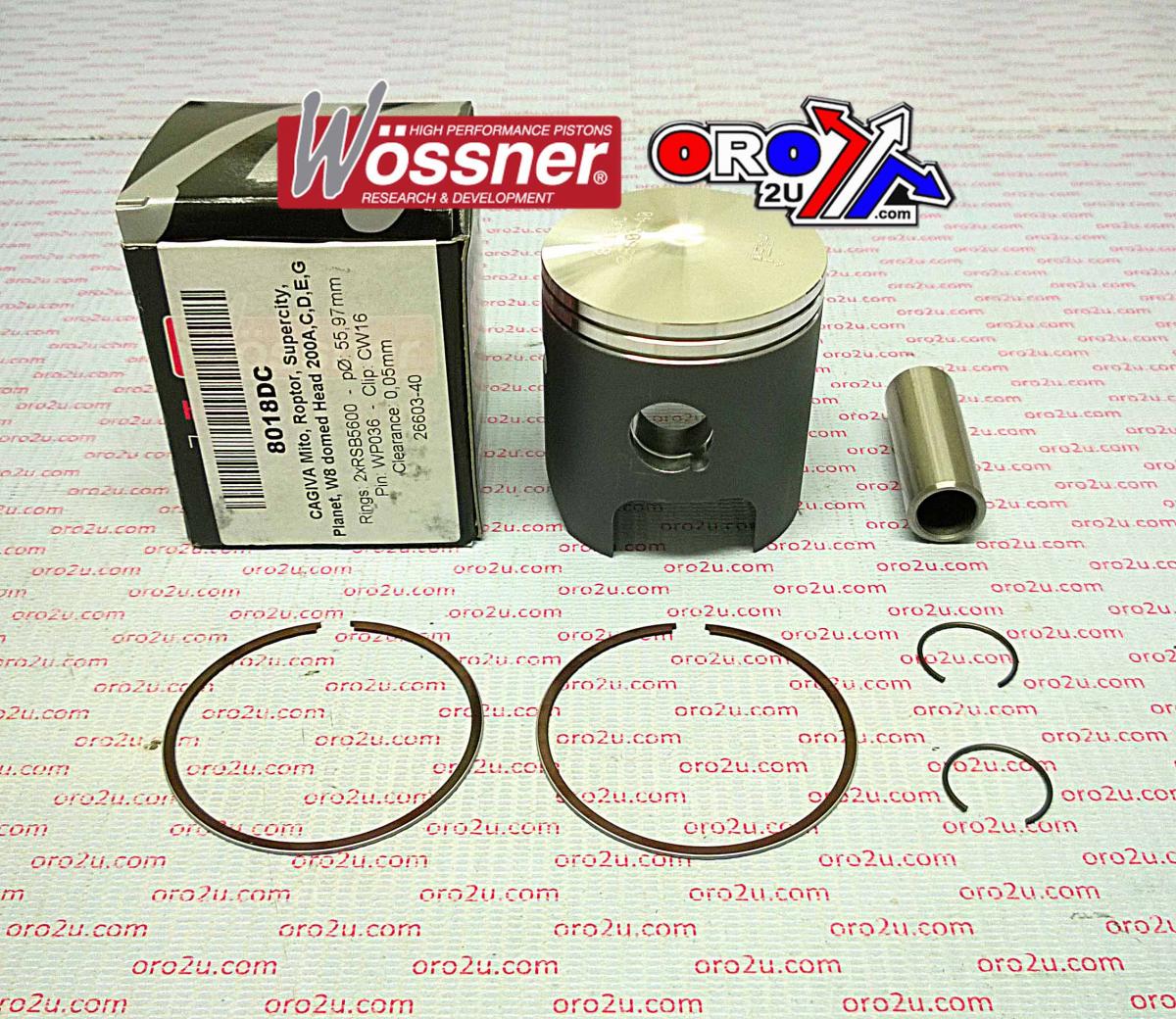

This Wossner forged piston kit has a 56.02mm bore size (55.97mm actual) and is a +0.02mm oversize. Manufactured in Germany, its forged construction ensures high strength and reliability. The piston's elliptical design promotes even load distribution and prevents collapse by reducing localised stress. It offers efficient thermal conductivity from the combustion chamber to the cylinder. Specifications include a 124 cm³ displacement, 50.60 mm stroke, 0.05 mm clearance, 25.00 mm compression height, and a domed dome volume. The kit includes lock part number CW16, pin part number WP036, and two ring sets with part number RSB5600.
- SKU
- 56-W941.C
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit - Enhanced Performance and Durability
This Wossner forged piston kit is engineered for optimal performance and longevity. Manufactured in Germany, it features a precise bore size of 56.02mm (actual 55.97mm), offering a +0.02mm oversize fitment. The advanced forged construction maximizes heat transfer from the combustion chamber to the cylinder, ensuring efficient cooling and maintaining structural integrity under extreme thermal expansion. Its innovative elliptical design reduces localized stress and promotes even load distribution, preventing premature wear and enhancing reliability.
Key Features:
- Forged construction for superior strength and consistent performance.
- Elliptical piston design for balanced thrust load distribution and reduced stress.
- High thermal conductivity for efficient heat management.
- Precision manufacturing in Germany ensures exceptional quality.
Specifications:
- Bore Size: 56.02mm (actual 55.97mm)
- Displacement: 124 cm³
- Stroke: 50.60 mm
- Clearance: 0.05 mm
- Compression Ratio (Wossner): 2-stroke
- Compression Ratio (OEM): 2-stroke
- Dome Volume: Domed
- Compression Height: 25.00 mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: 2 x RSB5600
Cross-Reference OEM Part Numbers:
- 56-W941.C
