PISTON KIT 99-06 TXT200 GASGAS, FORGED WOSSNER 8132DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 64.01mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision. Features a forged piston for superior strength and design, optimized heat transfer to cylinder walls, and an elliptical design for uniform bearing surface and even thrust load distribution. Specifications include a 64.01mm bore (+0.01mm oversize), standard size piston (PN# 8132DB), lock part number CW16, pin part number WP027, ring set part number RSB6400 x2, 175 cm³ displacement, 54.50mm stroke, 0.05mm clearance, 2-stroke compression ratio for both Wossner and OEM, and 30.00mm compression height.
- SKU
- 56-W167.B.WO
- Brand
- Wossner
- Availability
- In Stock (3)
Fitments (8)
| Make | Model | Year |
|---|---|---|
| GAS-GAS | TXT 200 | 1999 |
| GAS-GAS | TXT 200 | 2000 |
| GAS-GAS | TXT 200 | 2001 |
| GAS-GAS | TXT 200 | 2002 |
| GAS-GAS | TXT 200 | 2003 |
| GAS-GAS | TXT 200 | 2004 |
| GAS-GAS | TXT 200 | 2005 |
| GAS-GAS | TXT 200 | 2006 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- Variant Id
- 254822
FULL DESCRIPTION

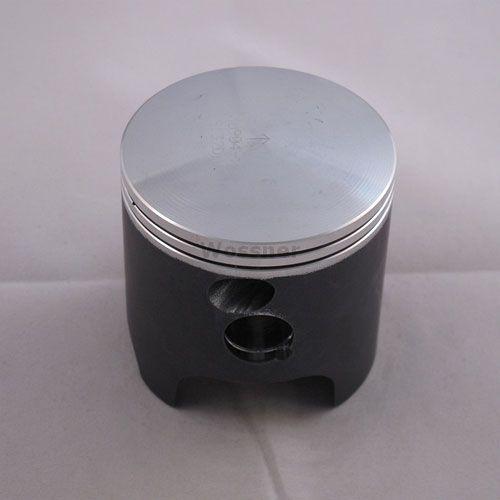

Wossner Forged Piston Kit - 64.01mm Bore
Experience enhanced performance and durability with this Wossner forged piston kit, precisely engineered for optimal operation. This kit features a 64.01mm bore and is designed to promote superior combustion chamber heat transfer and ensure a uniform bearing surface under thermal expansion. This design significantly reduces localized pressure points and mitigates the risk of piston collapse, leading to a more reliable and powerful engine.
Manufactured in Germany, Wossner pistons are recognized for their exceptional quality and precision engineering. This forged piston offers increased strength and a refined design compared to cast alternatives.
Key Features:
- Forged piston construction for exceptional strength and durability.
- Engineered for optimized heat transfer to cylinder walls, promoting efficient cooling.
- Features an elliptical design that provides a uniform bearing surface and even thrust load distribution, reducing wear.
- Precision manufactured in Germany.
Specifications:
- Bore Size: 64.01mm (0.01mm oversize)
- Standard Size Piston Part Number: 8132DB
- Lock Ring Part Number: CW16
- Piston Pin Part Number: WP027
- Ring Set Part Number: RSB6400 (x2)
- Engine Displacement: 175 cm³
- Stroke Length: 54.50mm
- Piston Clearance: 0.05mm
- Compression Height: 30.00mm
