PISTON KIT 98-02 KTM380 78.00, WOSSNER 8223DA FORGED

£190.44Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

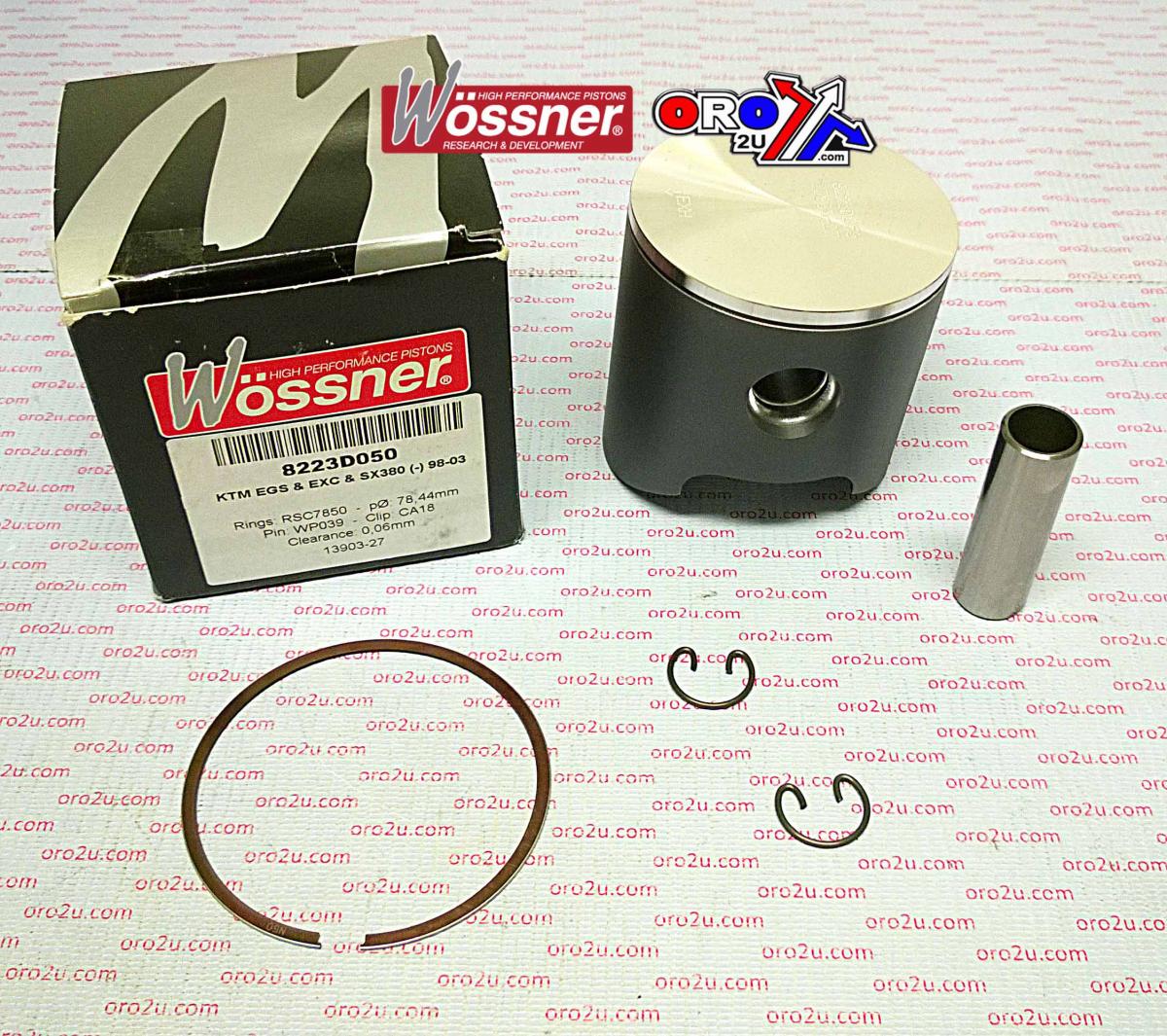

Wossner forged piston kit with a 78.00mm bore (actual size 77.94mm) for KTM 380 models from 1998 to 2002. Forged in Germany, this piston ensures maximum strength, durability, and effective thermal performance. Features include forged construction, optimal heat transfer design, elliptical profile for uniform bearing surface, and precision engineering. Specifications: Bore size 78.00 mm, actual piston size 77.94 mm, display (cm³) 368, stroke (mm) 77.00, clearance (mm) 0.06, compression ratio 2-stroke (Wossner and OEM), and compression height (mm) 27.00. Included components: Piston Wossner PN# 8223DA, Lock PN# CA18, Pin PN# WP039, and Ring Set PN# RSC7800. Weight 382 grams.

Specifications
SKU
56-W748+00A.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (5)

MakeModelYear
KTM380 EGS1998
KTM380 EGS1999
KTM380 EGS2000
KTM380 EGS2001
KTM380 EGS2002
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
78.00mm
Variant Id
257636
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit - 78.00mm Bore

This Wossner piston kit features a 78.00mm bore size with an actual piston measurement of 77.94mm. Engineered for high-performance applications, this forged piston ensures superior strength, durability, and efficient thermal management in demanding engine environments. Precision manufactured in Germany, it is designed to meet the rigorous requirements of racing and performance riding.

Key Features:

  • Forged piston construction offers maximum strength and longevity.
  • Designed for optimal heat transfer from the combustion chamber to the cylinder walls, enhancing thermal performance.
  • Features an elliptical profile for uniform bearing surface, which minimizes stress and reduces the risk of piston collapse.
  • Precision engineered and manufactured in Germany to exacting standards.

Specifications:

  • Bore Size: 78.00 mm
  • Actual Piston Size: 77.94 mm
  • Displacement (cm³): 368
  • Stroke (mm): 77.00
  • Clearance (mm): 0.06
  • Compression Ratio: 2-stroke (Wossner and OEM)
  • Compression Height (mm): 27.00

Included Components:

  • Piston: Wossner PN# 8223DA
  • Lock: PN# CA18
  • Pin: PN# WP039
  • Ring Set: PN# RSC7800
