PISTON KIT 97MM HONDA TRX450 04-05, ATHENA S4F09700010A 480CC BIG BORE

£223.70Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

ATHENA Forged Racing Piston Ø 96.94 mm for Athena Big Bore Cylinder - S4F09700010A. This piston is made from a special high-performance aluminum alloy with high silicon content. It is produced with cutting-edge CNC machining tools, ensuring dimensional tolerances of less than 0.01 mm. Some pistons have a molybdenum disulfide coating on the skirts, applied by screen printing, to reduce friction and enhance performance and durability. The piston kit includes the piston, pin, circlips, and piston rings. The rings are produced in Japan with wear-resistant coatings. Technical features: Big End Pin Diameter (mm) 21x13.5x51, Bore Diameter (mm) 96.94, Compression Height (mm) 26.00, Compression Ratio STD, Displacement (cc) 450, Net Weight (Kg) 0.44, Number Of Segments 3, Piston Pin Type Biconical, Piston Type Forged. Part No. 56-K105.97.PIA.

Specifications
SKU
56-K105.97.PIA
Brand
Athena
Availability
In Stock (1)

Fitments (4)

MakeModelYear
HONDATRX 450R2004
HONDATRX 450R2005
HONDATRX R 4502004
HONDATRX R 4502005
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
97mm
Variant Id
252621
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Athena 97mm Forged Racing Piston Kit

Enhance the performance and reliability of your engine with this Athena Forged Racing Piston Kit. Crafted with precision and designed for high performance, this kit is engineered to meet or exceed original equipment (OE) standards.

Athena, a leader in motorcycle spare parts for over 40 years, utilizes advanced CNC machining tools to ensure exceptional dimensional tolerances of less than 0.01 mm. The pistons are constructed from a specialized high-performance aluminum alloy with a high silicon content, offering superior resistance and excellent performance compared to standard pistons.

The smooth piston profile promotes optimal airflow and efficient flame propagation. Some piston skirts feature a molybdenum disulfide coating applied via screen printing, further reducing friction to boost performance and durability. Each piston is meticulously engineered in Italy by Athena's R&D department and undergoes rigorous testing on engine dynamometer benches and on the track to validate its performance under extreme conditions.

This piston kit is specifically designed for use with Athena Big Bore cylinder kits and includes piston rings that minimize friction with the cylinder, leading to higher performance. The piston rings are produced in Japan with wear-resistant coatings, such as PVD or chromium nitride, to increase lifespan and durability. These rings are designed to adapt perfectly to the cylinder liner, even under low tangential load.

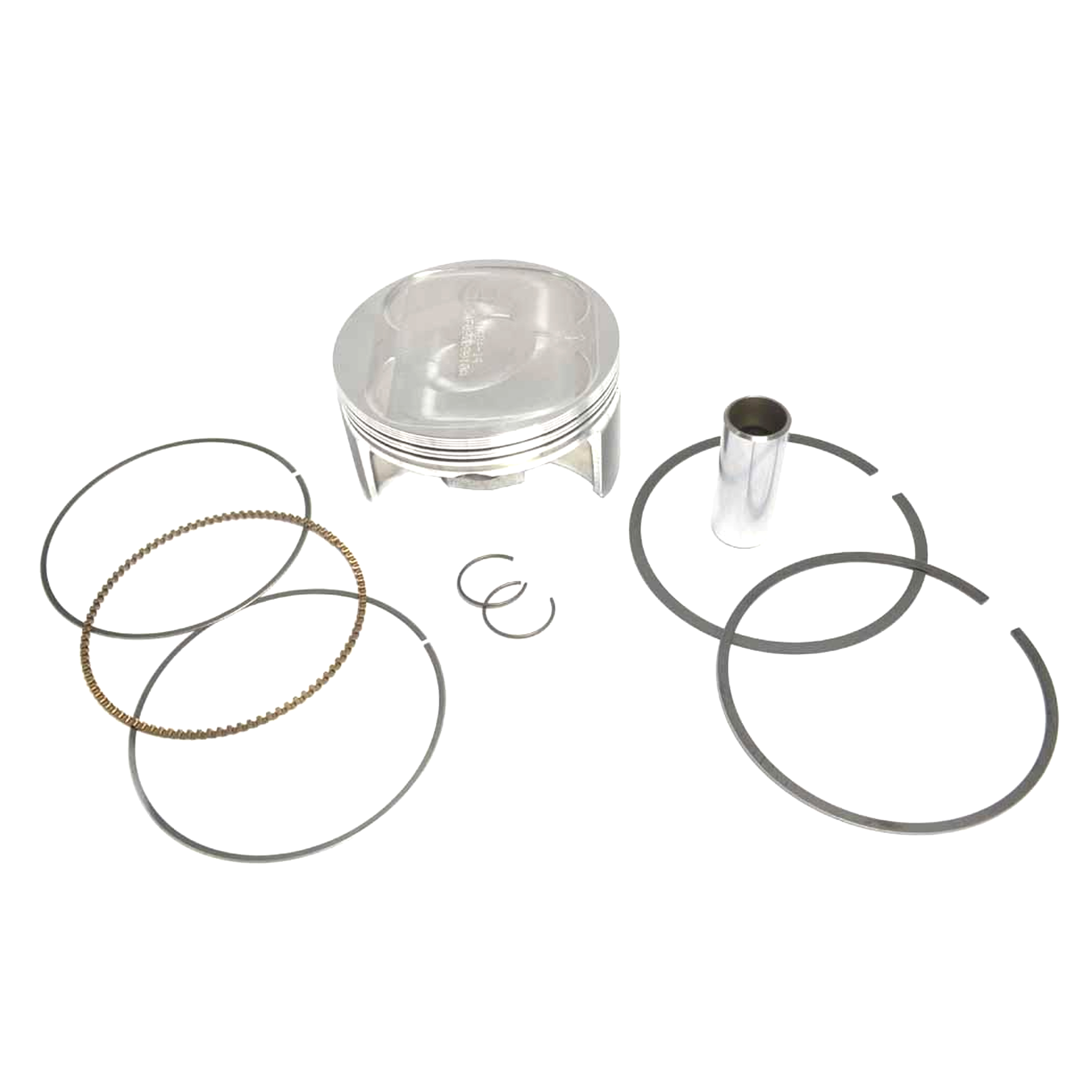

This kit contains all necessary components for installation:

  • Piston
  • Piston Pin
  • Circlips
  • Piston Rings

All components are replaceable and interchangeable for convenient servicing.

Technical Specifications:

  • Piston Type: Forged
  • Bore Diameter: 96.94 mm
  • Big End Pin Diameter: 21x13.5x51 mm
  • Compression Height: 26.00 mm
  • Piston Pin Type: Biconical
  • Number Of Segments (Rings): 3
  • Compression Ratio: STD
  • Displacement: 450 cc
  • Net Weight: 0.44 Kg

Note: Products designed for displacements and power exceeding road code regulations are intended exclusively for competitive use. Athena disclaims responsibility for any use contrary to national regulations.
