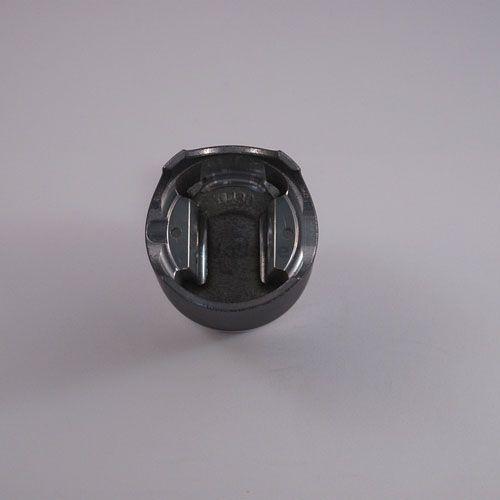

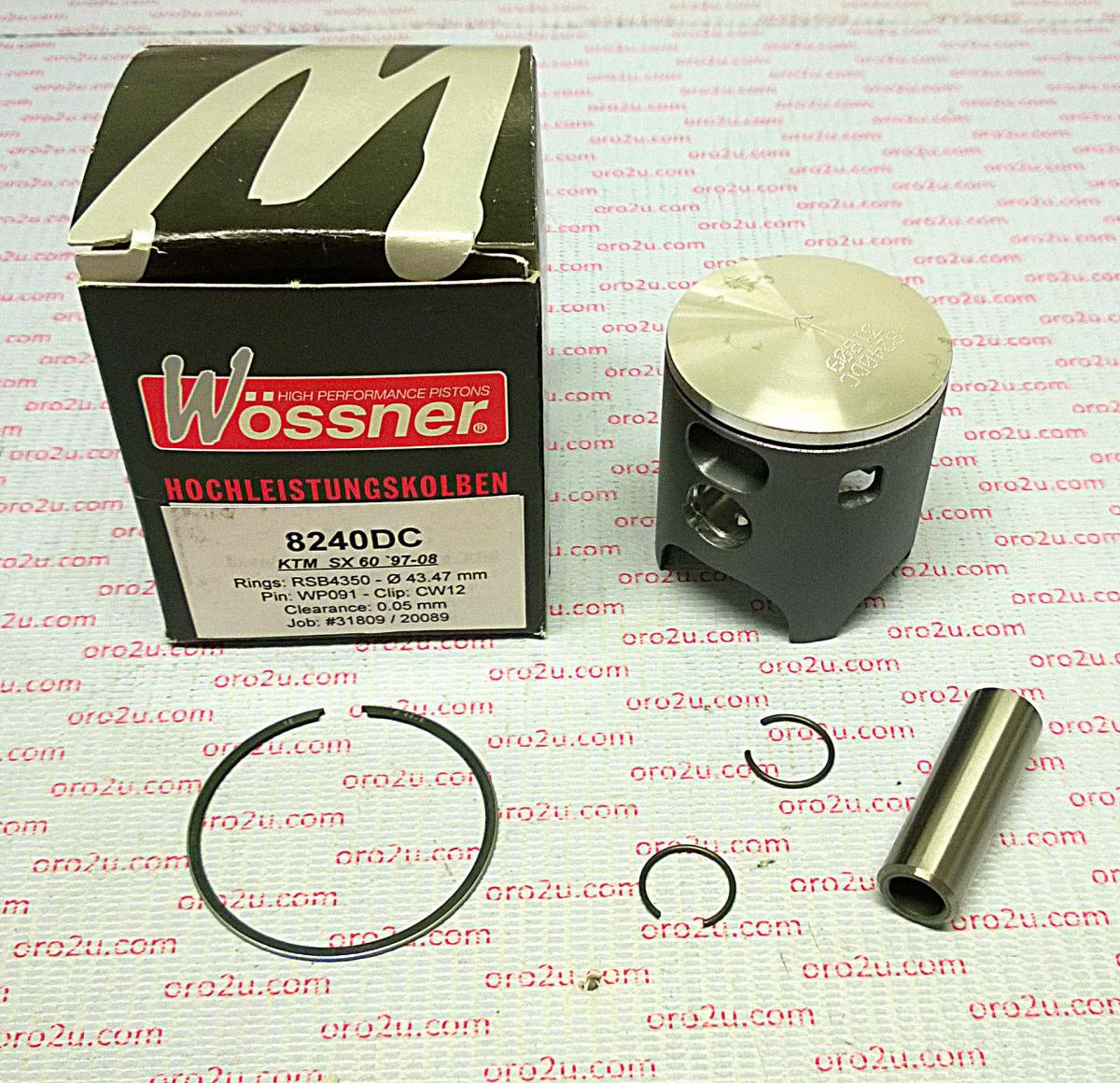

PISTON KIT 97-09 KTM60 SX 43.5, FORGED WOSSNER 8240DC

£77.34Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner forged piston kit with a 43.52mm bore (43.47mm) for models from 1997 to 2009. Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany. Features forged piston for increased strength and durability, optimized heat transfer for improved performance, elliptical design ensures uniform bearing surface under heat expansion, and even thrust load distribution to prevent piston collapse. Specifications include a bore size of 43.52mm (43.47mm), part number 8240DC, lock part number CW12, pin part number WP091, ring set part number RSB4350, displacement of 60 cm³, stroke of 40.00mm, clearance of 0.05mm, compression ratio of 2-stroke, and compression height of 21.60mm.

Specifications
SKU
56-W312.C.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (3)

MakeModelYear
KTM60 SX1997
KTM60 SX1998
KTM60 SX1999
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
43.5mm
Variant Id
255387
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit - 43.52mm Bore

Enhance your engine's performance and durability with this Wossner forged piston kit. Engineered for precision and strength, this piston kit is designed to meet the demands of high-performance riding.

Key Features:

  • Forged Construction: Provides superior strength and resistance to wear compared to cast pistons, ensuring longevity and reliability.
  • Optimized Heat Transfer: The design promotes efficient heat dissipation, crucial for maintaining optimal combustion temperatures and preventing engine damage.
  • Elliptical Piston Design: This innovative shape ensures a uniform bearing surface under thermal expansion, reducing stress and preventing piston collapse.
  • Even Thrust Load Distribution: Minimizes localized pressure on cylinder walls, contributing to a smoother operation and extended engine life.
  • German Manufacturing: Crafted with precision and quality in Germany, adhering to high manufacturing standards.

Specifications:

  • Bore Size: 43.52mm (nominal)
  • Piston Diameter: 43.47mm
  • Part Number: 8240DC
  • Lock Part Number: CW12
  • Pin Part Number: WP091
  • Ring Set Part Number: RSB4350
  • Stroke: 40.00mm
  • Clearance: 0.05mm
  • Compression Ratio: Designed for 2-stroke engines
  • Compression Height: 21.60mm
