PISTON KIT 96MM KAWASAKI KX 250 09-18, ATHENA S4F09600017A STD BORE
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
ATHENA Forged Racing Piston Ø 95.96 mm for Athena and OE cylinders. Produced with cutting-edge CNC machining tools, Athena pistons are made of a special high-performance aluminum alloy with high silicon content for reliability, resistance, and excellent performance. Some pistons feature a molybdenum disulfide coating to reduce friction and enhance performance and durability. The piston rings are produced in Japan with wear-resistant coatings for increased durability. This piston kit contains the piston, pin, circlips, and piston rings. Technical features: Bore Diameter 95.96 mm, Compression Ratio 12.5:1, Displacement 450 cc, Number Of Segments 2, Piston Pin Type Biconical, Piston Type Forged. Part No. S4F09600017A.
- SKU
- 56-K237.96.PIA
- Brand
- Athena
- Availability
- In Stock (1)
Fitments (30)
| Make | Model | Year |
|---|---|---|
| HONDA | CRF 450R | 2009 |
| HONDA | CRF 450R | 2010 |
| HONDA | CRF 450R | 2011 |
| HONDA | CRF 450R | 2012 |
| HONDA | CRF 450R | 2013 |
| HONDA | CRF 450R | 2014 |
| HONDA | CRF 450R | 2015 |
| HONDA | CRF 450R | 2016 |
| KAWASAKI | KX 450F | 2009 |
| KAWASAKI | KX 450F | 2010 |
| KAWASAKI | KX 450F | 2011 |
| KAWASAKI | KX 450F | 2012 |
| KAWASAKI | KX 450F | 2013 |
| KAWASAKI | KX 450F | 2014 |
| KAWASAKI | KX 450F | 2015 |
| KAWASAKI | KX 450F | 2016 |
| KAWASAKI | KX 450F | 2017 |
| KAWASAKI | KX 450F | 2018 |
| SUZUKI | RM-Z 450 | 2008 |
| SUZUKI | RM-Z 450 | 2009 |
| SUZUKI | RM-Z 450 | 2010 |
| SUZUKI | RM-Z 450 | 2011 |
| SUZUKI | RM-Z 450 | 2012 |
| SUZUKI | RM-Z 450 | 2013 |
| SUZUKI | RM-Z 450 | 2014 |
| SUZUKI | RM-Z 450 | 2015 |
| SUZUKI | RM-Z 450 | 2016 |
| SUZUKI | RM-Z 450 | 2017 |
| SUZUKI | RM-Z 450 | 2018 |
| SUZUKI | RM-Z 450 | 2019 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 96mm
- Variant Id
- 285192
FULL DESCRIPTION
Athena Forged Racing Piston Kit
This Athena forged racing piston kit is engineered for high performance and reliability. Manufactured using cutting-edge CNC machining, these pistons achieve dimensional tolerances of less than 0.01 mm. Constructed from a special high-performance aluminum alloy with a high silicon content, they offer enhanced resistance and excellent performance while maintaining OE-level reliability.
The piston's smooth profile promotes regular flow and perfect flame propagation. Some piston skirts feature a molybdenum disulfide coating applied by screen printing to further reduce friction, boosting performance and durability. Athena engineers ensure advanced technical solutions and quality standards that meet or exceed OE production.
Each piston is rigorously tested on engine dynamometer benches and on the track to validate performance in extreme conditions. The included piston rings, produced in Japan with wear-resistant coatings (PVD or chromium nitride), minimize friction with the cylinder, leading to higher performance and increased durability. The rings adapt perfectly to the cylinder liner even at low tangential load.

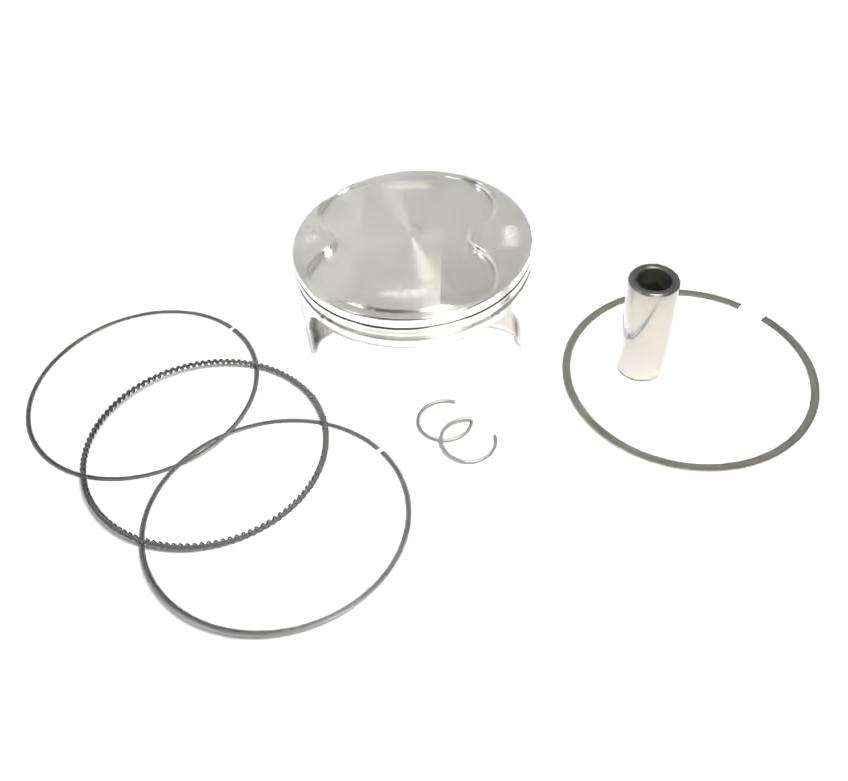

This complete piston kit includes the piston, pin, circlips, and piston rings. All components are replaceable and interchangeable.
Key Features:
- Piston Type: Forged
- Bore Diameter: 95.96 mm
- Compression Ratio: 12.5:1
- Number Of Segments: 2
- Piston Pin Type: Biconical
- Big End Pin Diameter: 19x10x45 mm
- Displacement: 450 cc
- Net Weight: 0.36 Kg
- Piston Rings: Wear-resistant coatings (PVD or chromium nitride)
- Kit Contents: Piston, pin, circlips, and piston rings
