2Bros Parts

PISTON KIT 96-03 KTM300 72.00, WOSSNER 8017DA FORGED 54630307400

£179.68

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner forged piston kit 8017DA for 2-stroke engines. Bore size 72.00 mm, actual piston diameter 71.93 mm. Features forged construction for durability and mechanical reliability, elliptical design for uniform surface pressure, and optimized heat dissipation. Manufactured in Germany. Specifications include a 72.00 mm stroke, 297 cm³ displacement, 0.07 mm clearance, 2-stroke compression ratio, and 26.70 mm compression height. Cross-references OEM part number 54630307400. Includes lock CW18, pin WP033, ring set RSB7200 (x2), and rod P2024.

Specifications
SKU
56-W712+00A.WO
Brand
Wossner
Availability
In Stock (2)

Fitments (8)

MakeModelYear
KTM300 EGS1996
KTM300 EGS1997
KTM300 EGS1998
KTM300 EGS1999
KTM300 EGS2000
KTM300 EGS2001
KTM300 EGS2002
KTM300 EGS2003
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
72.00mm
Variant Id
257524
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

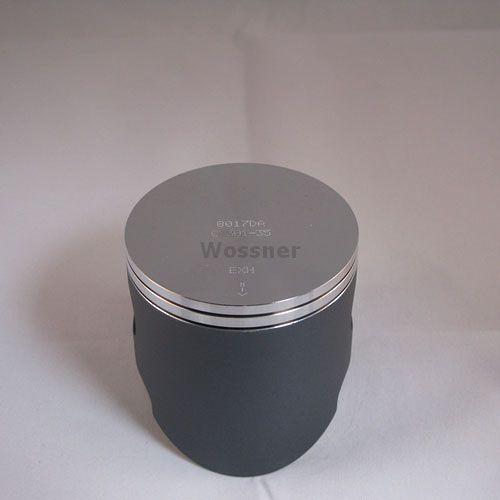

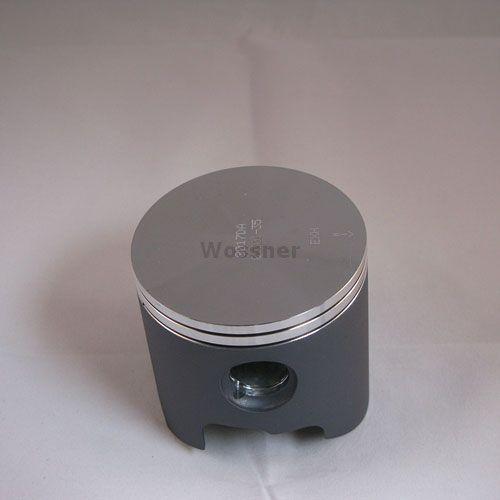

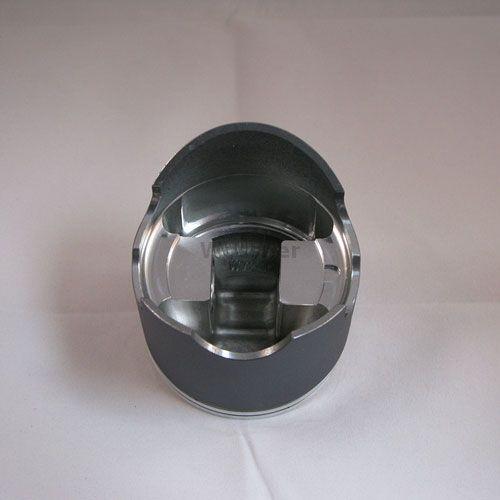

Wossner Forged Piston Kit 8017DA for 2-Stroke Engines

The Wossner 8017DA is a high-performance forged piston kit engineered for 2-stroke engines. This standard size (STD) piston features a 72.00 mm bore and an actual piston diameter of 71.93 mm. Precision manufactured in Germany, this piston is designed to offer exceptional strength, optimal heat transfer, and superior mechanical efficiency for demanding applications.

The forged construction significantly enhances durability and mechanical reliability, ensuring longevity even under high stress. Its unique elliptical profile promotes uniform surface pressure during the engine's expansion cycle, contributing to smoother operation and reduced wear. Furthermore, the design is optimized for efficient heat dissipation from the combustion chamber directly to the cylinder wall, helping to maintain optimal operating temperatures.

Key Features:

  • Forged construction for enhanced durability and mechanical reliability.
  • Elliptical design ensures uniform surface pressure during expansion.
  • Optimized heat dissipation from combustion chamber to cylinder wall.
  • Precision-manufactured in Germany.

Specifications:

  • Bore Size: 72.00 mm
  • Actual Piston Diameter: 71.93 mm
  • Displacement: 297 cm³
  • Stroke: 72.00 mm
  • Clearance: 0.07 mm
  • Compression Ratio: 2-stroke (Wossner and OEM)
  • Compression Height: 26.70 mm

Cross-Reference OEM Part Numbers:

  • 54630307400
  • 09104710
  • 712M07200

Included Components:

  • Piston Kit: 8017DA
  • Lock: CW18
  • Pin: WP033
  • Ring Set: RSB7200 (x2)
  • Rod: P2024
