PISTON KIT 93-97 TZR125 57.50, FORGED WOSSNER 8006D150
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

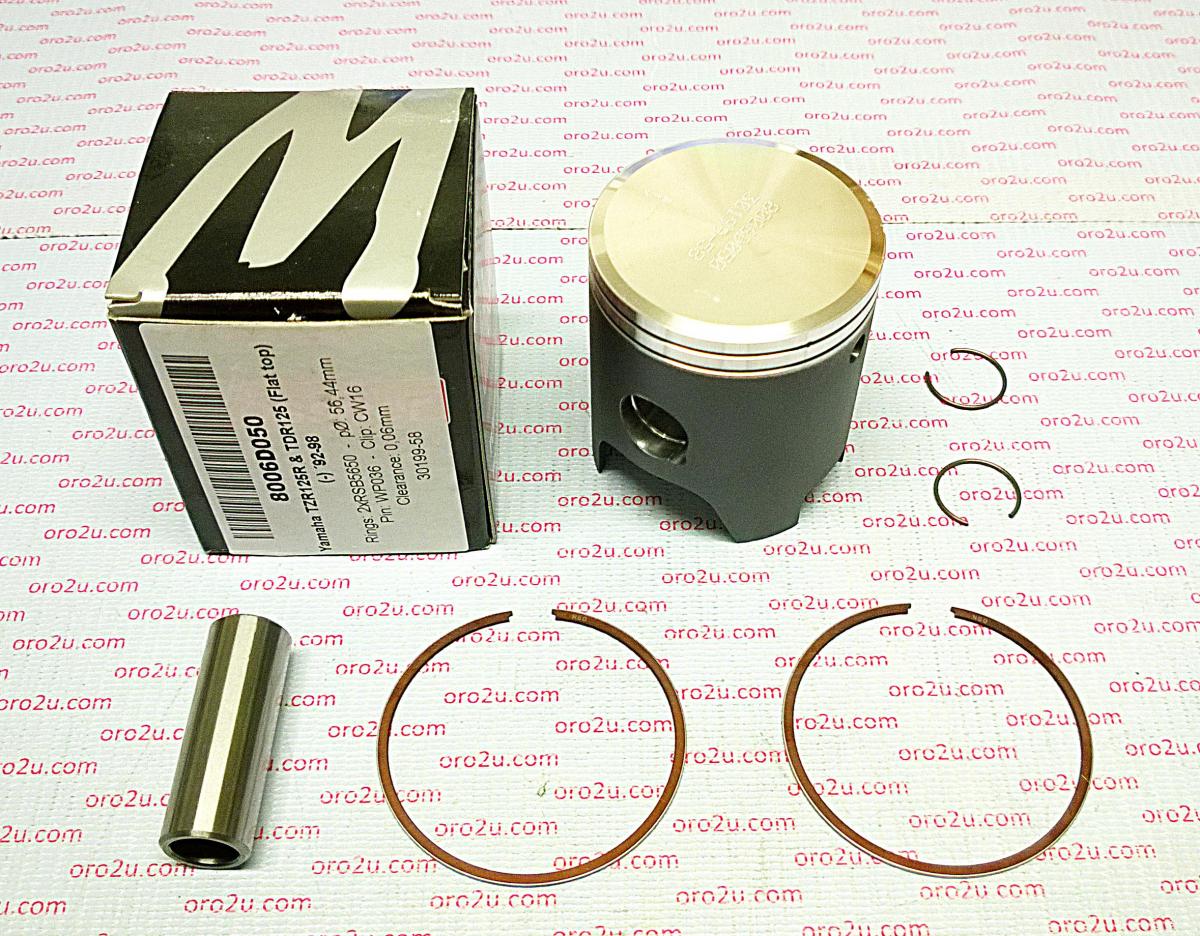

Wossner forged piston kit with a 57.50mm bore and 57.44mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features forged construction for superior strength, optimized heat transfer for efficient combustion, and elliptical design for uniform load distribution. Specifications: Bore 57.50mm, Diameter 57.44mm, Display (cm³) 124, Stroke (mm) 60.80, Clearance (mm) 0.06, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Dome Volume (cm³) Flat, Compression Height (mm) 29.90. Cross-Reference OEM Part Numbers: Wossner Piston Yamaha TZR125R (PN# 8006D150), Lock P/N: CW16, Pin P/N: WP036, Ring Set P/N: RSB5750 x 2.
- SKU
- 56-W252.150
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (14)
| Make | Model | Year |
|---|---|---|
| YAMAHA | TDR 125 | 1992 |
| YAMAHA | TDR 125 | 1993 |
| YAMAHA | TDR 125 | 1994 |
| YAMAHA | TDR 125 | 1995 |
| YAMAHA | TDR 125 | 1996 |
| YAMAHA | TDR 125 | 1997 |
| YAMAHA | TDR 125 | 1998 |
| YAMAHA | TZR 125 | 1992 |
| YAMAHA | TZR 125 | 1993 |
| YAMAHA | TZR 125 | 1994 |
| YAMAHA | TZR 125 | 1995 |
| YAMAHA | TZR 125 | 1996 |
| YAMAHA | TZR 125 | 1997 |
| YAMAHA | TZR 125 | 1998 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 57.5mm
- Variant Id
- 255225
FULL DESCRIPTION
Wossner Forged Piston Kit 57.50mm Bore
Upgrade your motorcycle's performance with this high-quality Wossner forged piston kit. Expertly manufactured in Germany, this piston is engineered for superior strength and durability, ensuring optimal performance under demanding conditions. Its advanced design focuses on efficiency and longevity for your engine.
Key Features:
- Forged Construction: Provides exceptional strength and resistance to stress, offering a significant advantage over cast pistons.
- Optimized Heat Transfer: Designed for efficient heat transfer to the cylinder walls, promoting consistent combustion temperatures and performance.
- Elliptical Design: Features an elliptical profile that creates a uniform bearing surface when the piston expands under heat. This reduces localized pressure points and evenly distributes thrust loads, preventing piston collapse.
- German Engineering: Manufactured to exacting standards in Germany, guaranteeing precision and reliability.
Specifications:
- Bore: 57.50mm
- Diameter: 57.44mm
- Cubic Capacity (cm³): 124
- Stroke (mm): 60.80
- Clearance (mm): 0.06
- Compression Height (mm): 29.90
- Dome Volume (cm³): Flat
