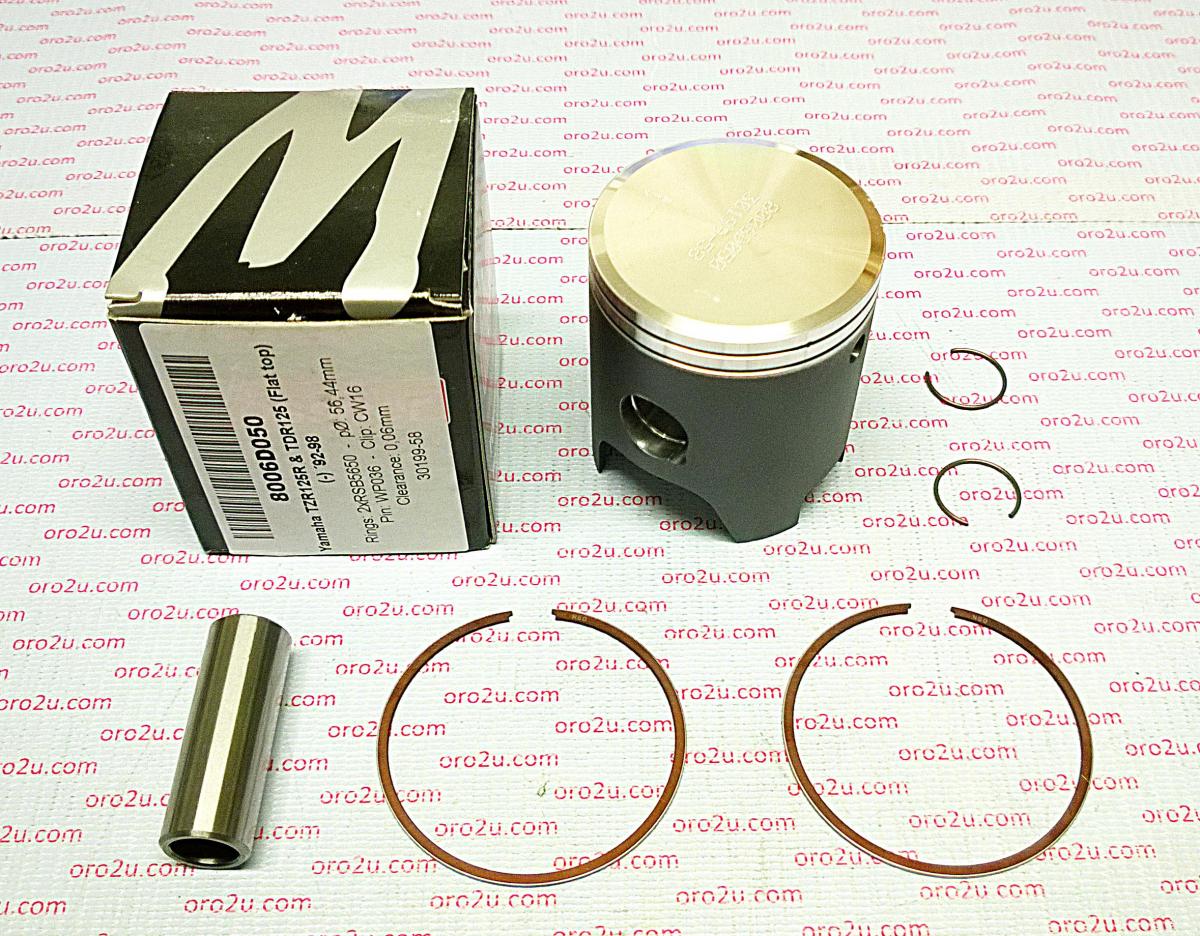

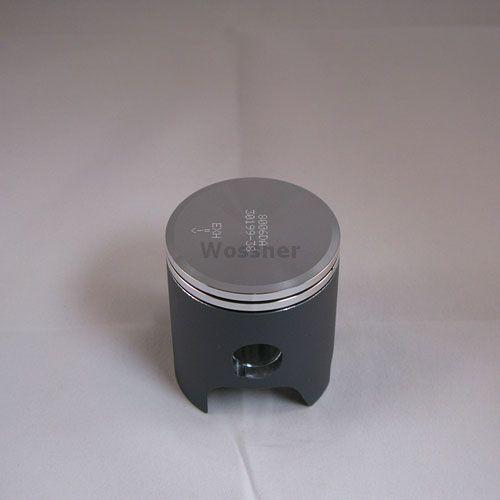

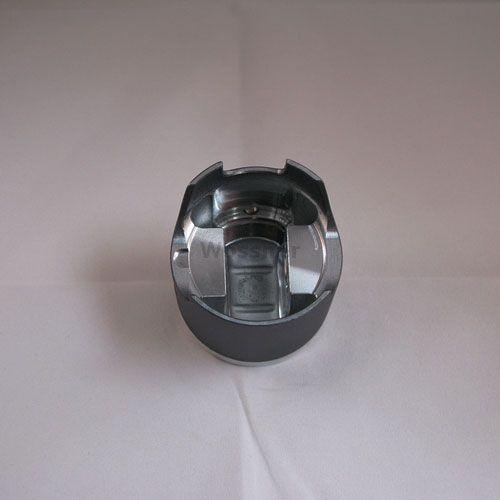

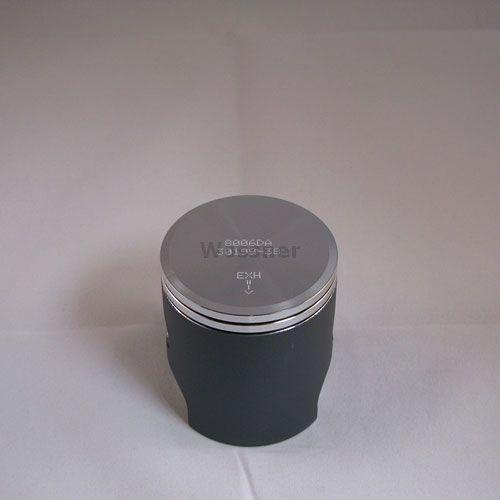

PISTON KIT 93-97 TZR125 57.00, FORGED WOSSNER 8006D100
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 57.00mm bore and 56.94mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features include forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Specifications: Bore 57.00mm, Diameter 56.94mm, Display (cm³) 124, Stroke (mm) 60.80, Clearance (mm) 0.06, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Dome Volume (cm³) Flat, Compression Height (mm) 29.90. Cross-reference OEM Part Numbers: Wossner Piston Yamaha TZR125R (PN# 8006D100), Lock P/N: CW16, Pin P/N: WP036, Ring Set P/N: RSB5700 x 2. Weight 242g.
- SKU
- 56-W252.100
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (14)
| Make | Model | Year |
|---|---|---|
| YAMAHA | TDR 125 | 1992 |
| YAMAHA | TDR 125 | 1993 |
| YAMAHA | TDR 125 | 1994 |
| YAMAHA | TDR 125 | 1995 |
| YAMAHA | TDR 125 | 1996 |
| YAMAHA | TDR 125 | 1997 |
| YAMAHA | TDR 125 | 1998 |
| YAMAHA | TZR 125 | 1992 |
| YAMAHA | TZR 125 | 1993 |
| YAMAHA | TZR 125 | 1994 |
| YAMAHA | TZR 125 | 1995 |
| YAMAHA | TZR 125 | 1996 |
| YAMAHA | TZR 125 | 1997 |
| YAMAHA | TZR 125 | 1998 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 57mm
- Variant Id
- 255224
FULL DESCRIPTION
Wossner Forged Piston Kit - 57.00mm Bore
This Wossner forged piston kit is engineered for high-performance engines, featuring a 57.00mm bore and a 56.94mm diameter. Manufactured in Germany, this piston utilizes forged construction for superior strength and durability. Its advanced elliptical design ensures a uniform bearing surface even under extreme heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Key Features:
- Forged Construction: Provides exceptional strength and resistance to stress.
- Optimized Heat Transfer: Designed for efficient transfer of heat to cylinder walls, promoting optimal combustion temperatures.
- Elliptical Piston Design: Creates a uniform bearing surface under heat expansion, leading to even load distribution and preventing collapse.
- German Engineering: Manufactured to high standards in Germany.
Specifications:
- Bore Size: 57.00mm
- Piston Diameter: 56.94mm
- Displacement: 124 cm³
- Stroke: 60.80mm
- Piston Clearance: 0.06mm
- Compression Height: 29.90mm
- Dome Volume: Flat
