PISTON KIT 93-95 KLX650 100.00, FORGED WOSSNER 8512DB
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 100.01mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision. Features forged piston for superior strength and design, optimized heat transfer to cylinder walls, and elliptical design for uniform bearing surface and even thrust load distribution. Bore: 100.01mm (+0.01mm oversize). Standard size piston (PN# 8512DB). Lock Part Number: CW24. Pin Part Number: WP057. Ring Set Part Number: 1000XSY. Displacement: 651 cm³. Stroke: 83.00mm. Clearance: 0.06mm. Wossner Compression Ratio: OEM. OEM Compression Ratio: 9.50:1. Dome Volume: -24.90 cm³. Compression Height: 29.50mm.
- SKU
- 56-W173+0.B
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 100mm
- Variant Id
- 254844
FULL DESCRIPTION

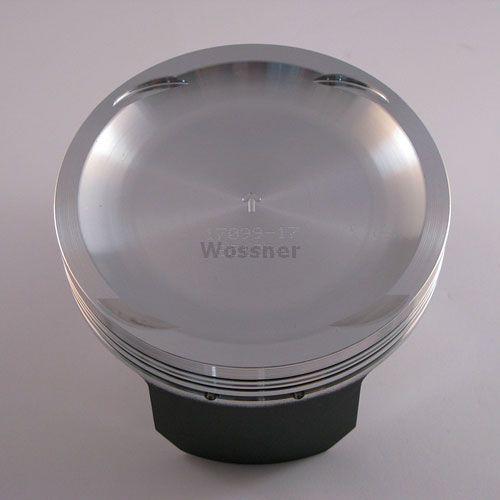

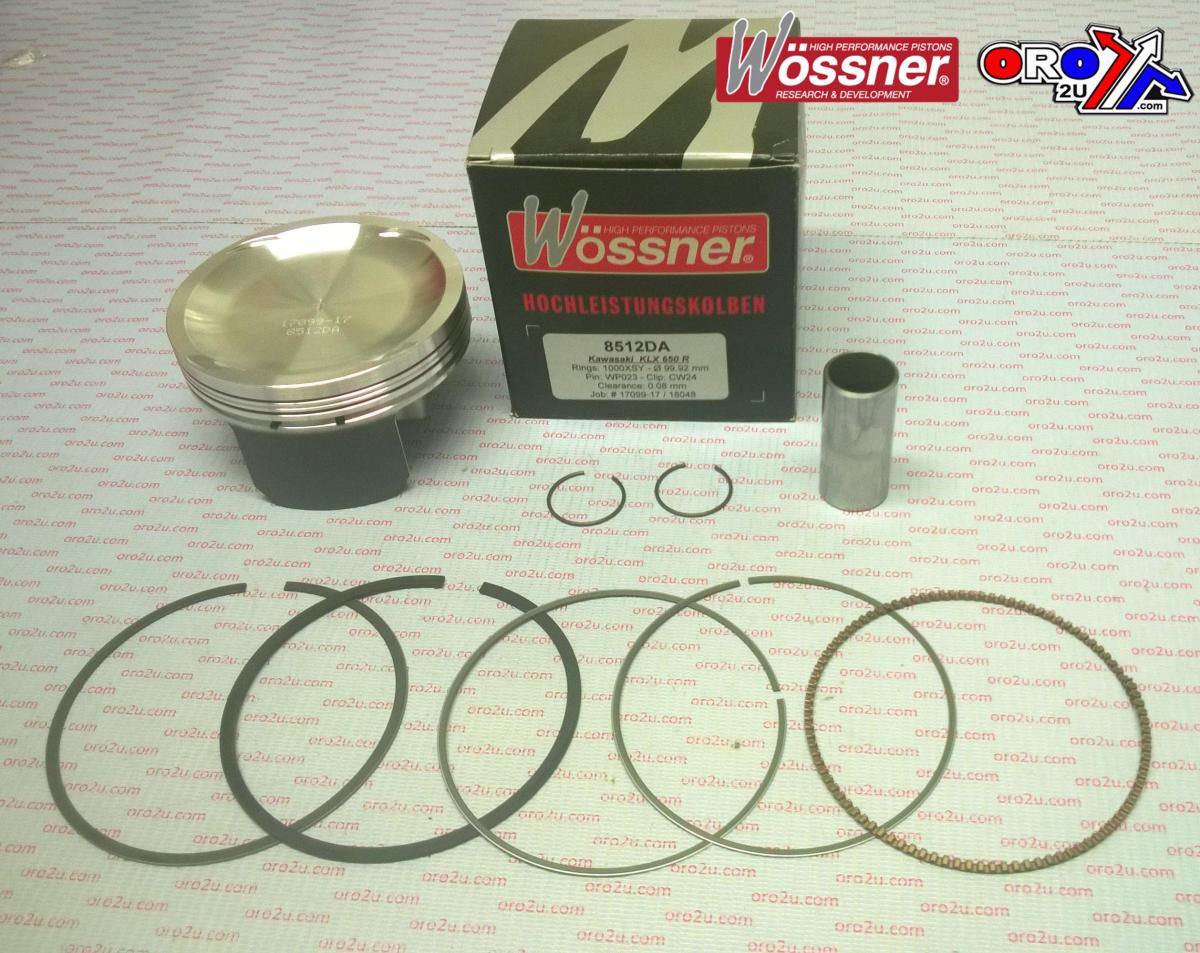

Wossner Forged Piston Kit 100.01mm Bore
Enhance the performance and durability of your engine with this Wossner forged piston kit. Engineered for precision and strength, this kit is designed to optimize combustion and provide exceptional longevity.
Key Features:
- Forged Piston Design: Offers superior strength and a precisely engineered shape for optimal performance.
- Optimized Heat Transfer: Facilitates efficient heat transfer to cylinder walls, contributing to consistent engine temperature.
- Elliptical Design: Ensures a uniform bearing surface under heat expansion, distributing thrust loads evenly and reducing localized pressure. This design helps prevent piston collapse and maintains bearing integrity.
- High-Quality Manufacturing: Manufactured in Germany, guaranteeing precision engineering and adherence to stringent quality standards.
Specifications:
- Bore Size: 100.01mm (0.01mm oversize)
- Piston Part Number: 8512DB
- Lock Part Number: CW24
- Pin Part Number: WP057
- Ring Set Part Number: 1000XSY
- Stroke: 83.00mm
- Clearance: 0.06mm
- Dome Volume: -24.90 cm³
- Compression Height: 29.50mm
- OEM Compression Ratio: 9.50:1
