PISTON KIT 93-95 KLX650 100.00, FORGED WOSSNER 8512DA 13001-1401
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
Wossner forged piston kit with a 100mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany. Features forged piston for superior strength and design, optimized heat transfer to cylinder walls, and elliptical design for uniform bearing surface and even thrust load distribution. Specifications include bore of 100mm, standard size piston (PN# 8512DA), lock part number CW24, pin part number WP057, ring set part number 1000XSY, displacement of 651 cm³, stroke of 83.00mm, clearance of 0.06mm, Wossner compression ratio OEM, OEM compression ratio 9.50:1, dome volume of -24.90 cm³, and compression height of 29.50mm. Cross-reference OEM part numbers: 13001-1401, 40133M10000.
- SKU
- 56-W173+0.A
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (4)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KLX 650R | 1993 |
| KAWASAKI | KLX 650R | 1994 |
| KAWASAKI | KLX 650R | 1995 |
| KAWASAKI | KLX 650R | 1996 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 100mm
- Variant Id
- 254843
FULL DESCRIPTION

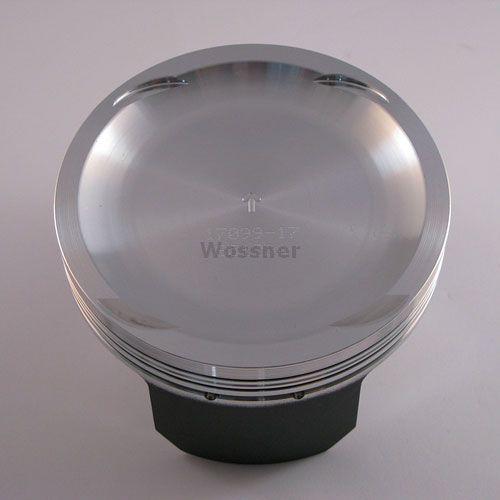

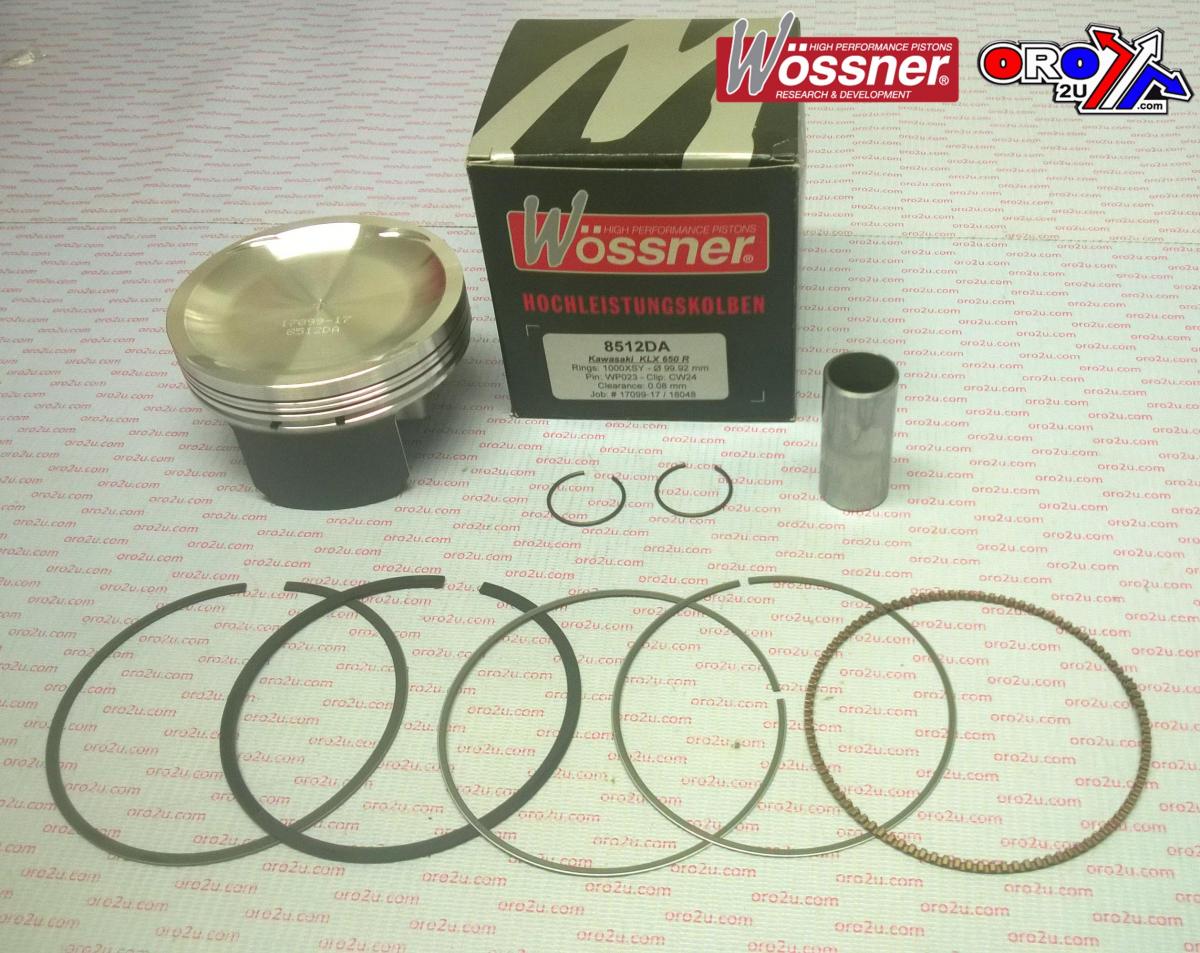

Wossner Forged Piston Kit - 100mm Bore
Enhance the performance and durability of your Kawasaki KLX650 with this premium forged piston kit from Wossner. Engineered in Germany, this piston kit is designed for optimal combustion efficiency and longevity.
Key Features:
- Forged Construction: Provides superior strength and a more precise design compared to cast pistons.
- Optimized Heat Transfer: Designed to efficiently transfer heat to cylinder walls, promoting consistent operating temperatures.
- Elliptical Design: Ensures a uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse.
- Even Thrust Load Distribution: The elliptical shape also aids in distributing thrust loads evenly across the piston skirt.
- Precision Manufacturing: Manufactured in Germany to exacting standards for reliability and performance.
Specifications:
- Bore Size: 100.00mm
- Standard Size Piston (Part Number: 8512DA)
- Lock Part Number: CW24
- Pin Part Number: WP057
- Ring Set Part Number: 1000XSY
- Displacement: 651 cm³
- Stroke: 83.00mm
- Piston Clearance: 0.06mm
- Wossner Compression Ratio: OEM
- OEM Compression Ratio: 9.50:1
- Dome Volume: -24.90 cm³
- Compression Height: 29.50mm
Cross-Reference OEM Part Numbers:
- 13001-1401
- 40133M10000
