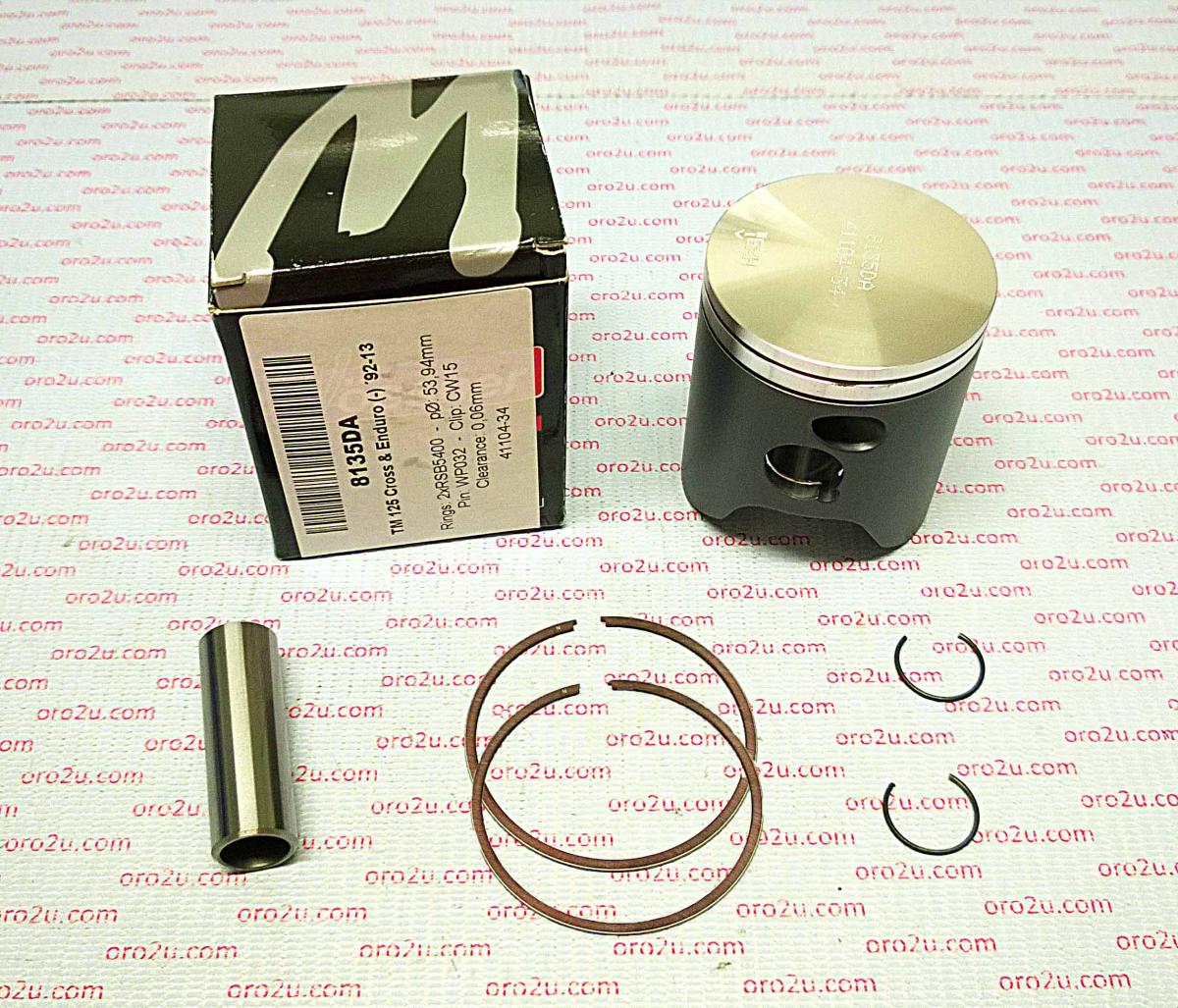

PISTON KIT 92-13 TM 125 54.00, WOSSNER 8135DA FORGED

Wossner Forged Piston Kit - 54.00mm Bore

Upgrade your motorcycle's performance and durability with this Wossner forged piston kit. Engineered for superior strength and optimal heat transfer, this piston kit is designed to withstand the demands of high-performance 2-stroke engines. The advanced elliptical design ensures uniform bearing surface under heat expansion, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany, Wossner pistons are renowned for their quality and precision.

Key Features:

• Forged Construction: Provides enhanced durability and strength for demanding applications.
• Optimized Heat Transfer: Efficiently moves heat from the combustion chamber to the cylinder walls for improved performance and longevity.
• Elliptical Design: Prevents localized pressure and distributes thrust loads evenly, eliminating the risk of piston collapse.
• Designed for 2-Stroke Engines: Specifically engineered for the requirements of 2-stroke powerplants.

Specifications:

• Bore: 53.94 mm
• Piston Size: 54.00 mm
• Displacement: 123 cm³
• Stroke: 54.50 mm
• Clearance: 0.06 mm
• Compression Height: 29.00 mm

Included Components:

• Lock: CW15
• Pin: WP032
• Ring Set: RSB5400
