PISTON KIT 92-08 TRX300 74.00, FORGED WOSSNER 8675DA ATV
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

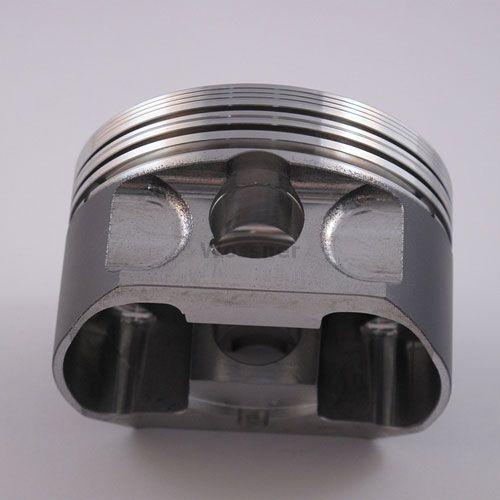

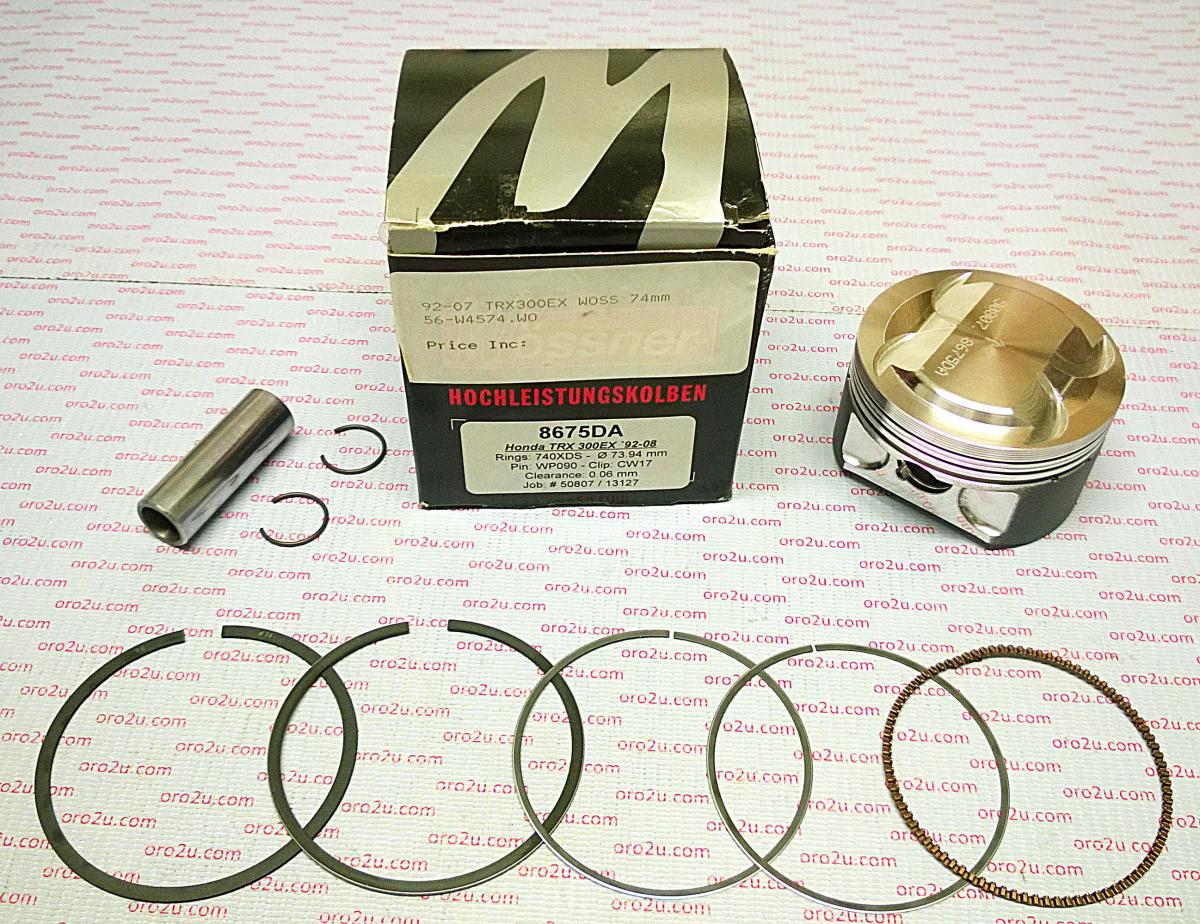

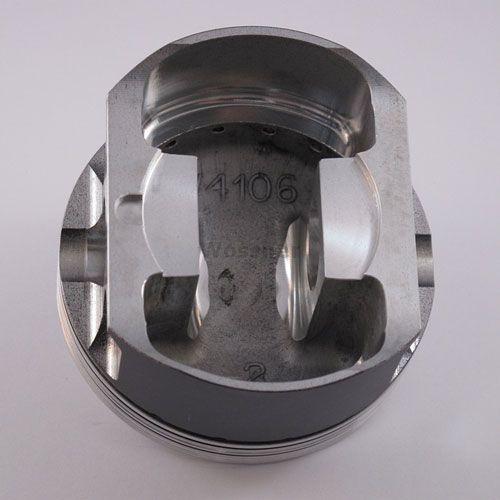

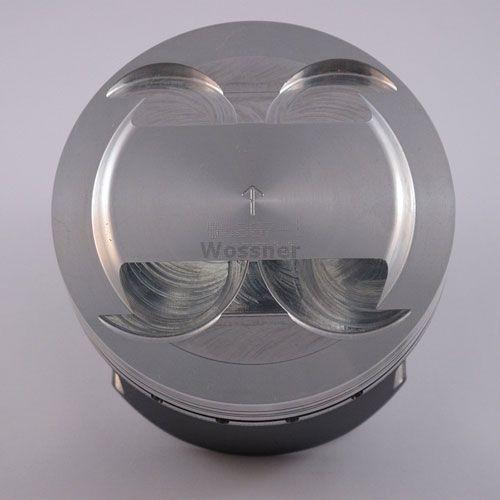

Wossner 74mm forged piston kit. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance. Features forged construction for superior strength and durability, optimized heat transfer to cylinder walls, and an elliptical design for uniform bearing surface under heat expansion. Reduces localized pressure, evenly distributes thrust loads, and prevents piston collapse under high-stress conditions. Specifications include a bore size of 74mm, Wossner Part Number 8675DA, Lock Part Number CW17, Pin Part Number WP090, Ring Set Part Number 740XDS, displacement of 282 cm³, stroke of 65.50mm, clearance of 0.06mm, compression ratio of OEM (12.00:1), dome volume of +6.30 cm³, and compression height of 23.30mm.
- SKU
- 56-W4574.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (59)
| Make | Model | Year |
|---|---|---|
| HONDA | TRX 300EX | 1993 |
| HONDA | TRX 300EX | 1994 |
| HONDA | TRX 300EX | 1995 |
| HONDA | TRX 300EX | 1996 |
| HONDA | TRX 300EX | 1997 |
| HONDA | TRX 300EX | 1998 |
| HONDA | TRX 300EX | 1999 |
| HONDA | TRX 300EX | 2000 |
| HONDA | TRX 300EX | 2001 |
| HONDA | TRX 300EX | 2002 |
| HONDA | TRX 300EX | 2003 |
| HONDA | TRX 300EX | 2004 |
| HONDA | TRX 300EX | 2005 |
| HONDA | TRX 300EX | 2006 |
| HONDA | TRX 300EX | 2007 |
| HONDA | TRX 300EX | 2008 |
| HONDA | TRX 300EX | 2009 |
| HONDA | TRX 300EX | 2010 |
| HONDA | TRX 300EX | 2011 |
| HONDA | TRX EX 300 | 1992 |
| HONDA | TRX EX 300 | 1993 |
| HONDA | TRX EX 300 | 1994 |
| HONDA | TRX EX 300 | 1995 |
| HONDA | TRX EX 300 | 1996 |
| HONDA | TRX EX 300 | 1997 |
| HONDA | TRX EX 300 | 1998 |
| HONDA | TRX EX 300 | 1999 |
| HONDA | TRX EX 300 | 2000 |
| HONDA | TRX EX 300 | 2001 |
| HONDA | TRX EX 300 | 2002 |
| HONDA | TRX EX 300 | 2003 |
| HONDA | TRX EX 300 | 2004 |
| HONDA | TRX EX 300 | 2005 |
| HONDA | TRX EX 300 | 2006 |
| HONDA | TRX EX 300 | 2007 |
| HONDA | TRX EX 300 | 2008 |
| HONDA | TRX EX 300 | 2009 |
| HONDA | TRX EX 300 | 2010 |
| HONDA | TRX EX 300 | 2011 |
| HONDA | TRX X 300 | 1993 |
| HONDA | TRX X 300 | 1994 |
| HONDA | TRX X 300 | 1995 |
| HONDA | TRX X 300 | 1996 |
| HONDA | TRX X 300 | 1997 |
| HONDA | TRX X 300 | 1998 |
| HONDA | TRX X 300 | 1999 |
| HONDA | TRX X 300 | 2000 |
| HONDA | TRX X 300 | 2001 |
| HONDA | TRX X 300 | 2002 |
| HONDA | TRX X 300 | 2003 |
| HONDA | TRX X 300 | 2004 |
| HONDA | TRX X 300 | 2005 |
| HONDA | TRX X 300 | 2006 |
| HONDA | TRX X 300 | 2007 |
| HONDA | TRX X 300 | 2008 |
| HONDA | TRX X 300 | 2009 |
| HONDA | TRX X 300 | 2010 |
| HONDA | TRX X 300 | 2011 |
| HONDA | TRX X 300 | 2012 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 74mm
- Variant Id
- 255725
FULL DESCRIPTION
Wossner Forged Piston Kit 74mm for Honda TRX300 Series ATVs
Enhance your Honda TRX300X or TRX300EX ATV's performance and durability with this high-quality Wossner forged piston kit. Engineered in Germany, this piston is designed for superior strength and optimized combustion. Its advanced design ensures even heat transfer to cylinder walls and uniform load distribution, preventing localized pressure and potential piston collapse under demanding conditions. Experience improved reliability and performance with this precision-crafted component.
Key Features
- Forged construction for exceptional strength and longevity.
- Optimized for efficient heat transfer to cylinder walls.
- Elliptical design promotes uniform bearing surface, even with heat expansion.
- Effectively reduces localized pressure and distributes thrust loads evenly.
- Designed to prevent piston collapse during high-stress operation.
Specifications
- Bore Size: 74mm
- Wossner Part Number: 8675DA
- Lock Part Number: CW17
- Pin Part Number: WP090
- Ring Set Part Number: 740XDS
- Displacement: 282 cm³
- Stroke: 65.50mm
- Clearance: 0.06mm
- Compression Ratio: OEM (12.00:1)
- Dome Volume: +6.30 cm³
- Compression Height: 23.30mm
