PISTON KIT 90-99 DR350 83.00, FORGED WOSSNER 8600D400

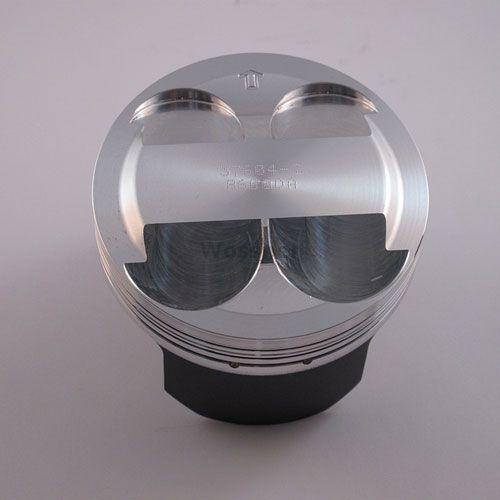

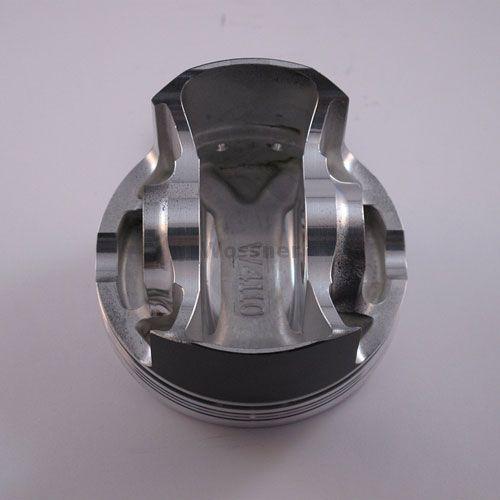

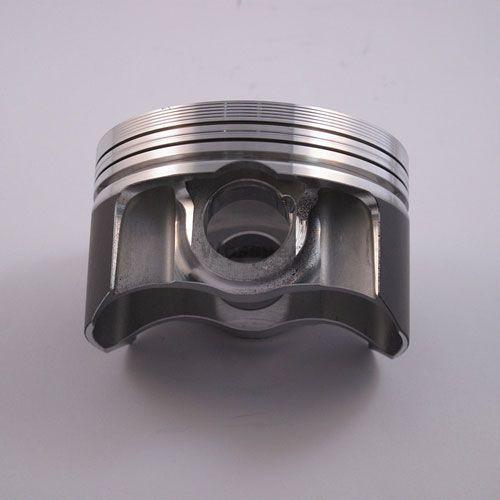

Wossner 83mm Forged Piston Kit

This Wossner forged piston kit is engineered for high-performance and durability. Designed with advanced metallurgy and precision manufacturing, this piston kit is built to withstand demanding operating conditions. It features a forged construction for superior strength, ensuring longevity and reliability.

The piston's design focuses on optimal combustion chamber heat transfer and uniform load distribution. This helps to reduce localized pressure points, preventing hot spots and minimizing the risk of piston collapse under high stress. The elliptical design allows for even bearing surface contact as the piston expands with heat, contributing to a more stable and efficient engine operation.

Key Features:

• Forged construction for enhanced strength and durability.
• Engineered for optimal heat transfer to cylinder walls.
• Elliptical design promotes uniform bearing surface under heat expansion.
• Reduces localized pressure and evenly distributes thrust loads for improved performance.
• Helps prevent piston collapse in high-stress engine environments.

Specifications:

• Bore Size: 83.00mm
• Displacement: 349 cm³
• Stroke: 71.20mm
• Clearance: 0.06mm
• Compression Ratio: OEM (9.50:1)
• Dome Volume: +3.50 cm³
• Compression Height: 25.00mm

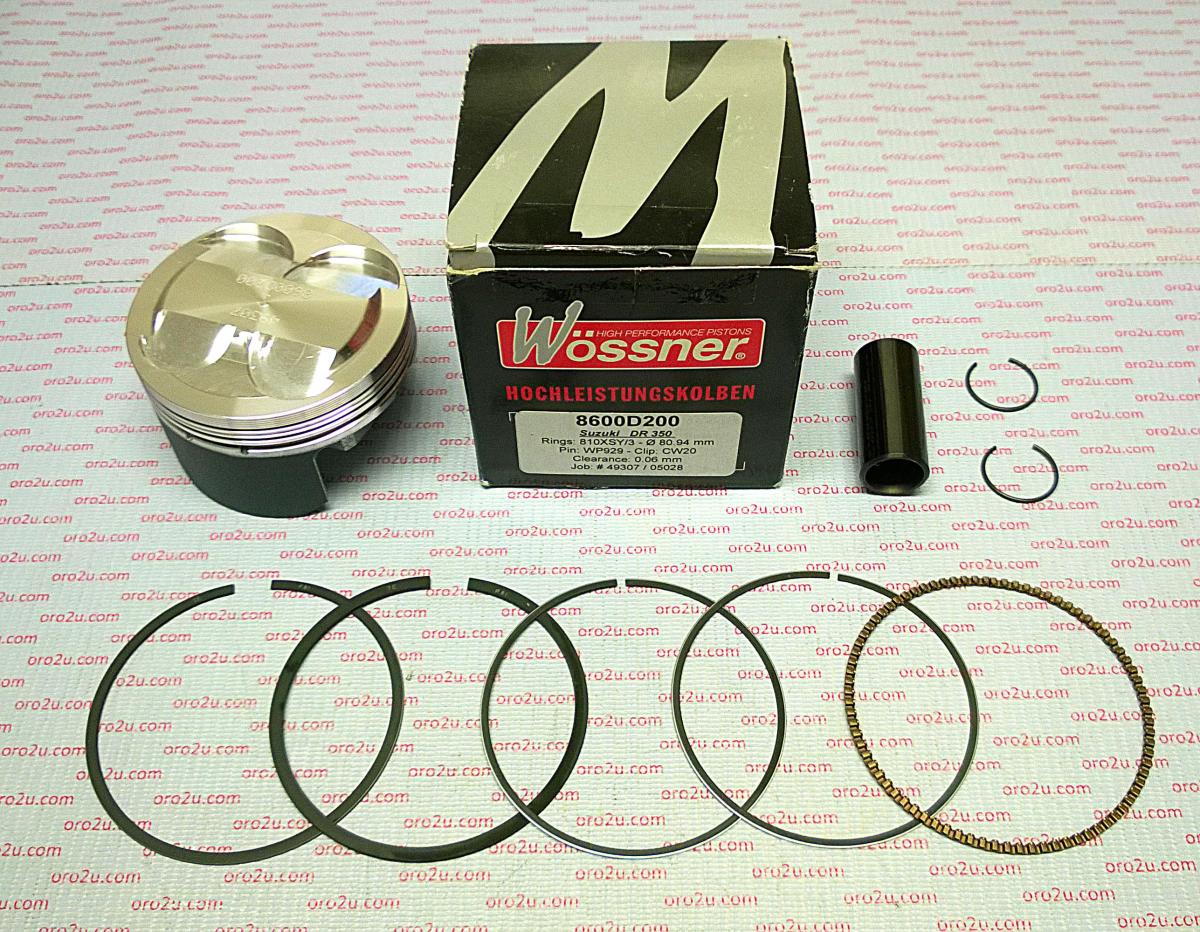

• Includes Lock Part Number: CW20
• Includes Pin Part Number: WP029
• Includes Ring Set Part Number: 830XSY
