PISTON KIT 90-94 KTM250 68.50, WOSSNER 8005D100 FORGED

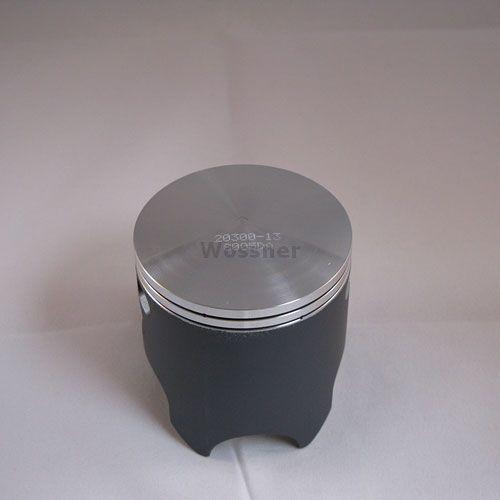

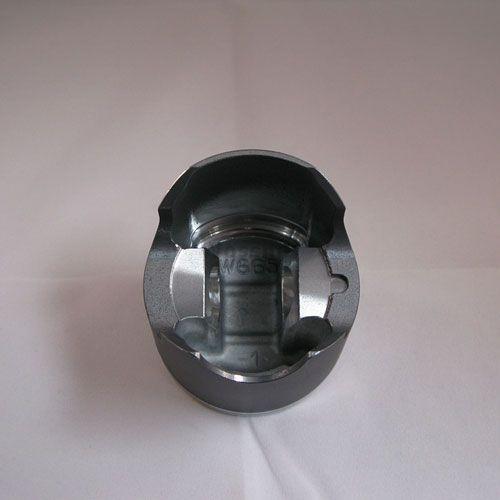

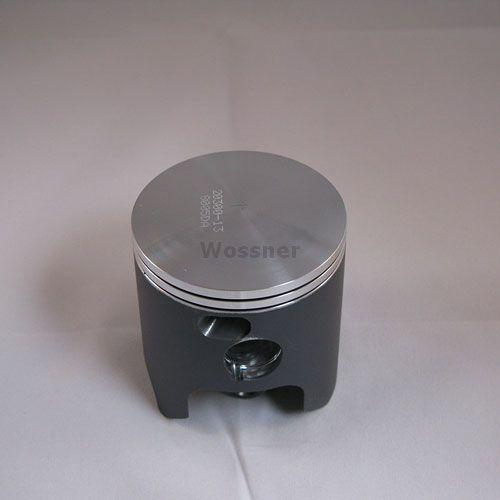

Wossner Forged Piston Kit - 68.50mm Bore

Enhance the performance and reliability of your 2-stroke engine with this Wossner forged piston kit. Engineered for precision and durability, this kit features a 68.50 mm bore and a piston diameter of 68.44 mm, representing a +1.00 mm oversize. The forged construction provides superior strength compared to cast pistons, ensuring longevity even under demanding conditions.

The advanced elliptical geometry of the piston is designed to optimize load distribution and minimize localized pressure during thermal expansion. This intelligent design contributes to effective heat dissipation to the cylinder walls, helping to prevent piston collapse and maintain optimal engine performance.

Manufactured in Germany to exacting standards, this Wossner piston kit is a testament to precision engineering and high-quality materials.

Key Features:

• Forged piston construction for exceptional strength and longevity.
• Optimized elliptical design for improved load distribution and reduced stress.
• Facilitates effective heat dissipation to the cylinder walls.
• Precision-engineered and manufactured in Germany for superior quality.

Specifications:

• Bore Size: 68.50 mm
• Piston Diameter: 68.44 mm
• Engine Displacement: 249 cm³
• Stroke: 69.50 mm
• Clearance: 0.06 mm
• Compression Height: 29.70 mm
• Compression Ratio: 2-stroke (Wossner and OEM)

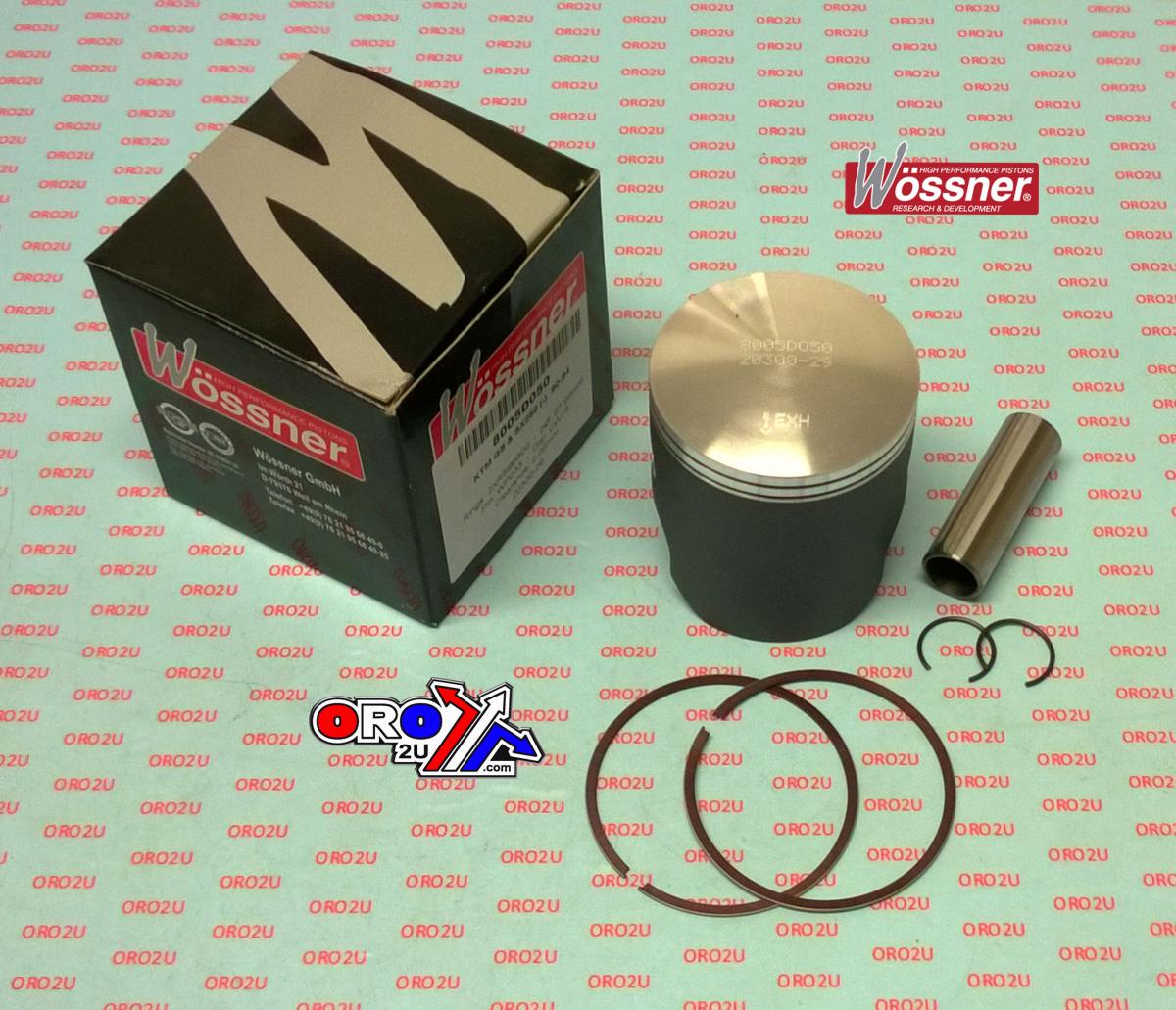

Included Components:

• Piston Kit (Part Number: 8005D100)
• Lock (Part Number: CW18)
• Pin (Part Number: WP033)
• Ring Set (Part Number: RSB6850 x 2)
