PISTON KIT 90-05 KDX125 56.50, FORGED WOSSNER 8008D050
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 56.50mm bore. Features include forged construction for superior strength and durability, optimized heat transfer for improved engine performance, and an elliptical design for even pressure distribution, preventing piston collapse. Manufactured in Germany for high-quality performance. Specifications: Bore Size 56.50mm, Actual Bore 56.44mm, Displacement 125 cm³, Stroke 54.40mm, Clearance 0.06mm, Compression Ratio 2-Stroke, Compression Height 32.80mm, Lock Part Number CW16, Pin Part Number WP036, Ring Set Part Number RSB5650 (2x). Wossner Piston Part Number 8008D050.
- SKU
- 56-W151_0.50
- Brand
- Wossner
- Availability
- In Stock (2)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 56.5mm
- Variant Id
- 254729
FULL DESCRIPTION

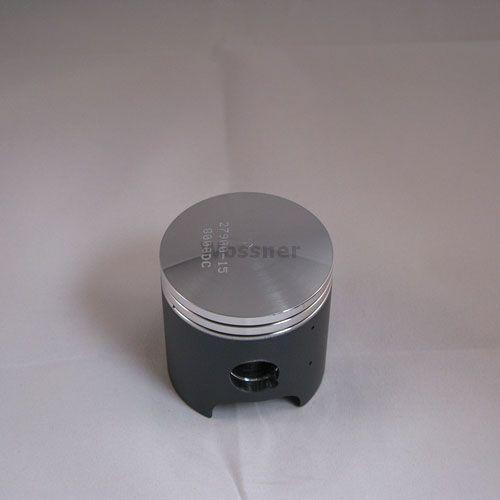

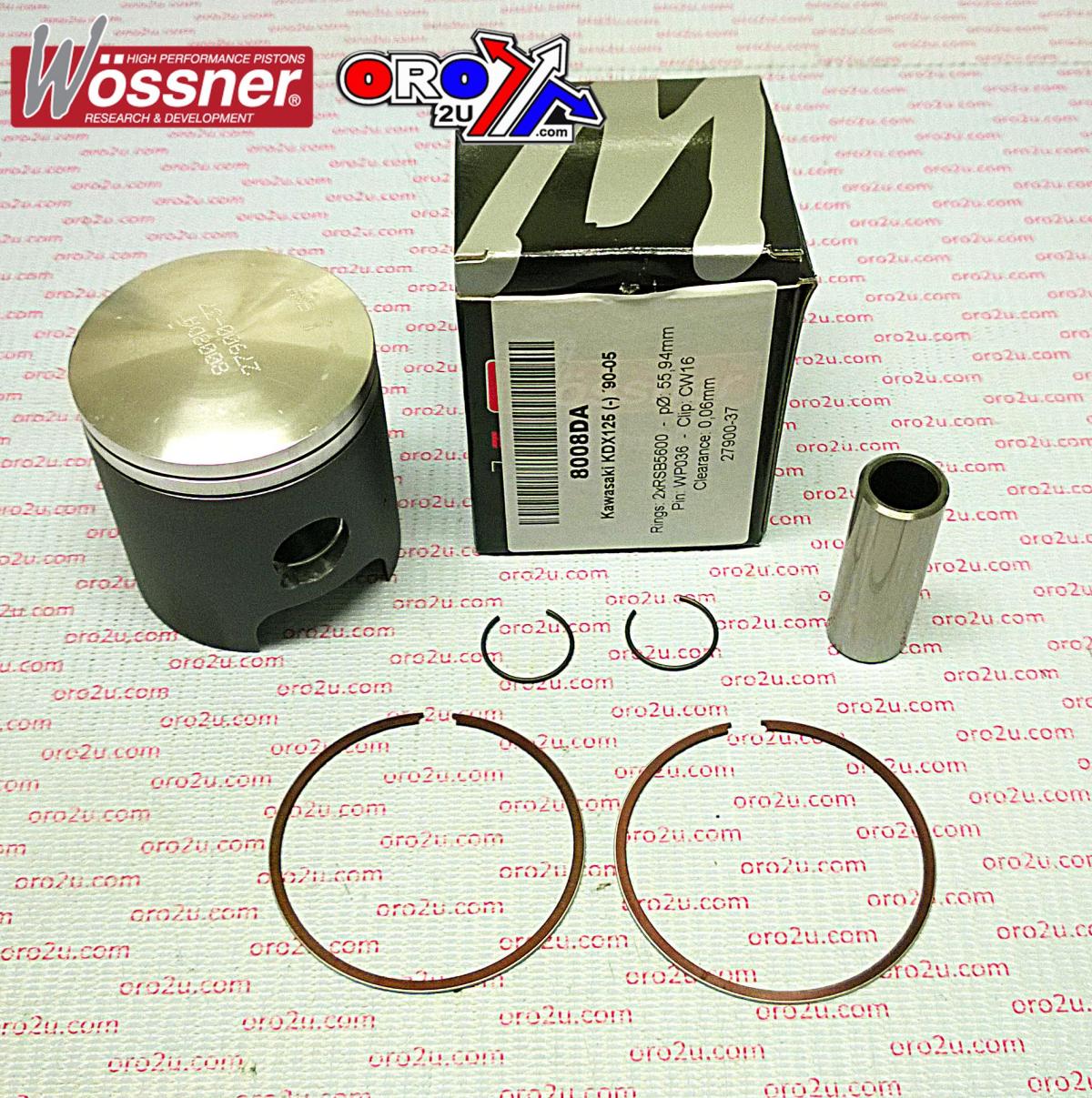

Wossner Forged Piston Kit 56.50mm
This Wossner forged piston kit is engineered for optimal performance and durability. Manufactured in Germany, this piston features advanced design elements to ensure superior heat transfer and uniform bearing surface distribution, which helps to prevent piston collapse under demanding conditions.
Key Features
- Forged Construction: Provides exceptional strength and resilience for long-lasting performance.
- Optimized Heat Transfer: Enhances engine efficiency and reliability.
- Elliptical Design: Ensures even pressure distribution across the piston surface, minimizing localized stress.
- Precision Manufacturing: Made in Germany to exacting standards for a high-quality fit and finish.
Specifications
- Bore Size: 56.50mm
- Actual Bore: 56.44mm
- Displacement: 125 cm³
- Stroke: 54.40mm
- Clearance: 0.06mm
- Compression Ratio: 2-Stroke
- Compression Height: 32.80mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5650 (2x)
Manufacturer Part Number: 8008D050
