PISTON KIT 90-05 KDX125 56.00, FORGED WOSSNER 8008DA 13001-1346
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

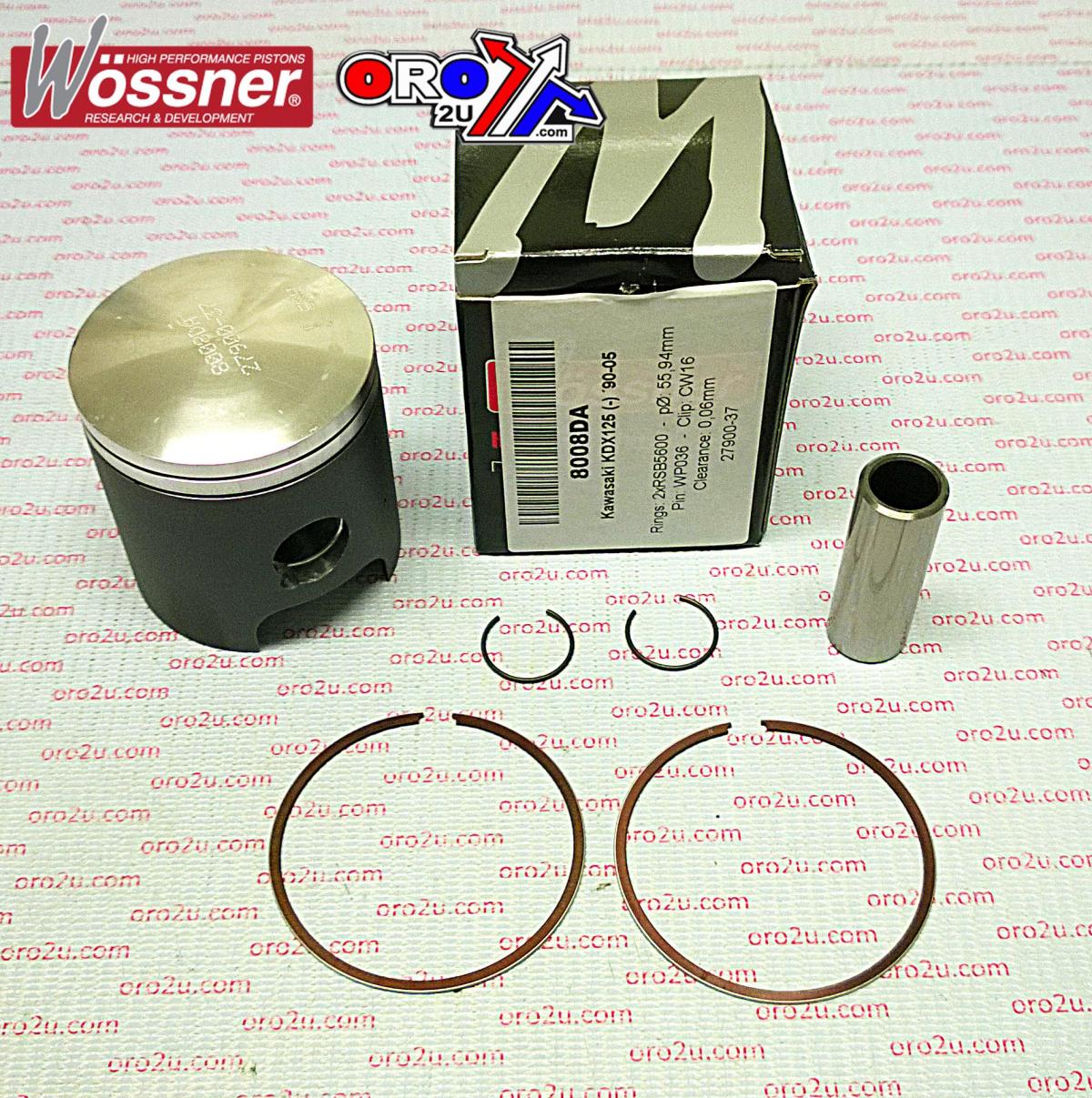

Wossner forged piston kit with 56.00mm bore. Engineered for optimal heat transfer and uniform bearing surface distribution to prevent piston collapse. Features forged construction for superior strength and durability, optimized heat transfer for improved engine performance, and an elliptical design for even pressure distribution and reduced localized stress. Manufactured in Germany. Specifications include: Bore Size 56.00mm, Actual Bore 55.94mm, Displacement 125 cm³, Stroke 54.40mm, Clearance 0.06mm, Compression Ratio 2-Stroke, Compression Height 32.80mm, Lock Part Number CW16, Pin Part Number WP036, Ring Set Part Number RSB5400 (2x). Wossner Piston Part Number 8008DA. Equivalent Part Numbers 13001-1346, 09104707.
- SKU
- 56-W151.A.WO
- Brand
- Wossner
- Availability
- Out of Stock
Fitments (16)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KDX 125 | 1990 |
| KAWASAKI | KDX 125 | 1991 |
| KAWASAKI | KDX 125 | 1992 |
| KAWASAKI | KDX 125 | 1993 |
| KAWASAKI | KDX 125 | 1994 |
| KAWASAKI | KDX 125 | 1995 |
| KAWASAKI | KDX 125 | 1996 |
| KAWASAKI | KDX 125 | 1997 |
| KAWASAKI | KDX 125 | 1998 |
| KAWASAKI | KDX 125 | 1999 |
| KAWASAKI | KDX 125 | 2000 |
| KAWASAKI | KDX 125 | 2001 |
| KAWASAKI | KDX 125 | 2002 |
| KAWASAKI | KDX 125 | 2003 |
| KAWASAKI | KDX 125 | 2004 |
| KAWASAKI | KDX 125 | 2005 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 56mm
- Variant Id
- 254728
FULL DESCRIPTION

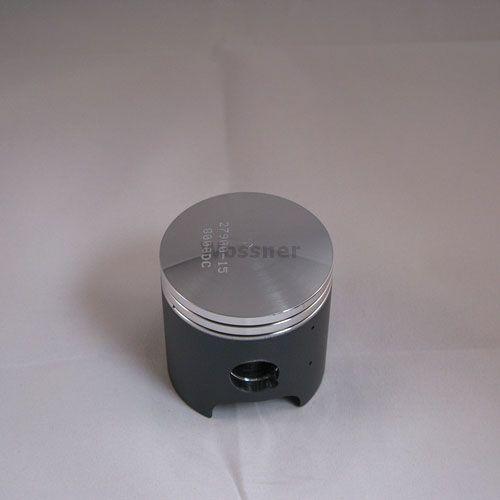

Wossner 56.00mm Forged Piston Kit for KDX125
Upgrade your Kawasaki KDX125 engine with this high-performance forged piston kit from Wossner. Engineered in Germany, this piston kit is designed for superior strength, durability, and optimal engine performance. Its advanced design promotes efficient heat transfer and uniform bearing surface distribution, effectively preventing piston collapse under demanding conditions.
Key Features:
- Forged Construction: Provides exceptional strength and resilience for high-performance applications.
- Optimized Heat Transfer: Ensures efficient cooling, contributing to consistent engine operation and longevity.
- Elliptical Design: Distributes pressure evenly across the piston surface, reducing localized stress and wear.
- Precision Manufacturing: Made in Germany to exacting standards for reliable performance.
Specifications:
- Bore Size: 56.00mm
- Actual Bore: 55.94mm
- Displacement: 125 cm³
- Stroke: 54.40mm
- Clearance: 0.06mm
- Compression Ratio: 2-Stroke
- Compression Height: 32.80mm
- Lock Part Number: CW16
- Pin Part Number: WP036
- Ring Set Part Number: RSB5400 (2x)
Wossner Part Number: 8008DA
Cross-Reference OEM Numbers: 13001-1346, 09104707
