PISTON KIT 90-01 ZX11 KAW, WOSSNER K8801D100-4 ROAD, KAWASAKI

£633.54Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

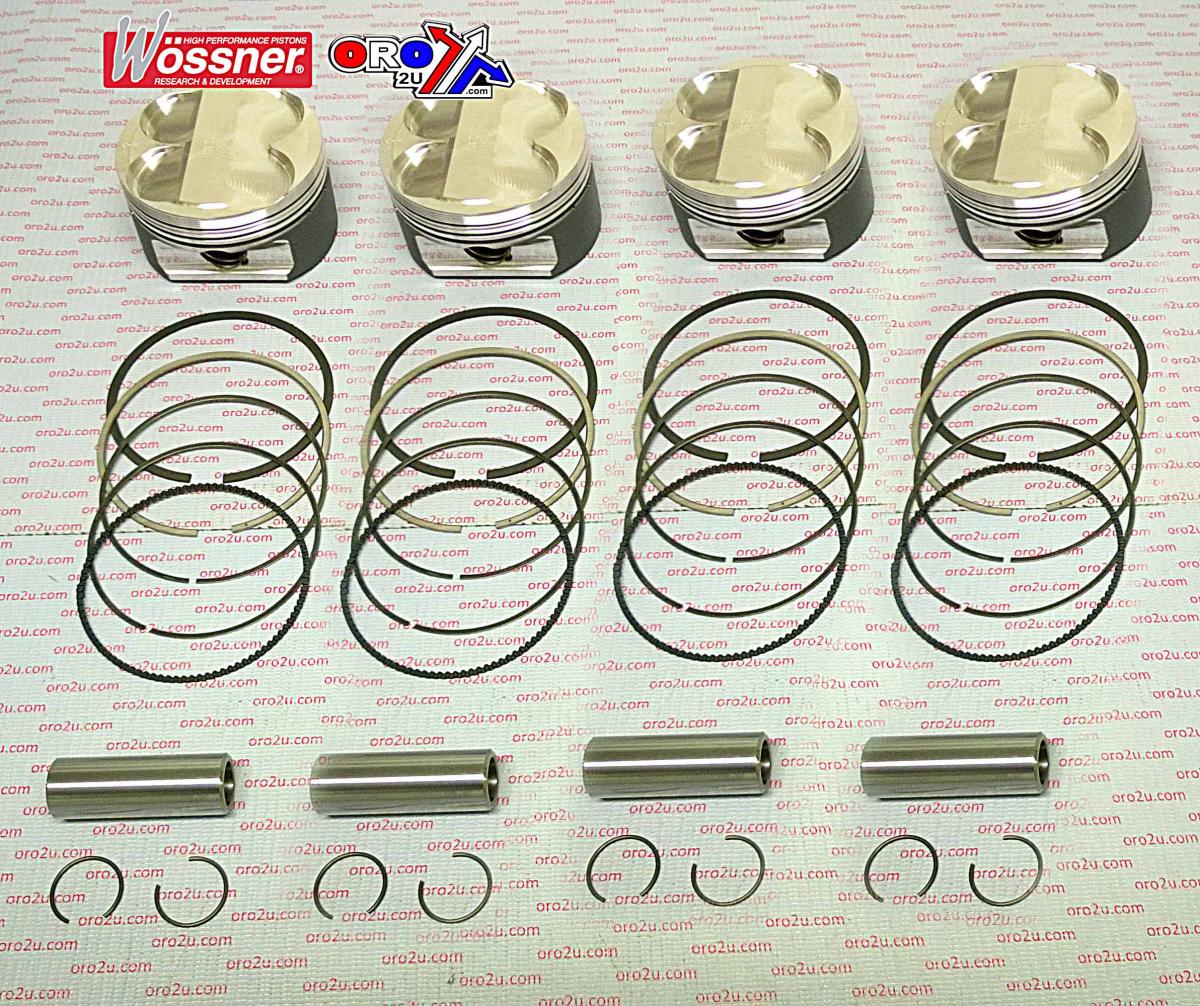

Wossner piston kit with a 77mm bore is a standard replacement for the Kawasaki Z11 (ZX11) models. Forged in Germany for high durability and optimal performance, it is engineered for efficient heat transfer and consistent expansion behaviour under thermal stress. The elliptical piston design distributes pressure evenly, helping to prevent piston collapse during high-load operation. Features include forged construction for enhanced strength and thermal resilience, optimised for efficient combustion chamber heat dissipation, and an elliptical design that provides a consistent bearing surface under heat expansion. It offers even thrust load distribution that minimises localised stress. Manufactured in Germany. Specifications: Bore: 77mm (Standard), Actual bore: 76.95mm, Display volume: 1080 / 1109 cm³, Stroke: 58.00mm, Clearance: 0.06mm, Wossner compression ratio: OEM, OEM compression ratio: 11.00:1, Dome volume: -3.70 cm³, Compression height: 25.00mm, Theoretical weight: 209.00g, Lock Part Number: CW18, Pin Part Number: WP031, Ring Set Part Number: 770XDS.

Specifications
SKU
56-W9814.77.WO
Brand
Wossner
Availability
In Stock (1)

Fitments (12)

MakeModelYear
KAWASAKIZX111990
KAWASAKIZX111991
KAWASAKIZX111992
KAWASAKIZX111993
KAWASAKIZX111994
KAWASAKIZX111995
KAWASAKIZX111996
KAWASAKIZX111997
KAWASAKIZX111998
KAWASAKIZX111999
KAWASAKIZX112000
KAWASAKIZX112001
General Product Group
Engine
General Product Type
Pistons & Kits
Variant Id
258799
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit 77mm Bore for Kawasaki ZX11 (1990-2001)

Upgrade your Kawasaki ZX11 (1990-2001) with this high-performance Wossner forged piston kit. Engineered and manufactured in Germany, this kit features a 77mm bore and is designed for exceptional durability and optimal engine performance. The forged construction provides superior strength and thermal resilience, ensuring consistent operation even under demanding conditions.

This Wossner piston kit is engineered for efficient heat transfer and expansion, crucial for maintaining stability during high-load scenarios. Its innovative elliptical design promotes even pressure distribution and maintains a consistent bearing surface as the piston expands under heat, helping to prevent piston collapse and minimize localized stress. Achieve OEM compression ratios with a direct fit replacement designed for longevity and power.

Key Features:

  • Forged construction for enhanced strength and thermal resilience
  • Optimised for efficient combustion chamber heat dissipation
  • Elliptical piston design for consistent bearing surface under heat expansion
  • Even thrust load distribution minimizes localized stress
  • Manufactured in Germany for premium quality
  • Standard bore size: 77mm
  • Actual bore size: 76.95mm
  • Wossner compression ratio: OEM
  • OEM compression ratio: 11.00:1

Specifications:

  • Bore: 77mm (Standard)
  • Actual Bore: 76.95mm
  • Display Volume: 1080 / 1109 cm³
  • Stroke: 58.00mm
  • Clearance: 0.06mm
  • Dome Volume: -3.70 cm³
  • Compression Height: 25.00mm
  • Theoretical Weight: 209.00g
  • Lock Part Number: CW18
  • Pin Part Number: WP031
  • Ring Set Part Number: 770XDS
