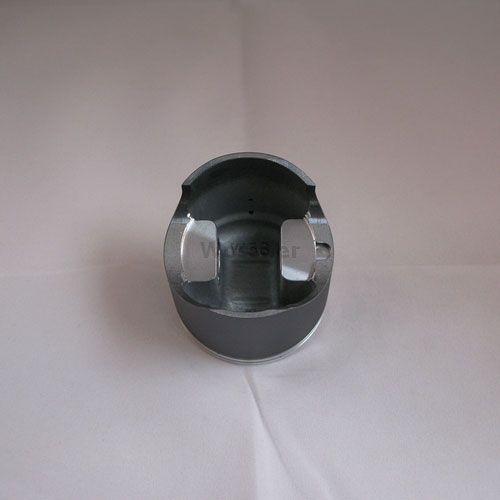

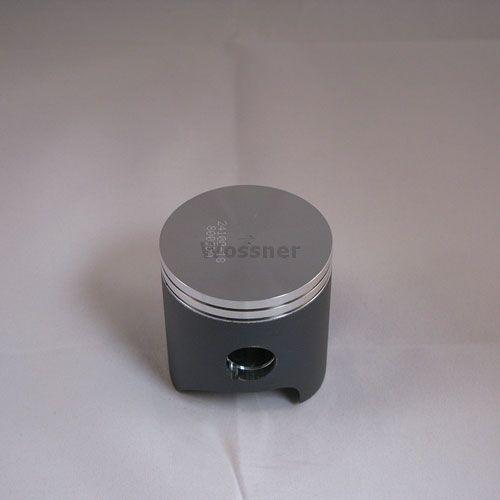

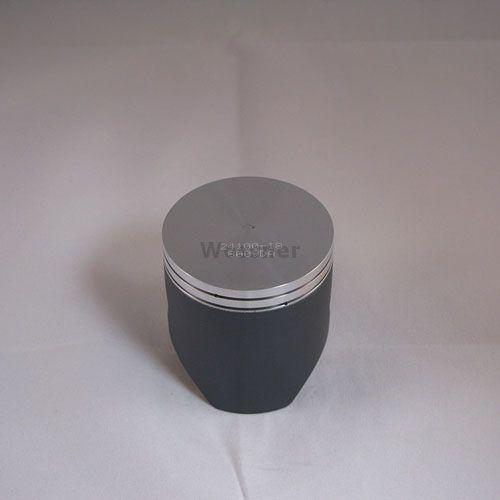

PISTON KIT 89-95 TSR125 58.00, FORGED WOSSNER 8009D200
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Wossner forged piston kit with 58.00mm bore and 57.94mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features include forged construction, optimized heat transfer, and elliptical design for uniform load distribution. Specifications: Bore 58.00mm, Diameter 57.94mm, Display (cm³) 125, Stroke (mm) 54.00, Clearance (mm) 0.06, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Compression Height (mm) 28.00. Cross-Reference OEM Part Numbers: Wossner Piston Suzuki TSR125 (PN# 8009D200), Lock P/N: CW16, Pin P/N: WP036, Ring Set P/N: RSB5800.
- SKU
- 56-W259.200.WO
- Brand
- Wossner
- Availability
- Out of Stock
Fitments (7)
| Make | Model | Year |
|---|---|---|
| SUZUKI | TSR 125 | 1989 |
| SUZUKI | TSR 125 | 1990 |
| SUZUKI | TSR 125 | 1991 |
| SUZUKI | TSR 125 | 1992 |
| SUZUKI | TSR 125 | 1993 |
| SUZUKI | TSR 125 | 1994 |
| SUZUKI | TSR 125 | 1995 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 58mm
- Variant Id
- 255280
FULL DESCRIPTION
Wossner Forged Piston Kit for Suzuki TSR125
Experience superior performance and durability with this Wossner forged piston kit. Engineered in Germany, this high-quality piston boasts a 58.00mm bore and 57.94mm diameter, designed to optimize heat transfer to your cylinder walls for more efficient combustion. Its advanced elliptical design ensures a uniform bearing surface even under extreme heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Key Features:
- Forged construction for exceptional strength and longevity.
- Optimized heat transfer characteristics for improved engine performance.
- Elliptical piston design for uniform load distribution and reduced wear.
- Precision manufactured in Germany to exacting standards.
Specifications:
- Bore: 58.00mm
- Diameter: 57.94mm
- Displacement (cm³): 125
- Stroke (mm): 54.00
- Piston Clearance (mm): 0.06
- Compression Height (mm): 28.00
- Wossner Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
Included Components:
- Piston
- Lock P/N: CW16
- Pin P/N: WP036
- Ring Set P/N: RSB5800
