PISTON KIT 89-95 TSR125 57.00, FORGED WOSSNER 8009D100
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner forged piston kit with a 57.00mm bore and 56.94mm diameter. This piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features include forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Manufactured in Germany. Specifications: Bore 57.00mm, Diameter 56.94mm, Display (cm³) 125, Stroke (mm) 50.00, Clearance (mm) 0.06, Compression Height (mm) 28.50. Cross-Reference OEM Part Numbers: Wossner Piston Suzuki TSR125 (PN# 8009D100), Lock P/N CW16, Pin P/N WP036, Ring Set P/N RSB5700 x 2.
- SKU
- 56-W259.100.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| SUZUKI | TSR 125 | 1989 |
| SUZUKI | TSR 125 | 1990 |
| SUZUKI | TSR 125 | 1991 |
| SUZUKI | TSR 125 | 1992 |
| SUZUKI | TSR 125 | 1993 |
| SUZUKI | TSR 125 | 1994 |
| SUZUKI | TSR 125 | 1995 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 57mm
- Variant Id
- 255278
FULL DESCRIPTION
Wossner Forged Piston Kit 57.00mm for TSR125
Upgrade your motorcycle's performance with this high-quality Wossner forged piston kit. Engineered in Germany, this piston is designed for superior strength and optimal heat transfer, ensuring efficient combustion and longevity. The innovative elliptical design provides a uniform bearing surface under heat expansion, effectively reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.
Key Features:
- Forged Construction: Offers exceptional strength and durability compared to cast pistons.
- Optimized Heat Transfer: Promotes efficient combustion by transferring heat effectively to cylinder walls.
- Elliptical Design: Ensures uniform load distribution and prevents piston collapse under extreme conditions.
- German Engineering: Manufactured to rigorous standards for reliable performance.
Specifications:
- Bore Size: 57.00mm
- Piston Diameter: 56.94mm
- Engine Displacement (cm³): 125
- Stroke (mm): 50.00
- Recommended Clearance (mm): 0.06
- Compression Height (mm): 28.50
- Wossner Compression Ratio Type: 2-Stroke
- OEM Compression Ratio Type: 2-Stroke

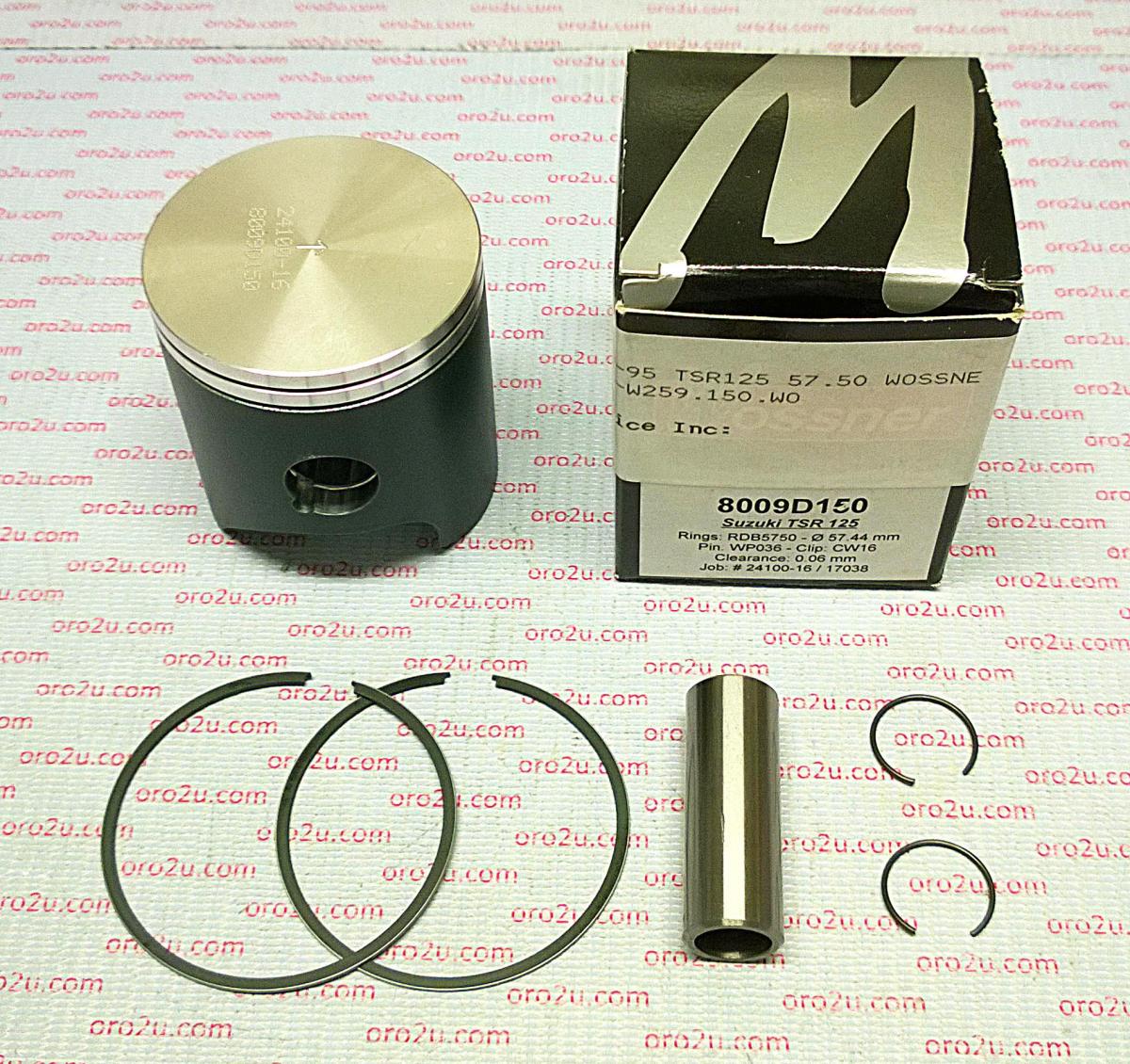

Included Components:
- Piston
- Lock Ring (PN# CW16)
- Piston Pin (PN# WP036)
- Ring Set (PN# RSB5700 x 2)
