PISTON KIT 89-95 TSR125 56.50, FORGED WOSSNER 8009D050
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

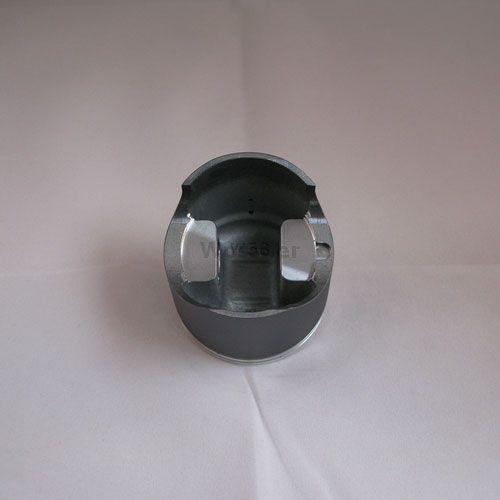

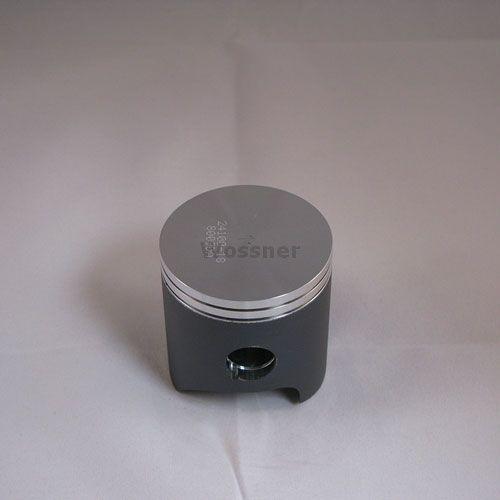

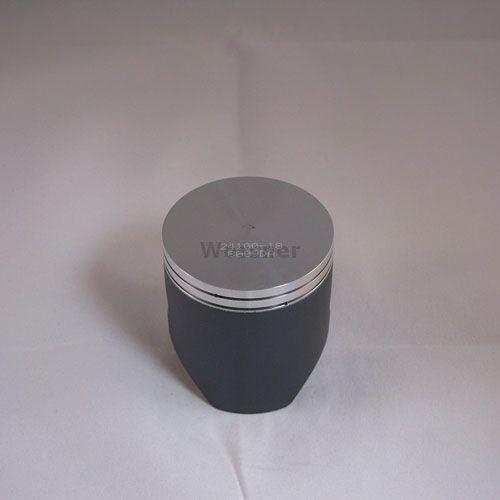

Wossner forged piston kit with a 56.50mm bore and 56.44mm diameter. Manufactured in Germany, this piston offers superior strength and design, ensuring optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Features include forged construction for superior strength, optimized heat transfer for efficient combustion, and an elliptical design for uniform load distribution. Specifications: Bore 56.50mm, Diameter 56.44mm, Display (cm³) 125, Stroke (mm) 50.00, Clearance (mm) 0.06, Wossner Compression Ratio 2-Stroke, OEM Compression Ratio 2-Stroke, Compression Height (mm) 28.50. Cross-Reference OEM Part Numbers: Wossner Piston Suzuki TSR125 (PN# 8009D050), Lock P/N: CW16, Pin P/N: WP036, Ring Set P/N: RSB5650 x 2.
- SKU
- 56-W259.050.WO
- Brand
- Wossner
- Availability
- In Stock (2)
Fitments (7)
| Make | Model | Year |
|---|---|---|
| SUZUKI | TSR 125 | 1989 |
| SUZUKI | TSR 125 | 1990 |
| SUZUKI | TSR 125 | 1991 |
| SUZUKI | TSR 125 | 1992 |
| SUZUKI | TSR 125 | 1993 |
| SUZUKI | TSR 125 | 1994 |
| SUZUKI | TSR 125 | 1995 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 56.5mm
- Variant Id
- 255277
FULL DESCRIPTION
Wossner Forged Piston Kit 56.50mm for TSR125
Enhance the performance and durability of your motorcycle with this premium forged piston kit from Wossner. Engineered for precision and strength, this piston is designed to deliver optimal performance for your TSR125. Its advanced construction ensures superior heat transfer to the cylinder walls, promoting efficient combustion and reliable operation under demanding conditions.
The innovative elliptical design of the piston provides a uniform bearing surface, even under heat expansion. This intelligent design reduces localized pressure points and evenly distributes thrust loads, effectively preventing piston collapse and ensuring a longer lifespan for your engine components.
Key Features:
- Forged Construction: Offers exceptional strength and resilience for high-performance applications.
- Optimized Heat Transfer: Promotes efficient combustion and helps maintain optimal engine temperatures.
- Elliptical Design: Ensures uniform load distribution and reduces wear by preventing localized pressure.
- German Engineering: Manufactured in Germany, signifying high standards of quality and precision.
Specifications:
- Bore: 56.50mm
- Diameter: 56.44mm
- Display (cm³): 125
- Stroke (mm): 50.00
- Clearance (mm): 0.06
- Compression Height (mm): 28.50
