PISTON KIT 89-90 RM80 48.50, WOSSNER 8191D100 SUZUKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

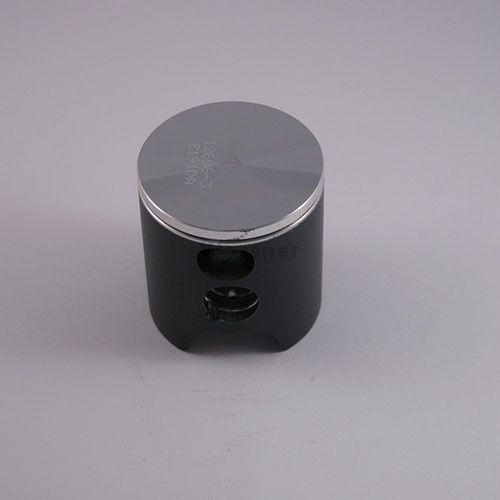

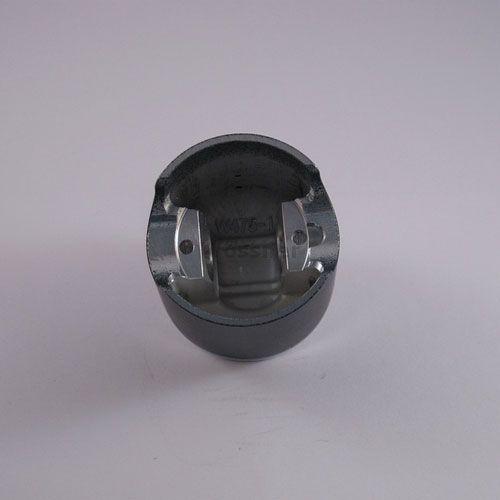

Wossner forged piston kit with a +1.00mm oversize bore (actual 48.45mm) for Suzuki RM80 models from 1989 to 1990. The forged aluminium construction provides high durability and strength, with a heat-efficient design for optimal combustion temperature management. The piston's elliptical profile improves bearing surface and load distribution, making it suitable for high-stress 2-stroke engine applications. Manufactured in Germany. Specifications: Bore Size 48.50mm (+1.00 oversize), Actual Bore 48.45mm, Compression Height 27.00mm, Clearance 0.05mm, Stroke 46.80mm, Displacement 82 cm³. Wossner part number 8191D100.
- SKU
- 56-W579+100.WO
- Brand
- Wossner
- Availability
- In Stock (2)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 48.50mm
- Variant Id
- 256984
FULL DESCRIPTION
Wossner Forged Piston Kit 48.50mm Bore - Suzuki RM80 1989-1990
Upgrade your Suzuki RM80 with this high-performance Wossner forged piston kit. Designed for the 1989 and 1990 model years, this kit features a +1.00mm oversize bore for enhanced performance. The piston boasts a forged aluminum construction, providing superior strength and thermal resistance crucial for demanding 2-stroke applications. Its innovative elliptical design ensures balanced thrust load distribution, minimizing stress and the risk of piston failure. Precision manufactured in Germany for exceptional quality and reliability.
Key Features
- Forged piston for exceptional durability and strength under high engine loads.
- Heat-efficient design promotes optimal combustion temperature management.
- Elliptical piston profile enhances bearing surface and load distribution for improved longevity.
- Optimized for 2-stroke engine applications.
- Manufactured to exacting standards in Germany.
Specifications
- Bore Size: 48.50mm (+1.00 oversize)
- Actual Bore: 48.45mm
- Compression Height: 27.00mm
- Clearance: 0.05mm
- Stroke: 46.80mm
- Displacement: 82 cm³
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
Component Details
- Wossner Piston Part Number: 8191D100
- Included Ring Set: RSB4850
- Included Lock Clips: CW14
- Included Piston Pin: WP058
