PISTON KIT 88-92 LT250 69.00, WOSSNER 8259D200 SUZUKI ATV

£133.58Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner 8259D200 piston kit for Suzuki LT250 ATV models 1988-1992. Features a 69.00 mm bore for +2.00 mm oversize applications. Manufactured in Germany with forged construction for high strength and durability. Optimized for efficient heat transfer and features an elliptical profile for even thrust load distribution and to prevent piston failure. Kit includes all essential components for engine rebuild. Specifications: Bore Size 69.00 mm, Actual Bore Diameter 68.94 mm, Stroke 70.00 mm, Display Displacement 246 cm³, Clearance 0.06 mm, Compression Ratio (Wossner and OEM) 2-stroke, Compression Height 37.20 mm. Includes Wossner part numbers: Piston Kit 8259D200, Lock CW18, Pin WP033, Ring Set RDB6900. Part No. 56-W571+2.00.WO. Weight 352g.

Specifications
SKU
56-W571+2.00.WO
Brand
Wossner
Availability
In Stock (1)
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
69.0mm
Variant Id
256924
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner 8259D200 Piston Kit

This Wossner 8259D200 piston kit is engineered for high-performance engine rebuilding. It features a forged construction for superior strength and durability, ensuring reliable operation under demanding conditions. The piston is designed with an elliptical profile that promotes uniform bearing surface contact during thermal expansion. This innovative design helps to distribute heat effectively from the combustion chamber to the cylinder wall, minimizing localized pressure points and reducing the risk of piston collapse. Precision-manufactured in Germany, this kit provides an optimal solution for engine restorations.

Key Features

  • Forged piston construction offers exceptional strength and longevity.
  • Elliptical piston design ensures even thrust load distribution.
  • Optimized for efficient heat transfer to prevent overheating.
  • Minimizes localized pressure to enhance piston durability.
  • Precision-engineered and manufactured in Germany.

Specifications

  • Bore Size: 69.00 mm
  • Actual Bore Diameter: 68.94 mm
  • Stroke: 70.00 mm
  • Displacement: 246 cm³
  • Clearance: 0.06 mm
  • Compression Ratio: 2-stroke (Wossner and OEM)
  • Compression Height: 37.20 mm

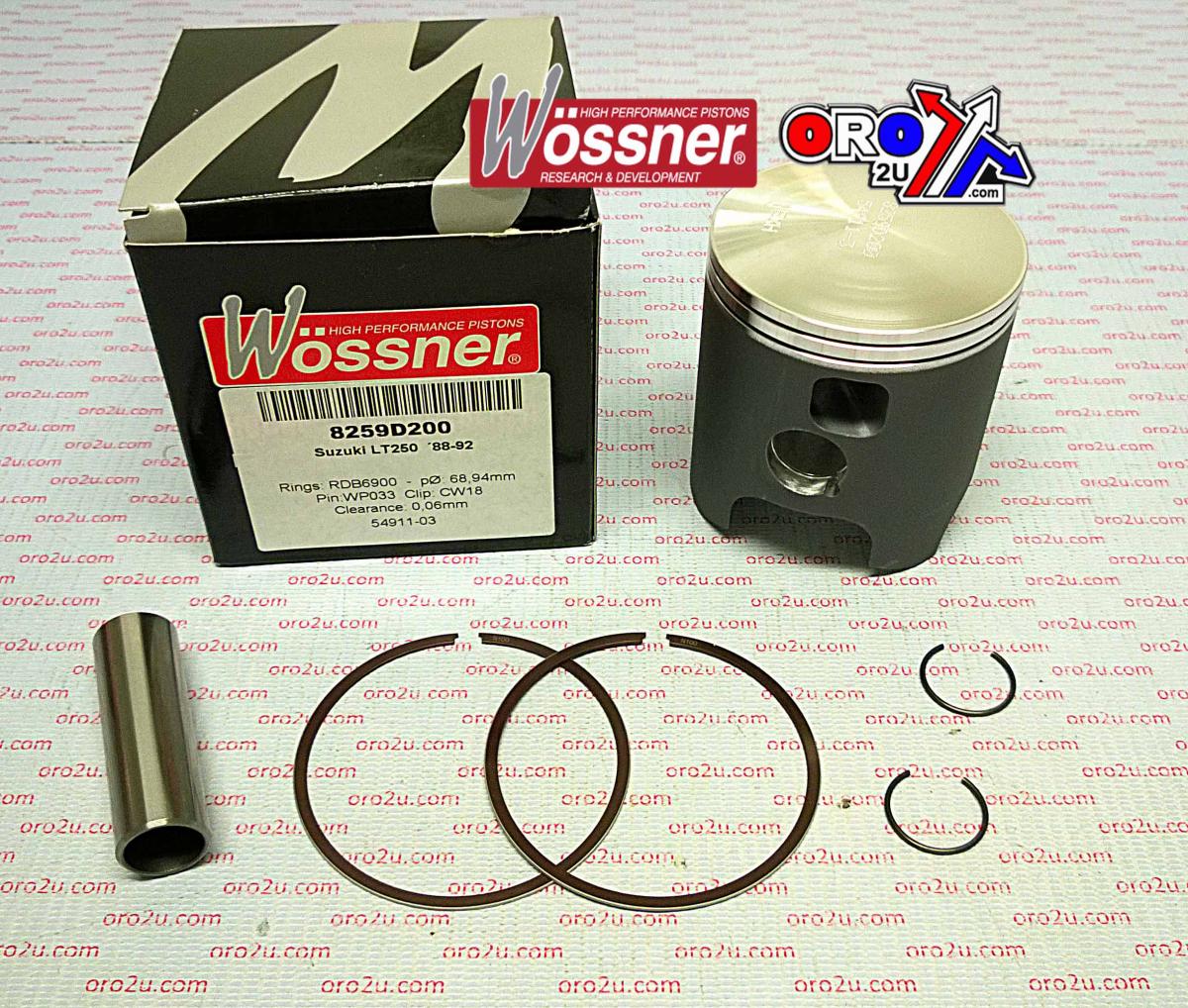

Kit Components

  • Piston Kit: 8259D200
  • Lock: CW18
  • Pin: WP033
  • Ring Set: RDB6900
