2Bros Parts

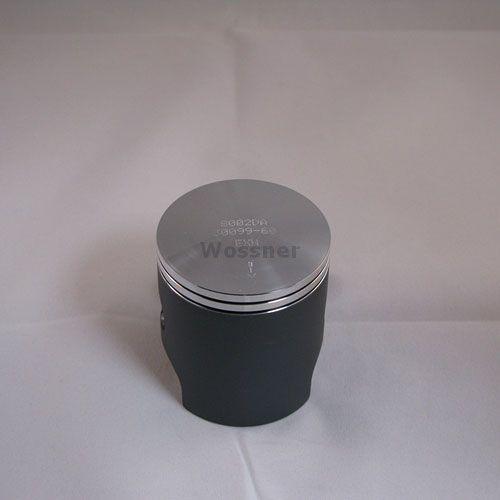

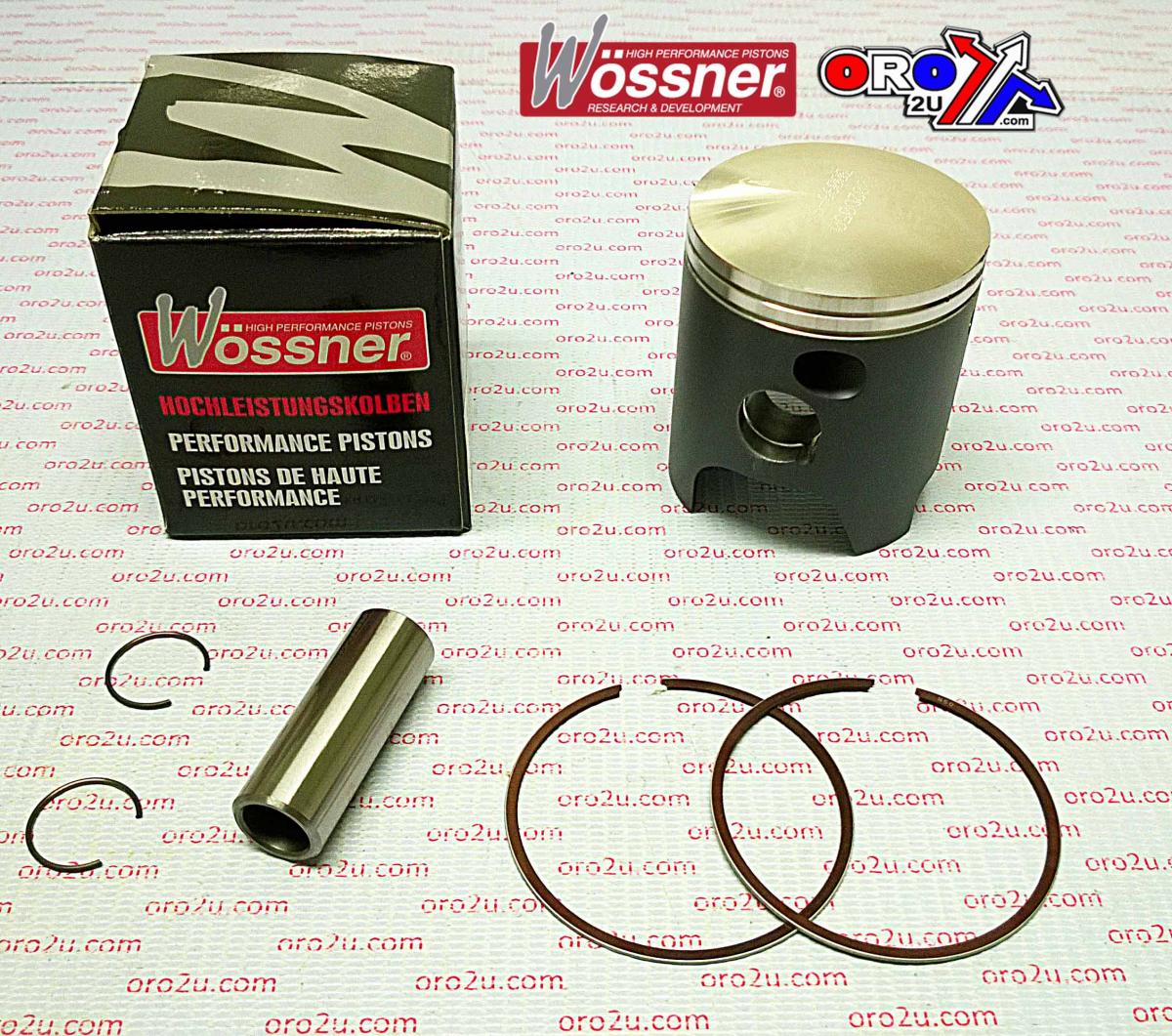

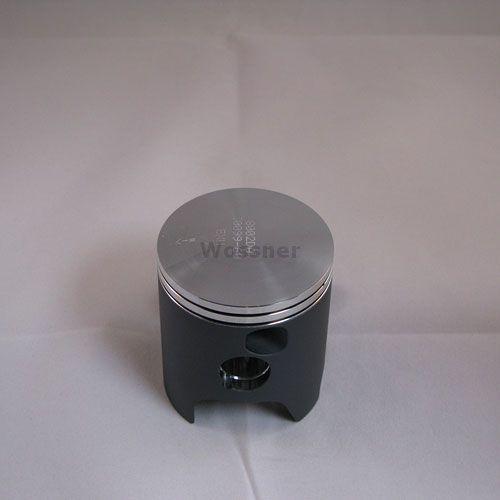

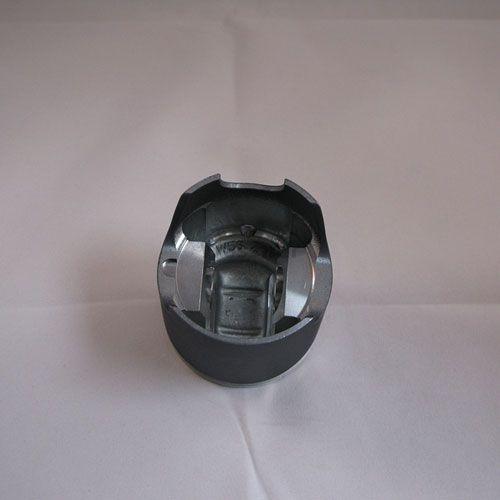

PISTON KIT 88-08 DTR125 59.00, FORGED WOSSNER 8002D300

£125.40
1

Wossner forged piston kit with an 88-08 DTR125 fitment. This piston kit, part number 8002D300, features a 59.00mm bore size and is forged for superior strength and durability. It is engineered with an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. This piston optimizes heat transfer for efficient combustion chamber performance. Manufactured in Germany. Specifications include an actual bore diameter of 58.94mm, 124 cm³ displacement, 50.70mm stroke, 0.06mm clearance, 29.90mm compression height, and uses lock part number CW16, pin part number WP036, and ring set part number RSB5900 x 2.

Specifications
SKU
56-W224.300
Brand
Wossner
Availability
In Stock (1)

Fitments (119)

MakeModelYear
KTM125 LC21997
KTM125 LC21998
KTM125 LC21999
KTM125 LC22000
YAMAHADT 1251991
YAMAHADT 1251992
YAMAHADT 1251993
YAMAHADT 1251994
YAMAHADT 1251995
YAMAHADT 1251996
YAMAHADT 1251997
YAMAHADT 1251998
YAMAHADT 1251999
YAMAHADT 1252000
YAMAHADT 1252001
YAMAHADT 1252002
YAMAHADT 1252003
YAMAHADT 1252004
YAMAHADT 1252005
YAMAHADT 1252006
YAMAHADT E 1251991
YAMAHADT E 1251992
YAMAHADT E 1251993
YAMAHADT E 1251994
YAMAHADT E 1251995
YAMAHADT E 1251996
YAMAHADT E 1251997
YAMAHADT E 1251998
YAMAHADT E 1251999
YAMAHADT E 1252000
YAMAHADT E 1252001
YAMAHADT E 1252002
YAMAHADT E 1252003
YAMAHADT E 1252004
YAMAHADT E 1252005
YAMAHADT E 1252006
YAMAHADT R 1251988
YAMAHADT R 1251989
YAMAHADT R 1251990
YAMAHADT R 1251991
YAMAHADT R 1251992
YAMAHADT R 1251993
YAMAHADT R 1251994
YAMAHADT R 1251995
YAMAHADT R 1251996
YAMAHADT R 1251997
YAMAHADT R 1251998
YAMAHADT R 1251999
YAMAHADT R 1252000
YAMAHADT R 1252001
YAMAHADT R 1252002
YAMAHADT R 1252003
YAMAHADT R 1252004
YAMAHADT R 1252005
YAMAHADT R 1252006
YAMAHADT X 1251991
YAMAHADT X 1251992
YAMAHADT X 1251993
YAMAHADT X 1251994
YAMAHADT X 1251995
YAMAHADT X 1251996
YAMAHADT X 1251997
YAMAHADT X 1251998
YAMAHADT X 1251999
YAMAHADT X 1252000
YAMAHADT X 1252001
YAMAHADT X 1252002
YAMAHADT X 1252003
YAMAHADT X 1252004
YAMAHADT X 1252005
YAMAHADT X 1252006
YAMAHADTR 1251991
YAMAHADTR 1251992
YAMAHADTR 1251993
YAMAHADTR 1251994
YAMAHADTR 1251995
YAMAHADTR 1251996
YAMAHADTR 1251997
YAMAHADTR 1251998
YAMAHADTR 1251999
YAMAHADTR 1252000
YAMAHADTR 1252001
YAMAHADTR 1252002
YAMAHADTR 1252003
YAMAHADTR 1252004
YAMAHADTR 1252005
YAMAHADTR 1252006
YAMAHADTRE R 1251991
YAMAHADTRE R 1251992
YAMAHADTRE R 1251993
YAMAHADTRE R 1251994
YAMAHADTRE R 1251995
YAMAHADTRE R 1251996
YAMAHADTRE R 1251997
YAMAHADTRE R 1251998
YAMAHADTRE R 1251999
YAMAHADTRE R 1252000
YAMAHADTRE R 1252001
YAMAHADTRE R 1252002
YAMAHADTRE R 1252003
YAMAHADTRE R 1252004
YAMAHADTRE R 1252005
YAMAHADTRE R 1252006
YAMAHADTX EURO 1251991
YAMAHADTX EURO 1251992
YAMAHADTX EURO 1251993
YAMAHADTX EURO 1251994
YAMAHADTX EURO 1251995
YAMAHADTX EURO 1251996
YAMAHADTX EURO 1251997
YAMAHADTX EURO 1251998
YAMAHADTX EURO 1251999
YAMAHADTX EURO 1252000
YAMAHADTX EURO 1252001
YAMAHADTX EURO 1252002
YAMAHADTX EURO 1252003
YAMAHADTX EURO 1252004
YAMAHADTX EURO 1252005
YAMAHADTX EURO 1252006
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
59mm
Variant Id
255111
Shipping OptionsShown at checkout
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit 59.00mm for Yamaha 125cc 2-Stroke Engines

Enhance the performance and durability of your Yamaha DT125R, DT125E, DT125X, or TZR125 (1988-2008) with this high-quality Wossner forged piston kit. Engineered for superior strength and optimal heat transfer, this piston kit is designed to withstand the demands of high-performance engines.

Key Features:

  • Forged Construction: Crafted from forged aluminum for exceptional strength and resistance to wear, ensuring longevity and reliability.
  • Elliptical Design: Features an innovative elliptical piston skirt that adapts to heat expansion, maintaining a uniform bearing surface, reducing localized pressure, and preventing piston collapse.
  • Optimized Heat Transfer: Designed for efficient heat dissipation, contributing to better combustion chamber performance and overall engine efficiency.
  • Precision Manufacturing: Manufactured in Germany to exacting standards for guaranteed quality and performance.

Specifications:

  • Bore Size: 59.00mm
  • Actual Bore Diameter: 58.94mm
  • Displacement: 124 cm³
  • Stroke: 50.70mm
  • Clearance: 0.06mm
  • Compression Height: 29.90mm
  • Lock Part Number: CW16
  • Pin Part Number: WP036
  • Ring Set Part Number: RSB5900 x 2
