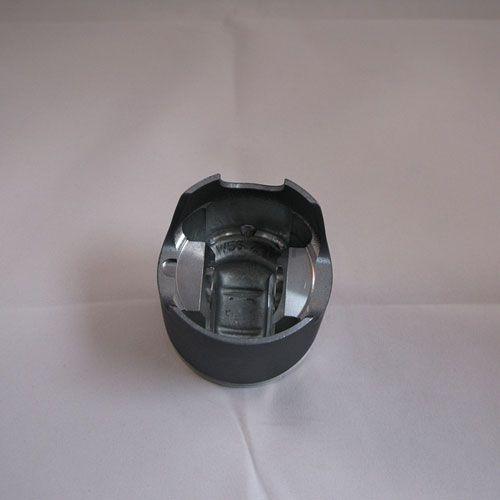

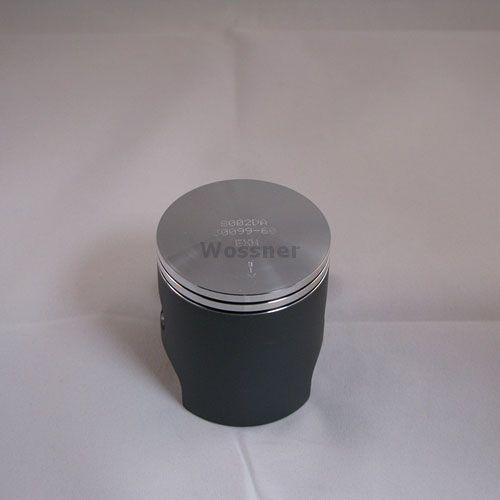

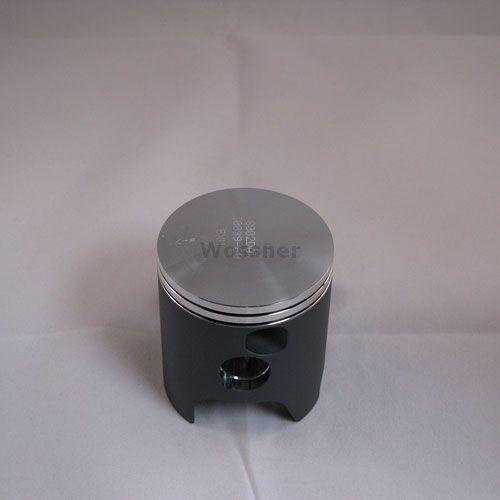

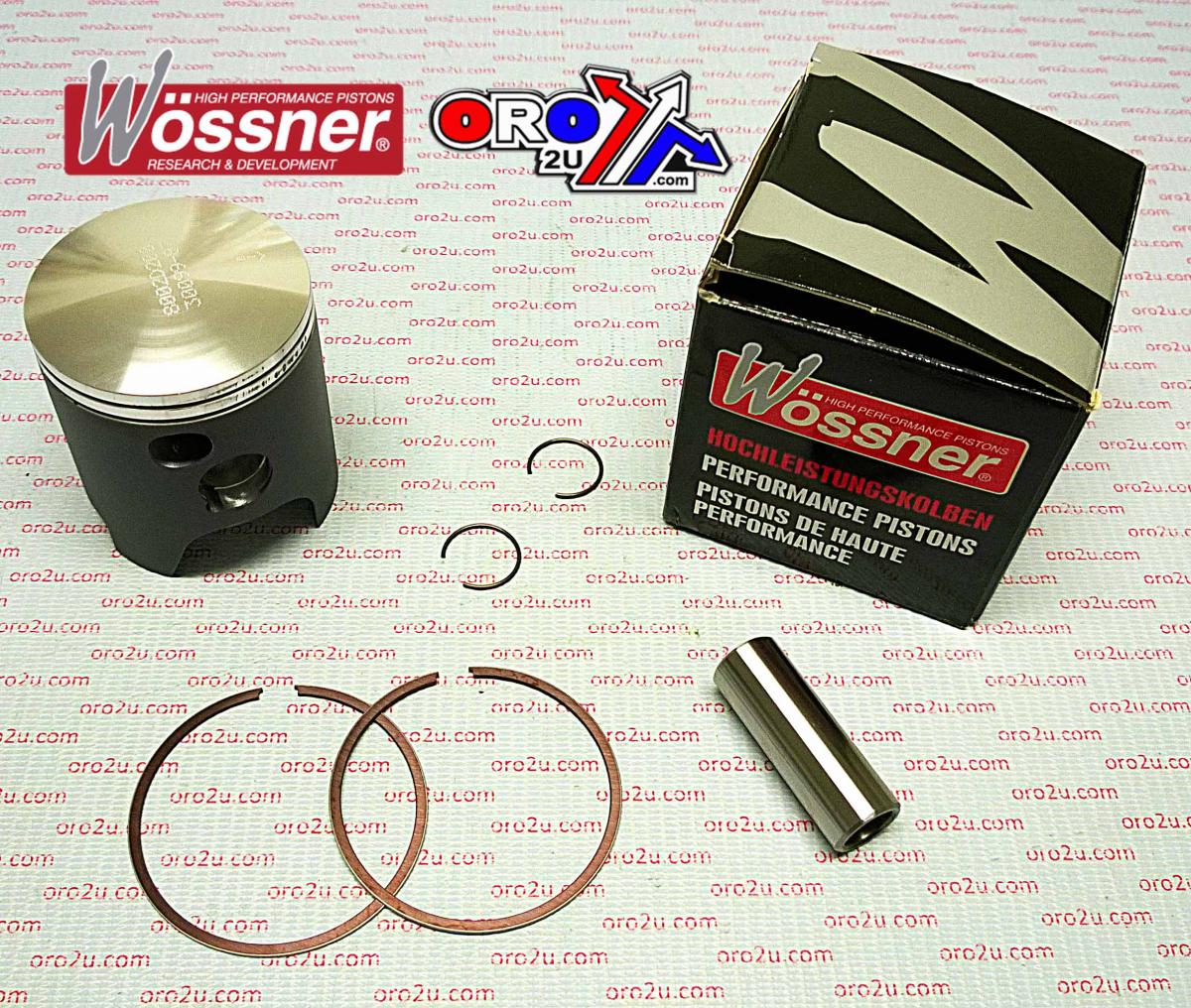

PISTON KIT 88-08 DTR125 58.50, FORGED WOSSNER 8002D250

Wossner Forged Piston Kit 58.50mm for Yamaha 125cc 2-Stroke

Elevate the performance and durability of your Yamaha 125cc motorcycle with this premium Wossner forged piston kit. Engineered for superior strength and optimal heat transfer, this piston is designed to withstand the demands of high-performance riding.

The key innovation in this Wossner piston is its elliptical design. This advanced feature ensures a uniform bearing surface even under significant heat expansion. By distributing pressure evenly, it effectively reduces localized stress and prevents piston collapse, leading to a longer lifespan and more consistent engine performance.

Manufactured with precision in Germany, Wossner pistons are renowned for their quality and performance. This kit is an ideal upgrade for riders seeking enhanced reliability and power.

Key Features:

• Forged Construction: Provides exceptional strength and durability compared to cast pistons.
• Optimized Heat Transfer: Promotes efficient combustion chamber performance and helps manage engine temperatures.
• Elliptical Design: Ensures even thrust load distribution, reducing wear and preventing piston collapse under thermal stress.
• Precision German Engineering: Manufactured to the highest standards for reliability and performance.

Specifications:

• Bore Size: 58.50mm
• Actual Bore Diameter: 58.44mm
• Displacement: 124 cm³
• Stroke: 50.70mm
• Clearance: 0.06mm
• Compression Height: 29.90mm
• Lock Part Number: CW16
• Pin Part Number: WP036
• Ring Set Part Number: RSB5850 x 2
