PISTON KIT 88-08 DTR125 56.00, FORGED WOSSNER 8002DA

£115.06

4.1 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner forged piston kit. Features an elliptical design for uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Engineered for superior strength and optimal heat transfer. Bore Size: 56.00mm. Actual Bore Diameter: 55.94mm. Displacement: 124 cm³. Stroke: 50.70mm. Clearance: 0.06mm. Compression Height: 29.90mm. Lock Part Number: CW16. Pin Part Number: WP036. Ring Set Part Number: RSB5600 x 2. Manufactured in Germany.

Specifications
SKU
56-W224.000.WO
Brand
Wossner
Availability
In Stock (4)

Fitments (119)

MakeModelYear
KTM125 LC21997
KTM125 LC21998
KTM125 LC21999
KTM125 LC22000
YAMAHADT 1251991
YAMAHADT 1251992
YAMAHADT 1251993
YAMAHADT 1251994
YAMAHADT 1251995
YAMAHADT 1251996
YAMAHADT 1251997
YAMAHADT 1251998
YAMAHADT 1251999
YAMAHADT 1252000
YAMAHADT 1252001
YAMAHADT 1252002
YAMAHADT 1252003
YAMAHADT 1252004
YAMAHADT 1252005
YAMAHADT 1252006
YAMAHADT E 1251991
YAMAHADT E 1251992
YAMAHADT E 1251993
YAMAHADT E 1251994
YAMAHADT E 1251995
YAMAHADT E 1251996
YAMAHADT E 1251997
YAMAHADT E 1251998
YAMAHADT E 1251999
YAMAHADT E 1252000
YAMAHADT E 1252001
YAMAHADT E 1252002
YAMAHADT E 1252003
YAMAHADT E 1252004
YAMAHADT E 1252005
YAMAHADT E 1252006
YAMAHADT R 1251988
YAMAHADT R 1251989
YAMAHADT R 1251990
YAMAHADT R 1251991
YAMAHADT R 1251992
YAMAHADT R 1251993
YAMAHADT R 1251994
YAMAHADT R 1251995
YAMAHADT R 1251996
YAMAHADT R 1251997
YAMAHADT R 1251998
YAMAHADT R 1251999
YAMAHADT R 1252000
YAMAHADT R 1252001
YAMAHADT R 1252002
YAMAHADT R 1252003
YAMAHADT R 1252004
YAMAHADT R 1252005
YAMAHADT R 1252006
YAMAHADT X 1251991
YAMAHADT X 1251992
YAMAHADT X 1251993
YAMAHADT X 1251994
YAMAHADT X 1251995
YAMAHADT X 1251996
YAMAHADT X 1251997
YAMAHADT X 1251998
YAMAHADT X 1251999
YAMAHADT X 1252000
YAMAHADT X 1252001
YAMAHADT X 1252002
YAMAHADT X 1252003
YAMAHADT X 1252004
YAMAHADT X 1252005
YAMAHADT X 1252006
YAMAHADTR 1251991
YAMAHADTR 1251992
YAMAHADTR 1251993
YAMAHADTR 1251994
YAMAHADTR 1251995
YAMAHADTR 1251996
YAMAHADTR 1251997
YAMAHADTR 1251998
YAMAHADTR 1251999
YAMAHADTR 1252000
YAMAHADTR 1252001
YAMAHADTR 1252002
YAMAHADTR 1252003
YAMAHADTR 1252004
YAMAHADTR 1252005
YAMAHADTR 1252006
YAMAHADTRE R 1251991
YAMAHADTRE R 1251992
YAMAHADTRE R 1251993
YAMAHADTRE R 1251994
YAMAHADTRE R 1251995
YAMAHADTRE R 1251996
YAMAHADTRE R 1251997
YAMAHADTRE R 1251998
YAMAHADTRE R 1251999
YAMAHADTRE R 1252000
YAMAHADTRE R 1252001
YAMAHADTRE R 1252002
YAMAHADTRE R 1252003
YAMAHADTRE R 1252004
YAMAHADTRE R 1252005
YAMAHADTRE R 1252006
YAMAHADTX EURO 1251991
YAMAHADTX EURO 1251992
YAMAHADTX EURO 1251993
YAMAHADTX EURO 1251994
YAMAHADTX EURO 1251995
YAMAHADTX EURO 1251996
YAMAHADTX EURO 1251997
YAMAHADTX EURO 1251998
YAMAHADTX EURO 1251999
YAMAHADTX EURO 1252000
YAMAHADTX EURO 1252001
YAMAHADTX EURO 1252002
YAMAHADTX EURO 1252003
YAMAHADTX EURO 1252004
YAMAHADTX EURO 1252005
YAMAHADTX EURO 1252006
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
56mm
Variant Id
255093
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

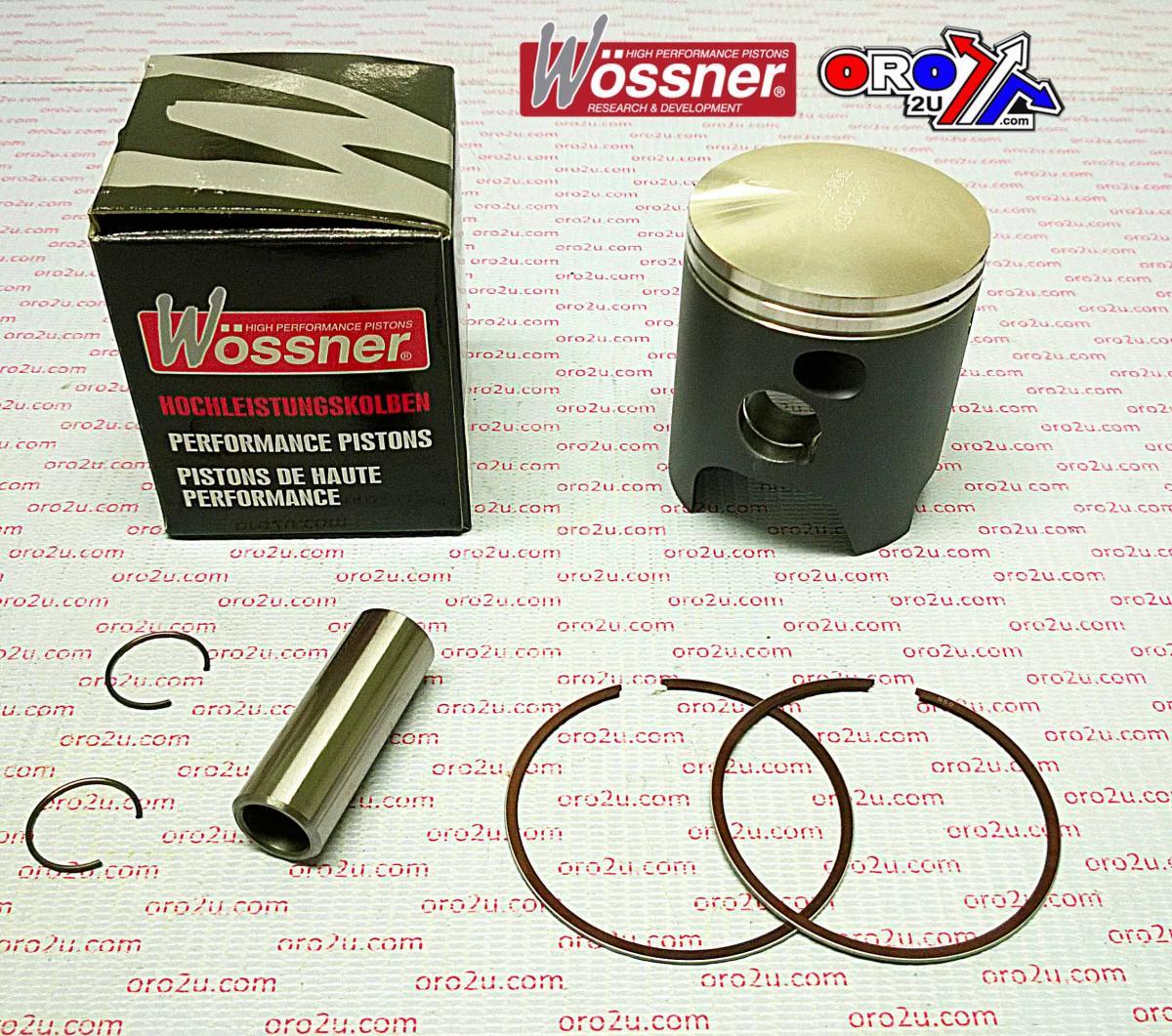

Wossner Forged Piston Kit 56.00mm

Enhance the performance and durability of your motorcycle's engine with this Wossner forged piston kit. Engineered for superior strength and optimal heat transfer, this piston is designed to withstand the demands of high-performance riding.

The advanced elliptical design ensures uniform bearing surface under heat expansion, effectively reducing localized pressure and preventing piston collapse for consistent engine operation. Manufactured with precision in Germany, Wossner pistons are renowned for their quality and reliability.

Key Features:

  • Forged construction for increased strength and longevity
  • Optimized heat transfer for improved combustion efficiency
  • Elliptical design for even thrust load distribution
  • Reduces localized pressure and prevents piston collapse
  • High-quality manufacturing in Germany

Specifications:

  • Bore Size: 56.00mm
  • Actual Bore Diameter: 55.94mm
  • Displacement: 124 cm³
  • Stroke: 50.70mm
  • Clearance: 0.06mm
  • Compression Height: 29.90mm
  • Lock Part Number: CW16
  • Pin Part Number: WP036
  • Ring Set Part Number: RSB5600 x 2
