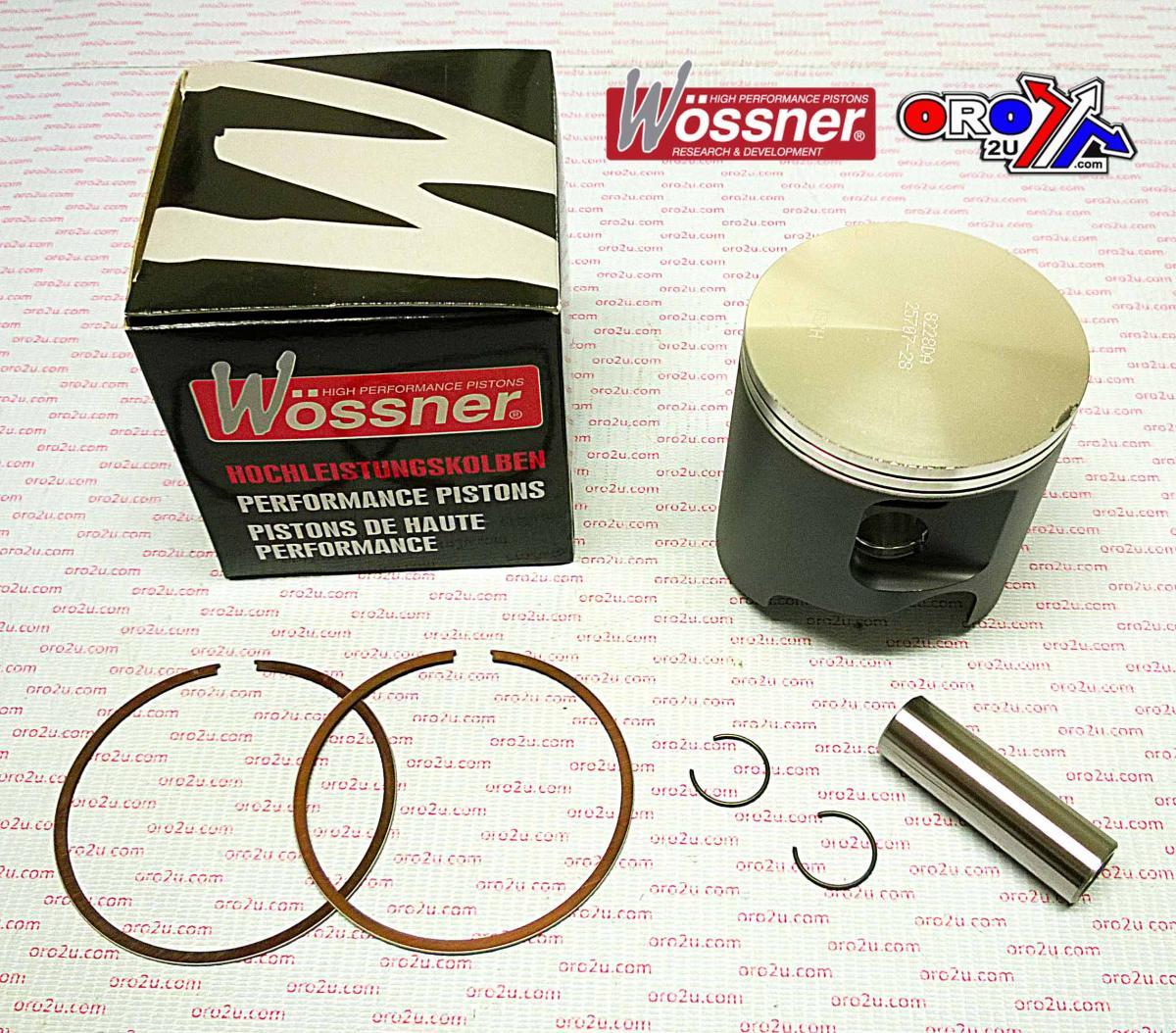

PISTON KIT 88-04 KX500 87.00, WOSSNER 8228D100 KAWASAKI MX

Wossner forged piston kit 8228D100 is an oversize replacement with an 87mm bore, designed for high durability and performance. This piston maintains optimal heat dissipation and mechanical balance under thermal load. The elliptical profile enhances the bearing surface during expansion, ensuring even thrust distribution and reducing the likelihood of piston collapse. Made in Germany, this piston is crafted for off-road and competition applications where reliability and precision are critical. Features include a forged piston for maximum strength and resistance to stress, an elliptical design for balanced thermal expansion and pressure distribution, an enhanced heat flow path from the combustion chamber to the cylinder wall, and German manufacturing for consistent quality and precision. Specifications include a bore size of 87.00 mm (actual diameter 86.93 mm), a stroke of 86.00 mm, a display volume of 500 cm³, a compression height of 37.50 mm, and a clearance of 0.07 mm. This is a 2-stroke piston. Includes Wossner piston kit 8228D100, lock CW19, pin WP019, ring set RSC8700 x2, rod P2039.
