PISTON KIT 88-00 KX80 48.50, WOSSNER 8197D050 KAWASAKI MX

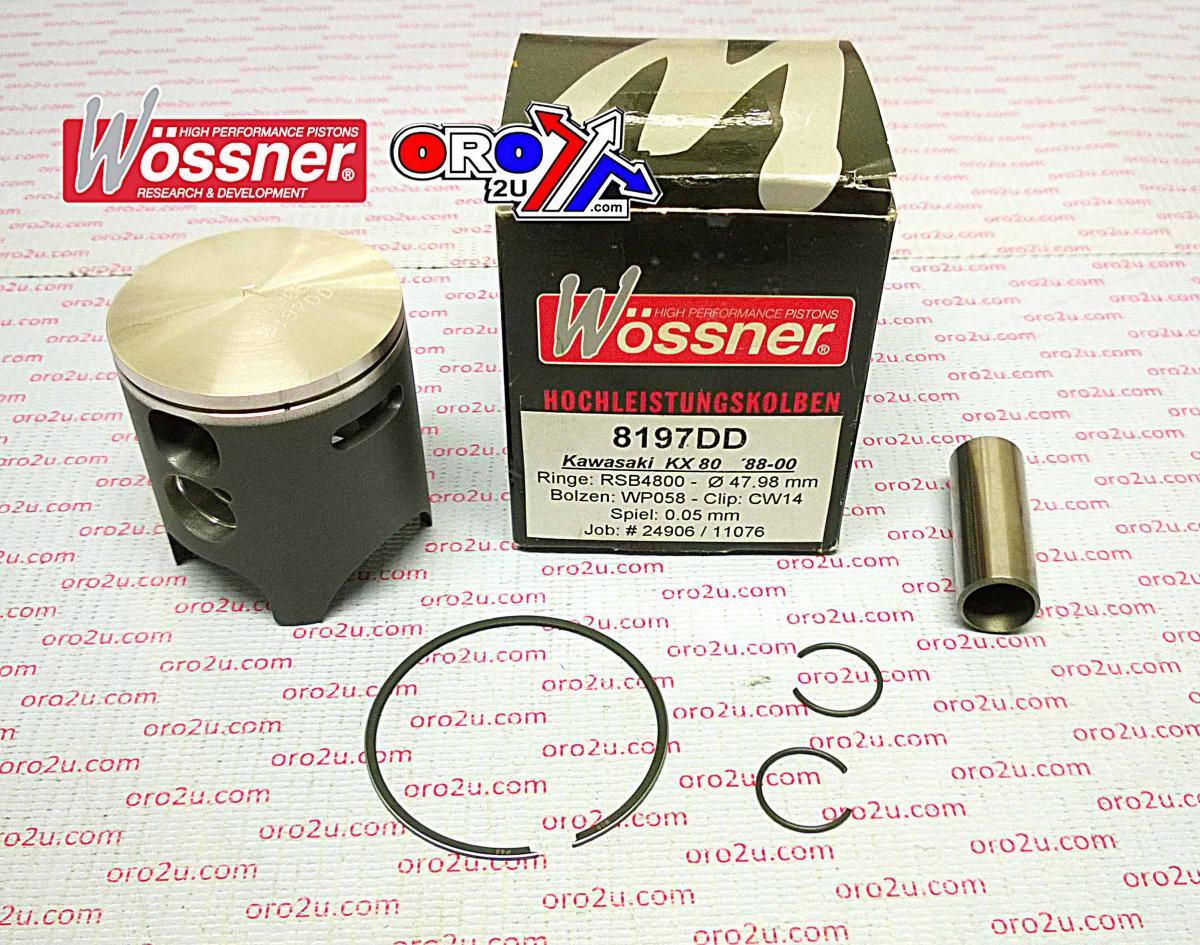

Wossner forged piston kit with a 48.50mm bore size (48.45mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit features an elliptical design that promotes uniform bearing surfaces under heat expansion, ensuring effective heat transfer and evenly distributing thrust loads to prevent piston collapse. Features include forged piston construction for maximum strength and durability, optimized heat transfer from the combustion chamber to cylinder walls, an elliptical design for uniform bearing surface during thermal expansion, and reduced localized pressure to prevent piston collapse. Specifications include a bore size of 48.50mm (actual 48.45mm), display displacement of 80 cm³, stroke of 45.80mm, clearance of 0.05mm, Wossner compression ratio of 2-stroke, OEM compression ratio of 2-stroke, compression height of 26.00mm. Cross-reference OEM part numbers include Piston Kit: 8197D050, Lock: CW14, Pin: WP058, and Ring Set: RSB4850.
- SKU
- 56-W644+P02.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner 48.50mm Forged Piston Kit for Kawasaki KX80
Enhance the performance and durability of your Kawasaki KX80 with this high-quality Wossner forged piston kit. Designed for models from 1988 to 2000 featuring a US bore, this kit is precision-engineered in Germany for superior reliability.
The advanced elliptical design of the piston ensures uniform bearing surfaces, even under extreme thermal expansion. This intelligent engineering promotes effective heat transfer from the combustion chamber to the cylinder walls and distributes thrust loads evenly, preventing piston collapse and reducing localised pressure for optimal engine performance.
Key Features:
- Forged piston construction for maximum strength and extended lifespan.
- Engineered for optimized heat transfer, improving combustion efficiency.
- Elliptical piston design maintains consistent bearing surface during thermal expansion.
- Helps prevent piston collapse by reducing concentrated pressure points.
- Manufactured to exacting standards in Germany.
Specifications:
- Bore Size: 48.50mm (actual 48.45mm)
- Display Displacement: 80 cm³
- Stroke: 45.80mm
- Clearance: 0.05mm
- Compression Height: 26.00mm
