PISTON KIT 88-00 KX80 48.00 C, WOSSNER 8197DC KAWASAKI MX

£81.96Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Wossner forged piston kit with a 48.02mm bore size (47.97mm actual) designed for Kawasaki KX80 models from 1988 to 2000. This piston kit features an elliptical design to promote uniform bearing surfaces under heat expansion, enhancing heat transfer and evenly distributing thrust loads to prevent piston collapse. Specifications include a bore size of 48.02mm (actual 47.97mm), 80 cm³ displacement, 45.80mm stroke, 0.05mm clearance, 2-stroke compression ratio (Wossner and OEM), and 26.00mm compression height. Cross-reference OEM part numbers are Piston Kit: 8197DC, Lock: CW14, Pin: WP058, and Ring Set: RSB4800. Manufactured in Germany.

Specifications
SKU
56-W644+C.WO
Brand
Wossner
Availability
In Stock (1)
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
48.00mm
Variant Id
257263
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

Wossner Forged Piston Kit for Kawasaki KX80 (1988-2000)

This Wossner forged piston kit is engineered for high-performance Kawasaki KX80 motorcycles manufactured between 1988 and 2000. Designed with a focus on durability and optimal engine operation, this kit ensures reliable performance for your off-road machine.

Key Features:

  • Forged Construction: Provides superior strength and resistance to extreme operating conditions.
  • Elliptical Design: Promotes uniform bearing surfaces even under heat expansion, improving heat transfer and distributing thrust loads to prevent piston collapse.
  • Optimized Heat Transfer: Engineered to efficiently transfer heat from the combustion chamber to the cylinder walls, contributing to stable engine temperatures.
  • German Manufacturing: Built to exacting standards in Germany for quality and reliability.

Specifications:

  • Bore Size: 48.02mm (actual measured bore 47.97mm)
  • Stroke: 45.80mm
  • Clearance: 0.05mm
  • Compression Height: 26.00mm
  • 2-Stroke Design: Suitable for 2-stroke engine configurations.

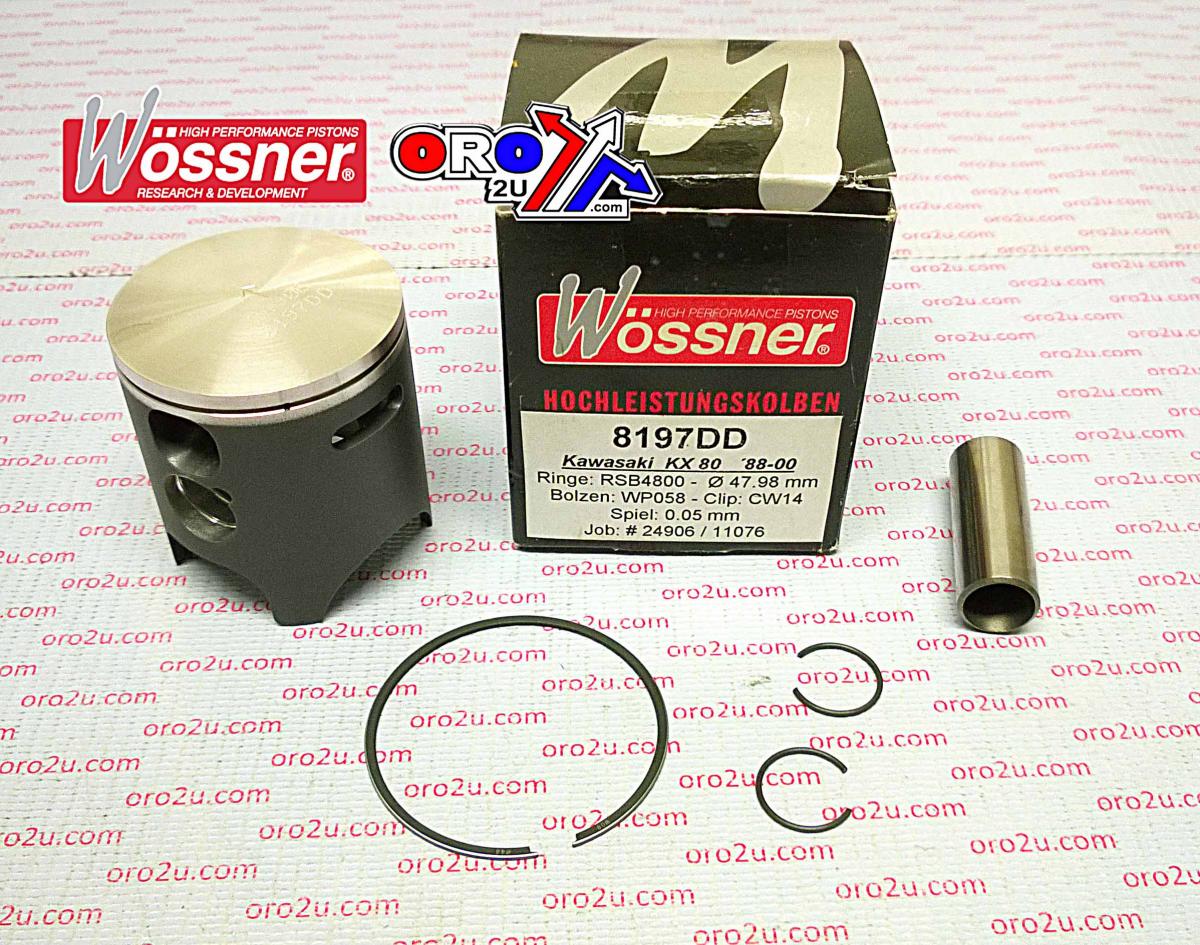

Included Components:

  • Piston Kit
  • Lock (Part Number: CW14)
  • Pin (Part Number: WP058)
  • Ring Set (Part Number: RSB4800)
