PISTON KIT 88-00 KX80 47.00 B, WOSSNER 8234DB KAWASAKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

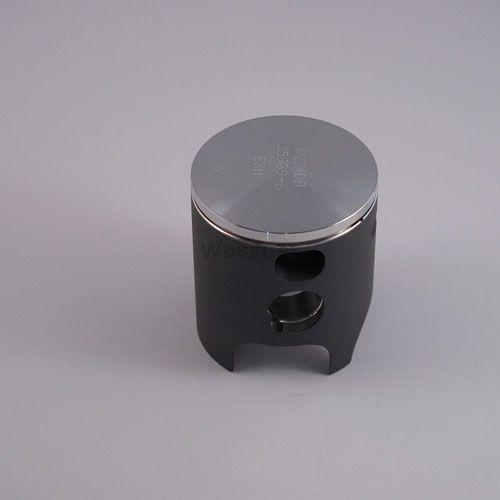

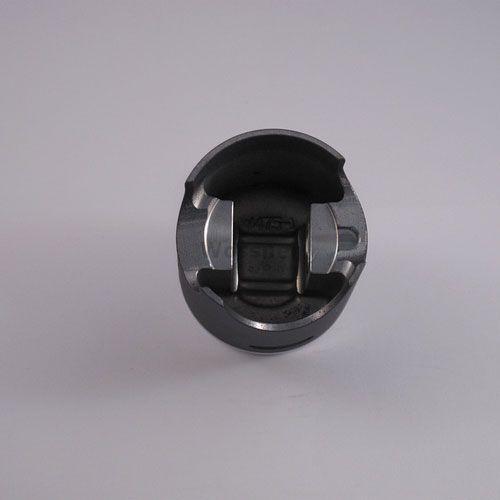

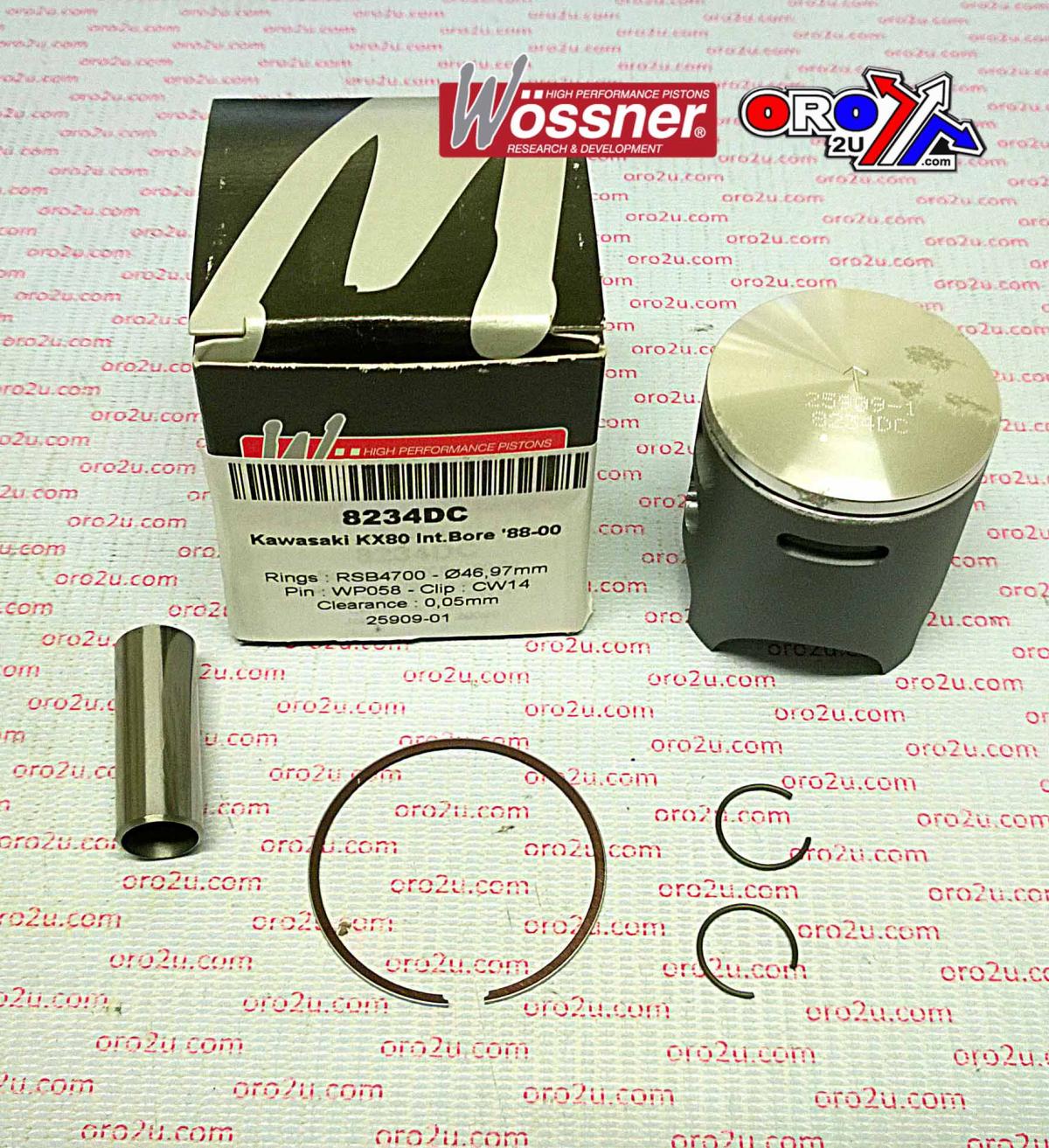

Wossner forged piston kit with a 47.01mm bore (46.96mm actual) engineered for Kawasaki KX80 models from 1988 to 2000. Precision-forged in Germany, the piston's elliptical design improves thermal expansion behaviour, allowing even stress distribution and reducing the risk of piston failure. Features include high-strength forged piston for performance and durability, elliptical shape to distribute thrust loads uniformly under heat expansion, and optimized heat transfer from the combustion chamber to the cylinder wall. Manufactured in Germany with precise tolerances for international bore specs. Specifications: Bore Size 47.01mm (Actual: 46.96mm), Compression Height 26.00mm, Clearance 0.05mm, Stroke 45.80mm, Displacement 79 cm³, Wossner Compression Ratio 2-stroke, OEM Compression Ratio 2-stroke. Cross-reference OEM part numbers: Piston Kit 8234DB, Lock CW14, Pin WP058, Ring Set RSB4700, Rod P2005.
- SKU
- 56-W669.B.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (13)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KX 80 | 1988 |
| KAWASAKI | KX 80 | 1989 |
| KAWASAKI | KX 80 | 1990 |
| KAWASAKI | KX 80 | 1991 |
| KAWASAKI | KX 80 | 1992 |
| KAWASAKI | KX 80 | 1993 |
| KAWASAKI | KX 80 | 1994 |
| KAWASAKI | KX 80 | 1995 |
| KAWASAKI | KX 80 | 1996 |
| KAWASAKI | KX 80 | 1997 |
| KAWASAKI | KX 80 | 1998 |
| KAWASAKI | KX 80 | 1999 |
| KAWASAKI | KX 80 | 2000 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 47.00mm
- Variant Id
- 257380
FULL DESCRIPTION
Wossner Forged Piston Kit for Kawasaki KX80
Upgrade your Kawasaki KX80's performance and durability with this high-strength forged piston kit from Wossner. Precision-engineered in Germany, this piston features an advanced elliptical design that optimizes thermal expansion and ensures even stress distribution, significantly reducing the risk of piston failure under demanding conditions.
Key Features:
- High-strength forged construction for superior performance and longevity.
- Elliptical piston shape promotes uniform thrust load distribution during heat expansion.
- Optimized heat transfer from the combustion chamber to the cylinder wall.
- Manufactured in Germany to precise tolerances, accommodating international bore specifications.
Specifications:
- Bore Size: 47.01mm (Actual: 46.96mm)
- Compression Height: 26.00mm
- Clearance: 0.05mm
- Stroke: 45.80mm
- Displacement: 79 cm³
- Wossner Compression Ratio: 2-stroke
- OEM Compression Ratio: 2-stroke
