PISTON KIT 87-93 KTM125, WOSSNER 8011D050 FORGED MX
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

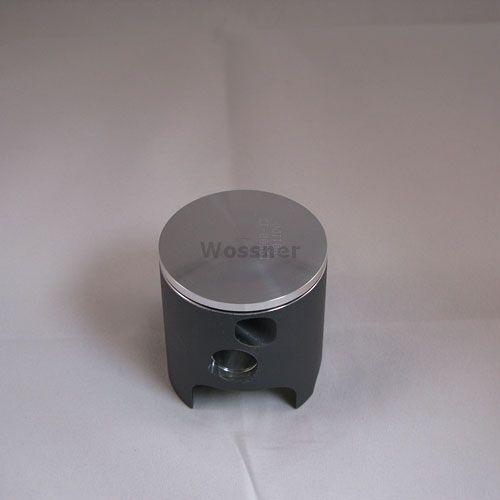

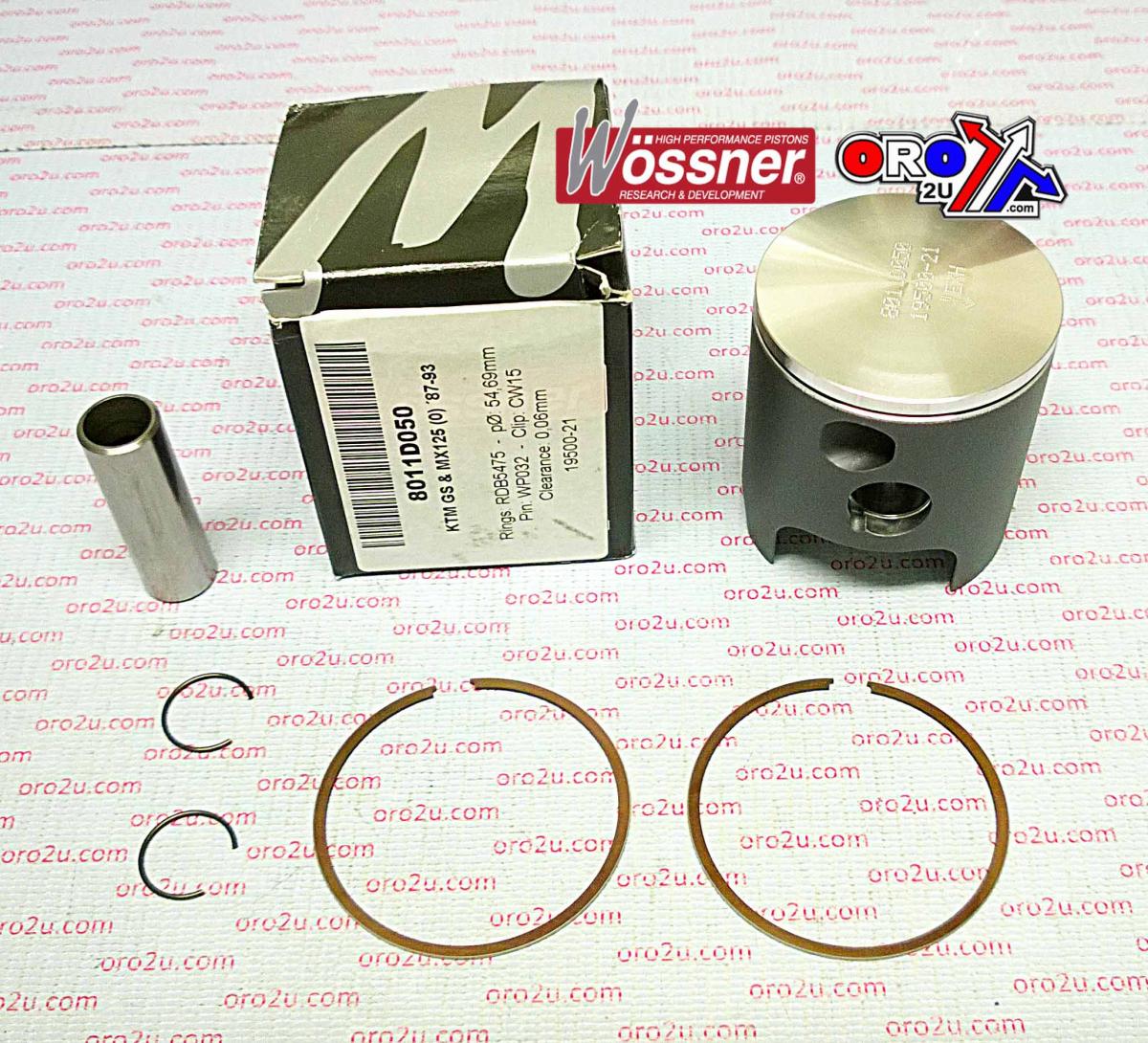

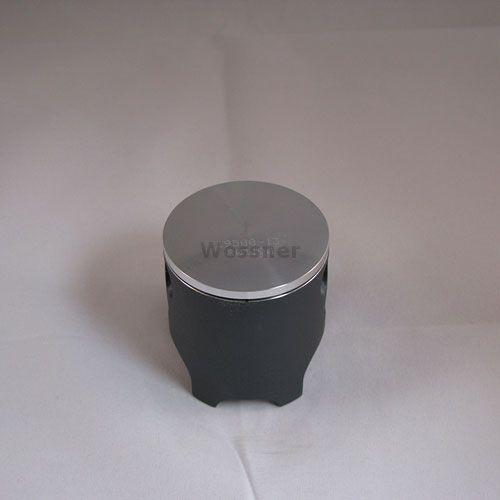

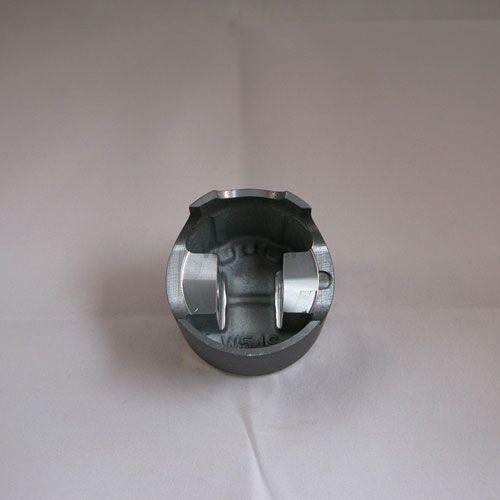

Wossner 8011D050 forged piston kit with a 54.69mm (+0.50 oversize) bore for 125cc engines. This high-performance piston enhances heat dissipation and structural reliability with an elliptical profile for even pressure distribution. Precision-engineered in Germany. Features high-strength forged construction, efficient heat transfer, and an elliptical design for even load distribution. Specifications include a 125cm³ displacement, 54.10mm stroke, 0.06mm piston-to-wall clearance, 28.00mm compression height, and a 2-stroke compression ratio. Includes Wossner Piston: 8011D050, Lock: CW15, Pin: WP032, Ring Set: RSB5475 x 2. Internal Reference Part No.: 56-W627_050.WO.
- SKU
- 56-W627_050.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 54.70mm
- Variant Id
- 257152
FULL DESCRIPTION
Wossner Forged Piston Kit for KTM 125cc
Enhance the performance and reliability of your KTM 125cc two-stroke engine with this high-quality Wossner forged piston kit. Designed for models produced between 1987 and 1993, this kit features a precision-engineered, oversized piston for optimal fit and function.
Key Features:
- High-strength forged piston construction for superior durability and longevity.
- Engineered for efficient combustion heat transfer to the cylinder wall, promoting optimal operating temperatures.
- Features an elliptical design to ensure even distribution of bearing surface and thrust loads, reducing stress and potential distortion under high thermal expansion.
- Precision manufactured in Germany, guaranteeing consistent build quality and reliable performance.
Specifications:
- Engine Displacement: 125 cm³
- Bore Size: 54.69mm (+0.50 oversize)
- Stroke: 54.10mm
- Piston to Wall Clearance: 0.06mm
- Compression Height: 28.00mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)
