PISTON KIT 87-07 YFS200 70.00, WOSSNER 8101D400 YAMAHA ATV
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply

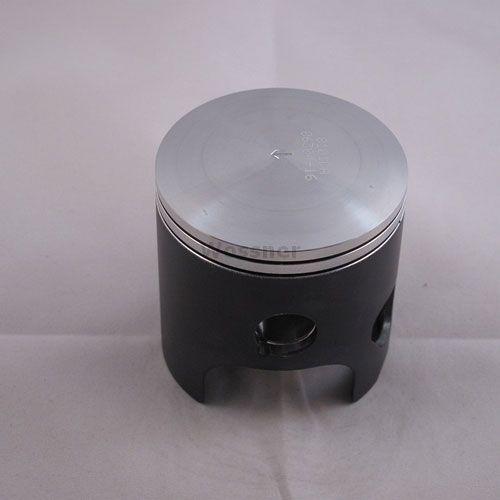

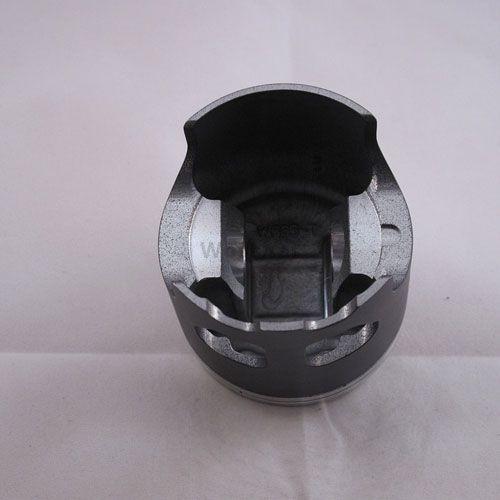

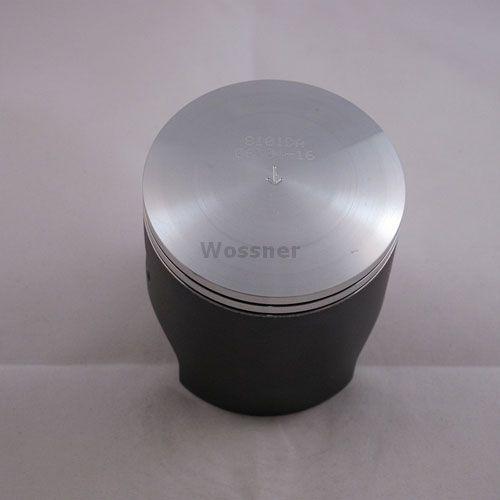

Wossner Forged Piston Kit 8101D400. This kit features a 70mm bore (+4.00mm) and is designed for enhanced performance and endurance. The piston has an elliptical profile to improve heat dissipation and load distribution, reducing wear. Constructed from forged aluminium, it offers strength and durability. Manufactured in Germany, this piston is tailored for two-stroke engine configurations. Specifications include a bore size of 70.00 mm (actual diameter 69.94 mm), stroke of 57.00 mm, display volume of 199 cm³, compression height of 29.90 mm, and a clearance of 0.06 mm. The kit includes piston, lock CW16, pin WP027, two ring sets RSB700, and rod P2030. Kit Part No: 56-W573+400.WO. Weight: 320g.
- SKU
- 56-W573+400.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 70.00mm
- Variant Id
- 256954
FULL DESCRIPTION
Wossner Forged Piston Kit 8101D400 - 70mm Bore (+4.00)
The Wossner 8101D400 forged piston kit is engineered for superior performance and durability in two-stroke engines. This kit features a 70mm bore, representing a 4.00mm increase over stock, which enhances engine displacement. Its advanced elliptical profile design promotes efficient heat dissipation and balanced load distribution, contributing to reduced wear and increased longevity.
Key Features:
- Forged aluminium construction for exceptional strength and resilience.
- Elliptical piston shape aids in even thermal expansion and load management.
- Optimised for effective heat transfer to cylinder walls.
- Precision manufactured in Germany to ensure high quality standards.
Specifications:
- Bore Size: 70.00 mm (actual diameter 69.94 mm)
- Stroke: 57.00 mm
- Displaced Volume: 199 cm³
- Compression Height: 29.90 mm
- Clearance: 0.06 mm
- Wossner Compression Ratio: 2-stroke

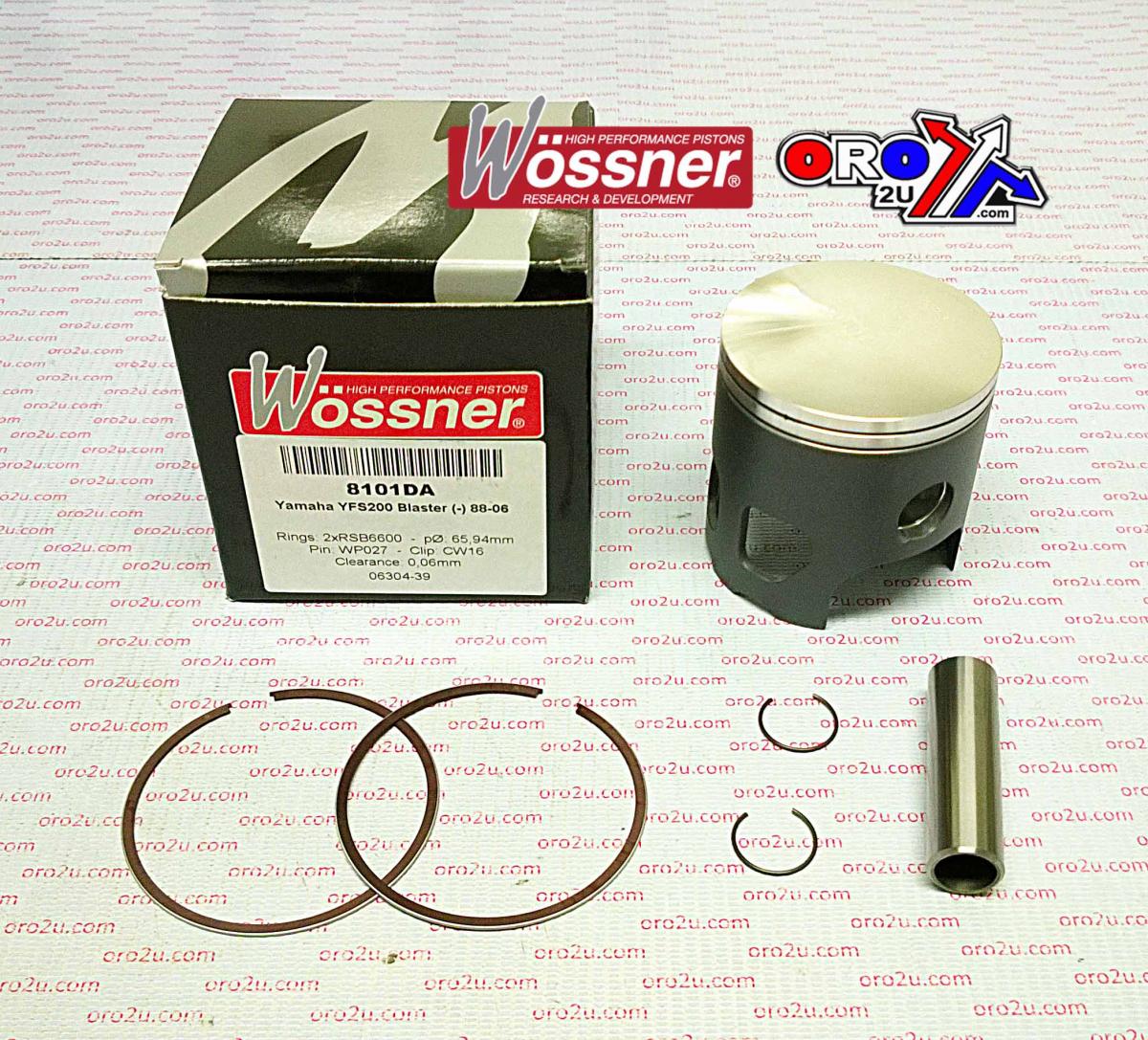

Kit Components:
- Piston Kit: 8101D400
- Lock: CW16
- Pin: WP027
- Ring Set: RSB700 x2
- Rod: P2030
