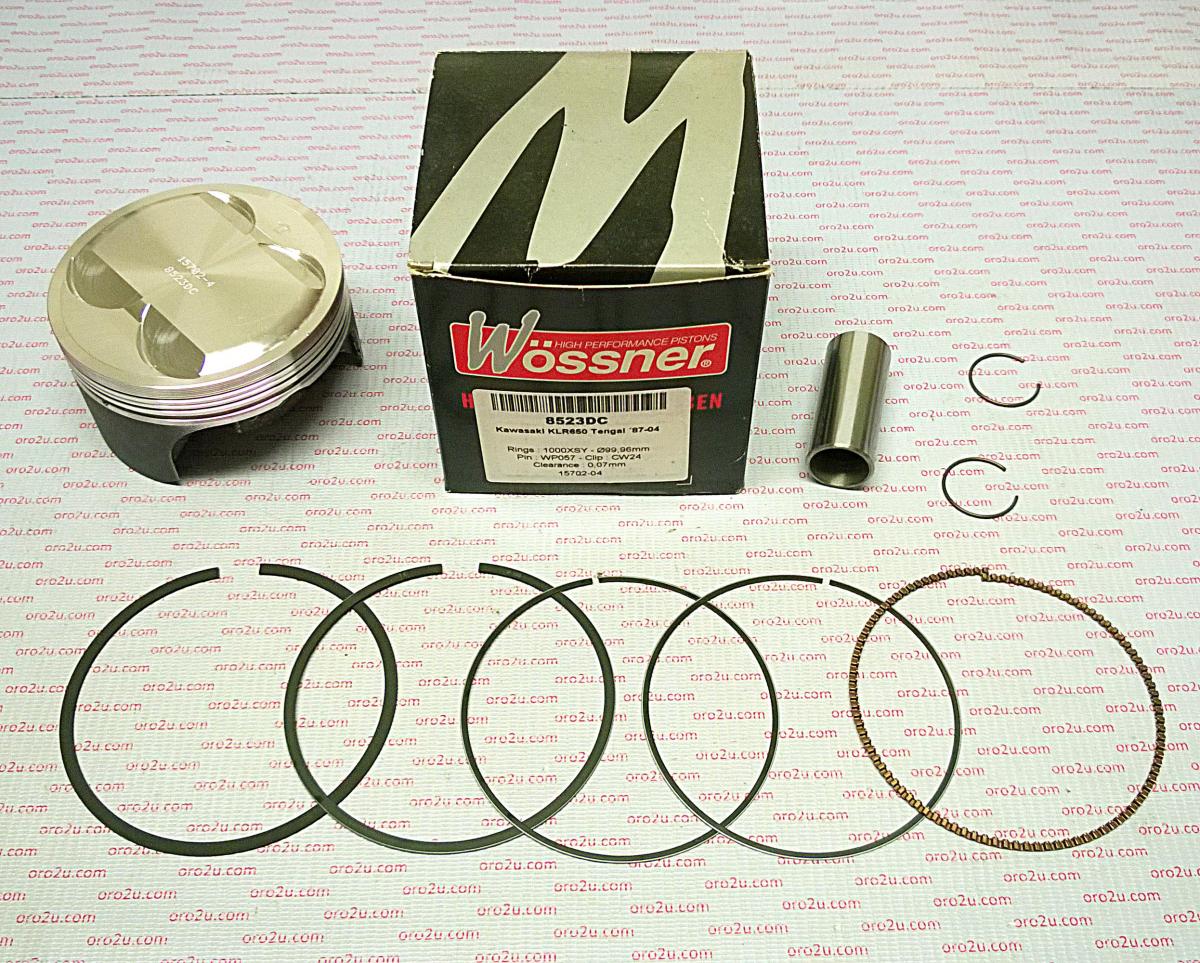

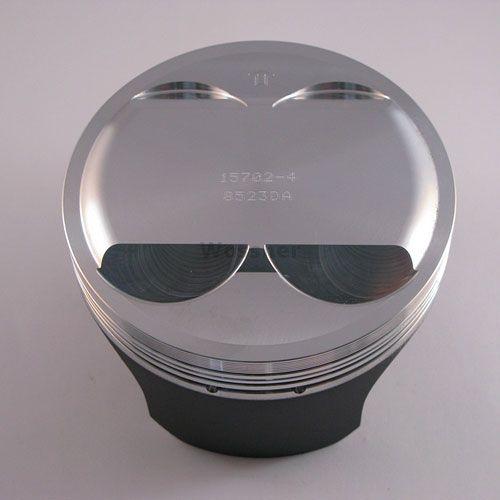

PISTON KIT 87-04 KLR650 101.00, FORGED WOSSNER 8523D100
Wossner forged piston kit with a 101mm bore. Engineered for optimal combustion chamber heat transfer and uniform bearing surface under heat expansion, reducing localized pressure and piston collapse. Manufactured in Germany for durability and precision. Features a forged piston for superior strength and design, optimized heat transfer to cylinder walls, and an elliptical design for uniform bearing surface and even thrust load distribution. Specifications: Bore: 101mm (+1.00mm oversize), Standard size piston (PN# 8523D100), Lock Part Number: CW24, Pin Part Number: WP057, Ring Set Part Number: 1010XSY, Displacement: 651 cm³, Stroke: 83.00mm, Clearance: 0.06mm, Wossner Compression Ratio: 11.00:1, OEM Compression Ratio: 9.50:1, Dome Volume: -24.90 cm³, Compression Height: 29.50mm.
- SKU
- 56-W174_100.WO
- Brand
- Wossner
- Availability
- In Stock (1)
FULL DESCRIPTION
Wossner Forged Piston Kit 101.00mm Bore for KLR650
Enhance your motorcycle's performance and durability with this premium Wossner forged piston kit. Engineered with precision in Germany, this kit features a 101mm bore, offering a +1.00mm oversize for specific engine builds. Wossner pistons are designed for optimal combustion chamber heat transfer, ensuring uniform temperature distribution and preventing localized pressure points. The advanced elliptical design provides a consistent bearing surface, even under extreme heat expansion, which helps to minimize piston collapse and maintain optimal performance.
Key Features:
- Forged piston construction for superior strength and resilience.
- Optimized heat transfer capabilities for consistent cylinder wall temperatures.
- Elliptical piston design for even thrust load distribution and reduced wear.
- Precision manufactured in Germany for exceptional quality and reliability.
- Designed to reduce localized pressure and prevent piston collapse under heat.
Specifications:
- Bore Size: 101.00mm (1.00mm Oversize)
- Compression Ratio: 11.00:1 (Wossner) / 9.50:1 (OEM)
- Dome Volume: -24.90 cm³
- Compression Height: 29.50mm
- Stroke: 83.00mm
- Piston Clearance: 0.06mm
- Displacement: 651 cm³
- Includes Lock Part Number: CW24
- Includes Pin Part Number: WP057
- Includes Ring Set Part Number: 1010XSY
