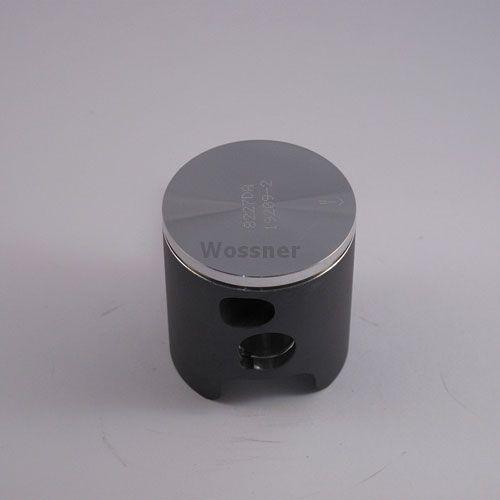

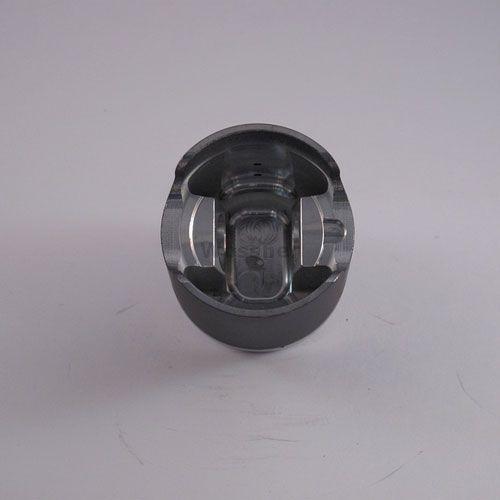

PISTON KIT 86-87 RM80 48.50, WOSSNER 8227D100 SUZUKI MX
Wossner piston kit featuring a 48.50mm bore size (48.45mm actual) and 80 cm³ displacement. This kit includes a piston, lock CW14, pin WP058, and ring set RSB4850. Precision-forged in Germany, the piston is designed for optimal durability and thermal conductivity. Its elliptical shape promotes uniform load distribution under thermal expansion, reducing localised pressure and minimising the risk of piston collapse. Specifications include a 46.80 mm stroke, 0.05 mm clearance, 27.00 mm compression height, and a 2-stroke compression ratio. Manufactured in Germany. Part number 8227D100.
- SKU
- 56-W542+100.WO
- Brand
- Wossner
- Availability
- In Stock (2)
FULL DESCRIPTION
Wossner Piston Kit for Suzuki RM80 (1986-1987) - 48.50mm Bore
Upgrade your Suzuki RM80 with this high-performance Wossner piston kit. Precision-forged in Germany, this kit is engineered for superior durability and optimal engine performance. The advanced elliptical design ensures even load distribution and efficient heat transfer, minimizing stress and maximizing the lifespan of your engine.
Key Features
- Forged construction for enhanced strength and longevity.
- Elliptical piston design promotes uniform load distribution under thermal expansion, reducing localized pressure and preventing piston collapse.
- Optimized heat transfer from the combustion chamber to the cylinder walls for improved thermal efficiency.
- Manufactured in Germany to exacting standards.
Specifications
- Bore Size: 48.50mm (actual 48.45mm)
- Engine Displacement: 80 cm³
- Stroke: 46.80 mm
- Piston Clearance: 0.05 mm
- Compression Height: 27.00 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)

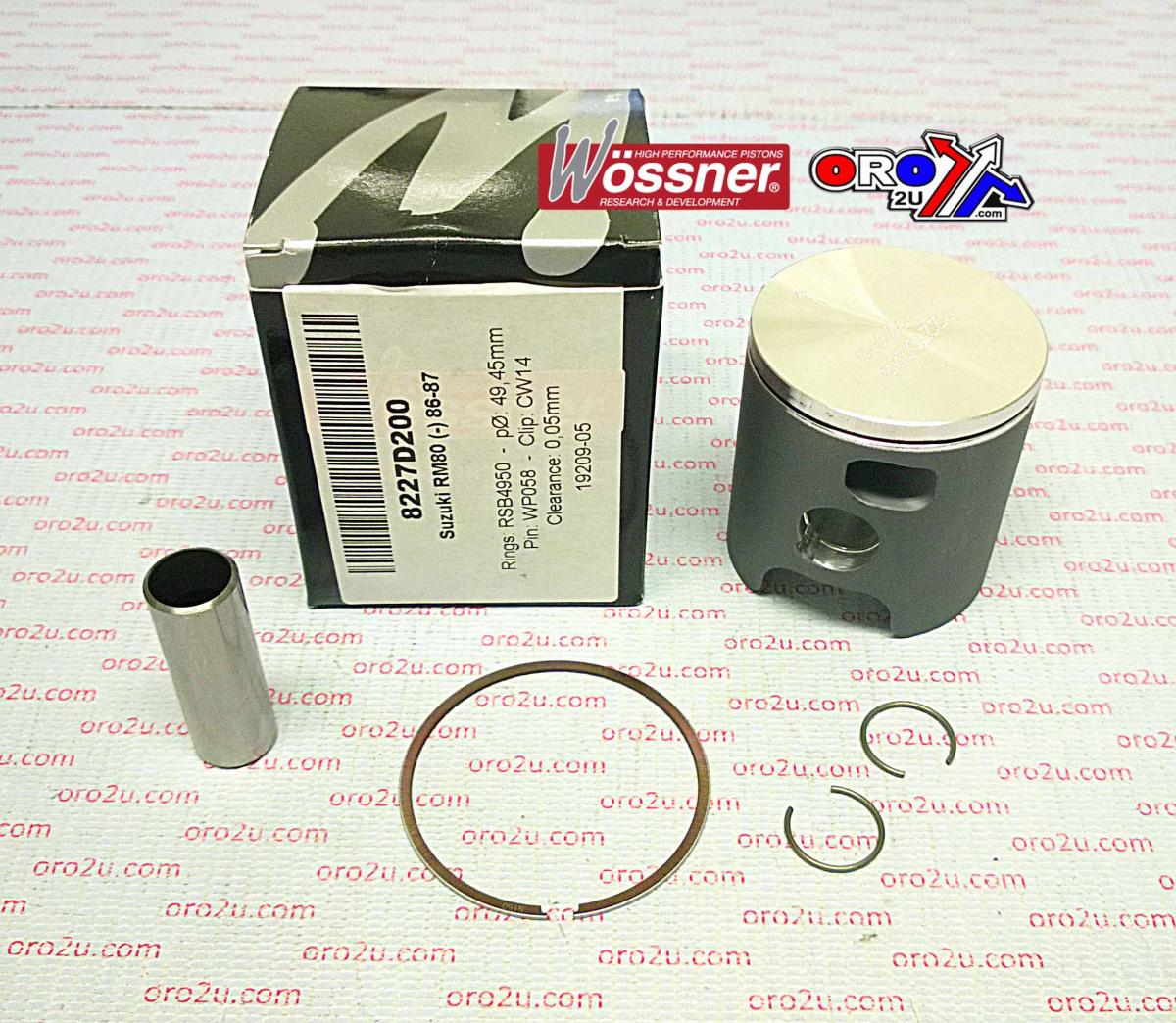

Included Components
- Piston
- Piston Pin
- Piston Rings
- Circlips
