PISTON KIT 86-09 KDX200 67.00, WOSSNER 8093D100 KAWASAKI MX
4.4 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with 18+, T&Cs apply
Wossner forged piston kit with 67.00 mm bore and 66.94 mm piston diameter. This kit is designed for 2-stroke applications, featuring an elliptical design for optimal heat transfer and uniform load distribution. Precision forged in Germany for accuracy and durability. Specifications include 198 cm³ engine displacement, 58.00 mm stroke, 0.06 mm clearance, and 32.00 mm compression height. Wossner part number 8093D100.
- SKU
- 56-W597+P4.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 67.00mm
- Variant Id
- 257031
FULL DESCRIPTION

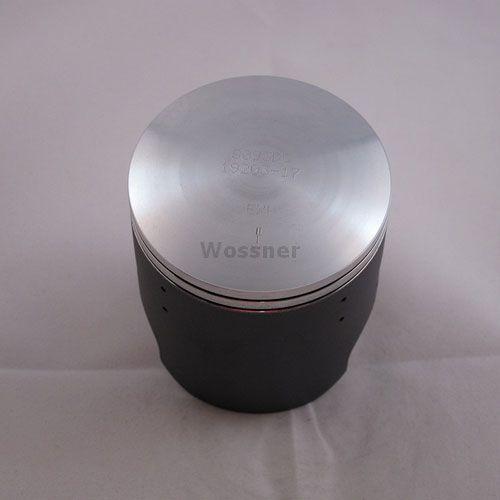

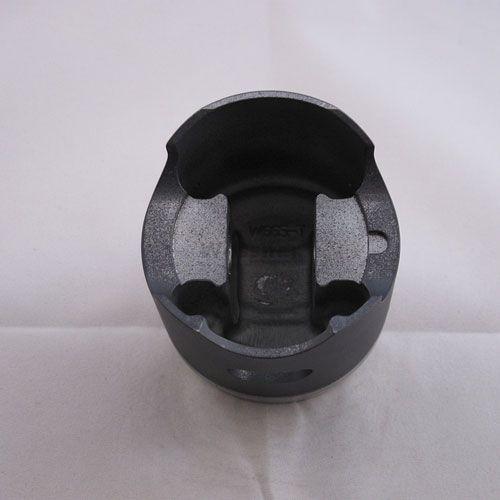

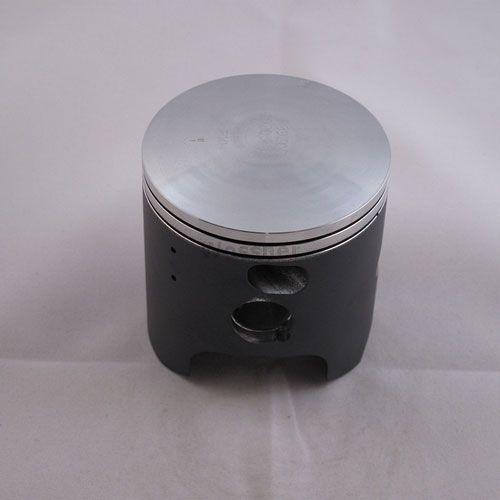

Wossner Forged Piston Kit 67.00mm Bore
This Wossner forged piston kit is engineered for high-performance 2-stroke applications. The piston features an elliptical design and precision forging to ensure optimal heat transfer, uniform load distribution, and enhanced resistance to thermal stress. Manufactured in Germany for superior accuracy and durability.
Key Features
- Forged Piston Construction: Provides superior strength and resilience.
- Efficient Heat Dissipation: Designed for effective transfer of combustion heat to cylinder walls.
- Elliptical Piston Design: Promotes even thrust load distribution and minimizes pressure points for extended component life.
- Precision Manufacturing: Crafted in Germany for exceptional quality and reliability.
Specifications
- Bore Size: 67.00 mm
- Piston Diameter: 66.94 mm
- Engine Displacement: 198 cm³
- Stroke: 58.00 mm
- Clearance: 0.06 mm
- Compression Height: 32.00 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)

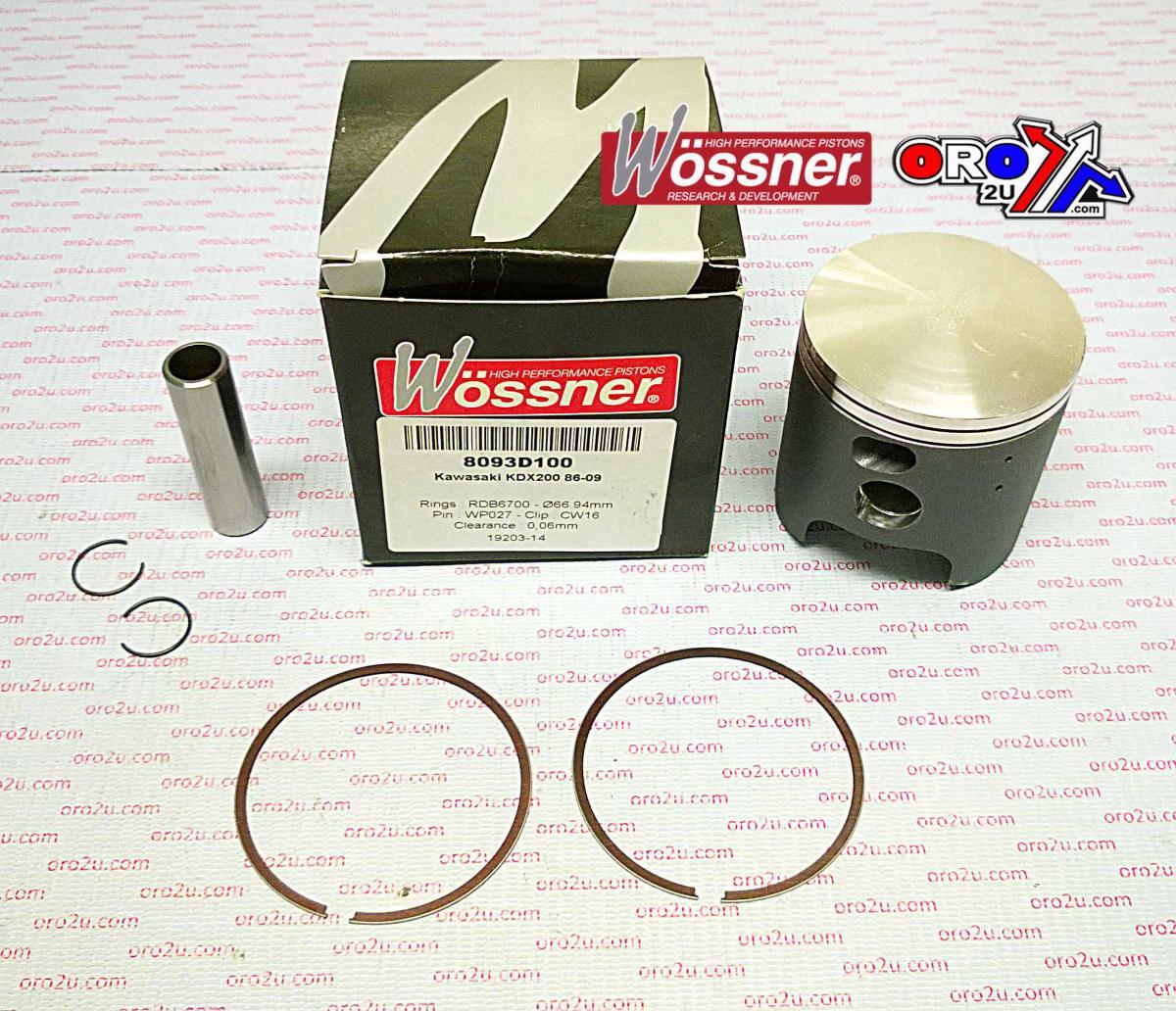

Wossner Part Cross-Reference
- Piston Kit: 8093D100
- Lock: CW16
- Pin: WP027
- Ring Set: RSB6700 x 2
- Rod: P2033
