PISTON KIT 86-09 KDX200 66.50, WOSSNER 8093D050 KAWASAKI MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply
Wossner Forged Piston Kit 66.50mm Bore. This forged piston kit features a 66.50 mm bore with a piston diameter of 66.44 mm. It is precision-forged and engineered for optimal performance in 2-stroke engines, providing excellent heat transfer and superior durability. The elliptical piston design supports uniform load distribution under high thermal stress, reducing wear and minimising the risk of piston failure. Manufactured in Germany. Features include a forged piston design for enhanced strength and longevity, efficient thermal transfer from the combustion chamber to cylinder walls, and an elliptical profile ensuring even thrust load distribution under heat expansion. Specifications: Bore Size 66.50 mm, Piston Diameter 66.44 mm, Engine Displacement 198 cm³, Stroke 58.00 mm, Clearance 0.06 mm, Compression Height 32.00 mm, Compression Ratio 2-stroke (Wossner and OEM). Wossner Part Number: 8093D050.
- SKU
- 56-W597+P2.WO
- Brand
- Wossner
- Availability
- In Stock (1)
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.50mm
- Variant Id
- 257029
FULL DESCRIPTION

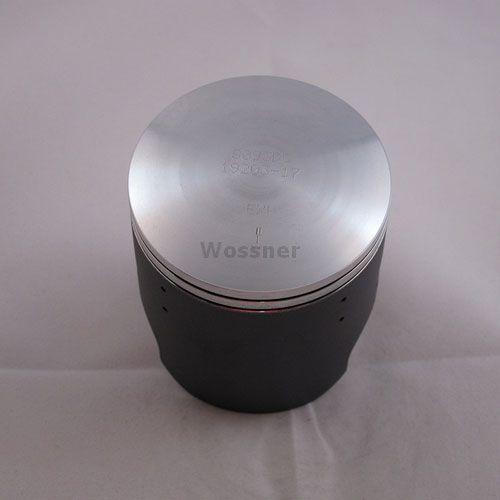

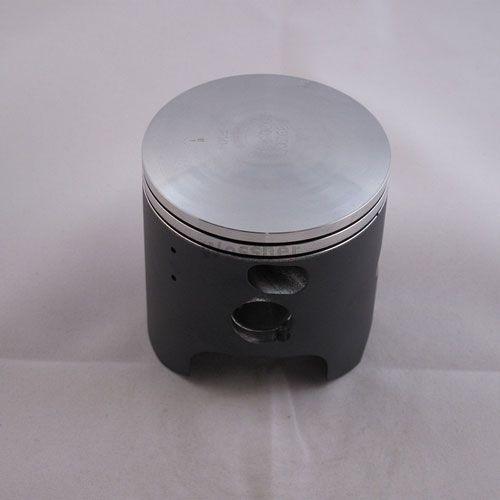

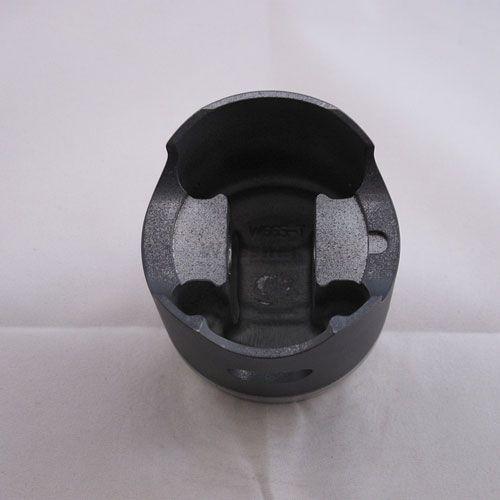

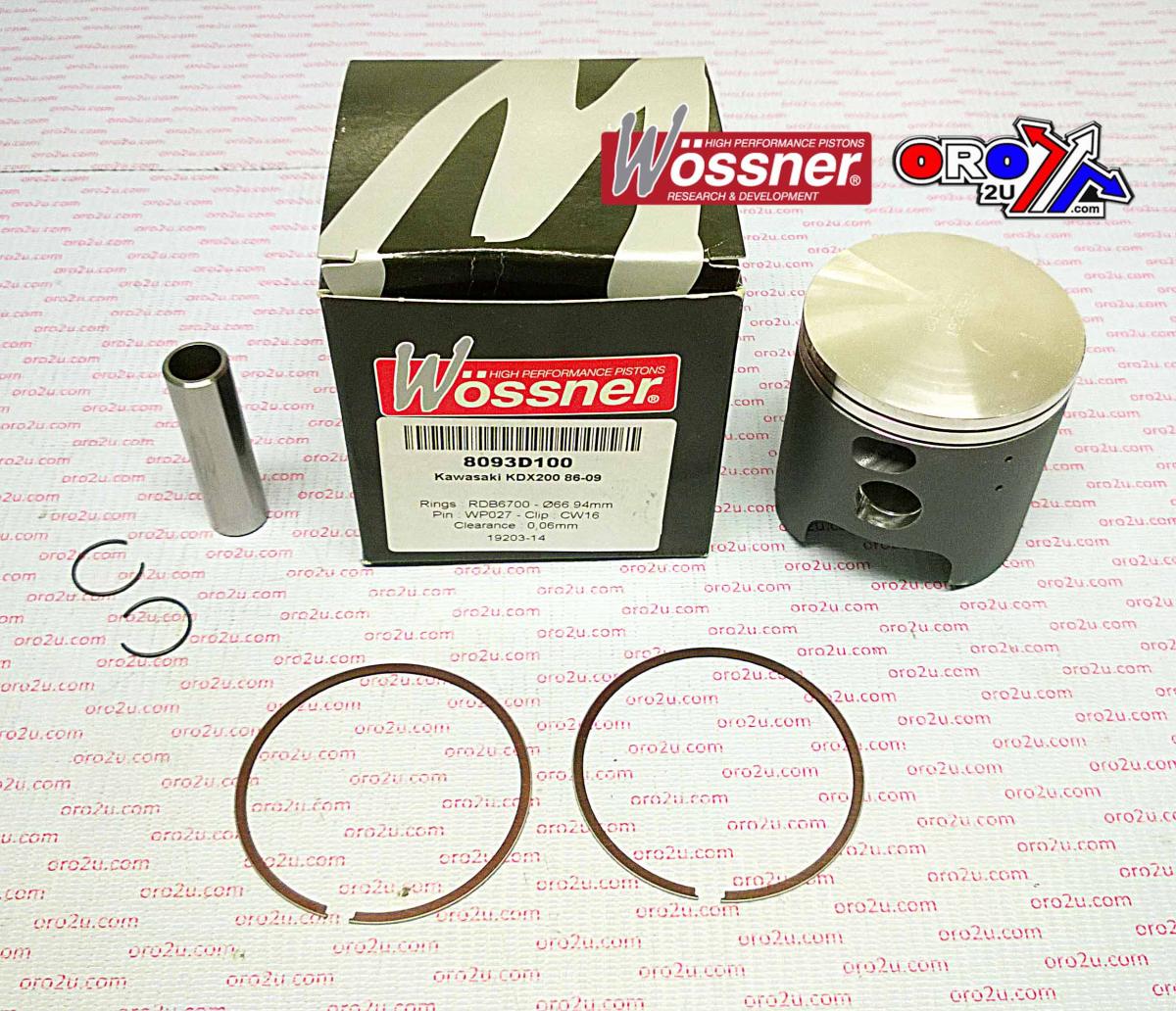

Wossner Forged Piston Kit - 66.50mm Bore
Enhance your motorcycle's performance with this Wossner forged piston kit. Precision-engineered for 2-stroke engines, this kit offers superior strength and durability.
Key Features:
- Forged piston construction for increased resilience and longevity.
- Optimized for efficient heat transfer from the combustion chamber to the cylinder walls, promoting consistent engine temperatures.
- Elliptical piston profile designed to ensure uniform load distribution, even under significant thermal expansion, minimizing wear.
- Manufactured in Germany, guaranteeing high standards of precision and performance.
Specifications:
- Bore Size: 66.50 mm
- Piston Diameter: 66.44 mm
- Engine Displacement: 198 cm³
- Stroke: 58.00 mm
- Clearance: 0.06 mm
- Compression Height: 32.00 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)
Wossner Part Numbers:
- Piston Kit: 8093D050
- Lock: CW16
- Pin: WP027
- Ring Set: RSB6650 x 2
- Rod: P2033
