PISTON KIT 86-09 KDX200 66.00, WOSSNER 8093DA KAWASAKI MX 13001-1219
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Wossner forged piston kit for Kawasaki KDX200 models from 1986 to 2006. This kit features a 66.00 mm bore size and a 65.94 mm piston diameter. Constructed from forged aluminium for increased strength and durability in demanding 2-stroke engine conditions. The elliptical geometry ensures consistent thrust load distribution and reduced stress, while promoting high-efficiency combustion heat dissipation to cylinder walls. Precision-manufactured in Germany. Specifications: Bore Size: 66.00 mm, Piston Diameter: 65.94 mm, Engine Displacement: 198 cm³, Stroke: 58.00 mm, Clearance: 0.06 mm, Compression Height: 32.00 mm, Compression Ratio: 2-stroke. Cross-Reference OEM Part Numbers: 13001-1219, 09104822, 711M06600. Cross-Reference Wossner Part Numbers: Piston Kit 8093DA, Lock CW16, Pin WP027, Ring Set RSB6600 x 2, Rod P2033.
- SKU
- 56-W597+P0.WO
- Brand
- Wossner
- Availability
- Out of Stock
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 66.00mm
- Variant Id
- 257027
FULL DESCRIPTION

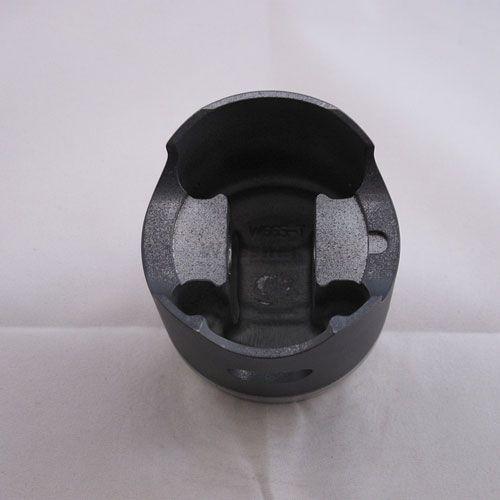

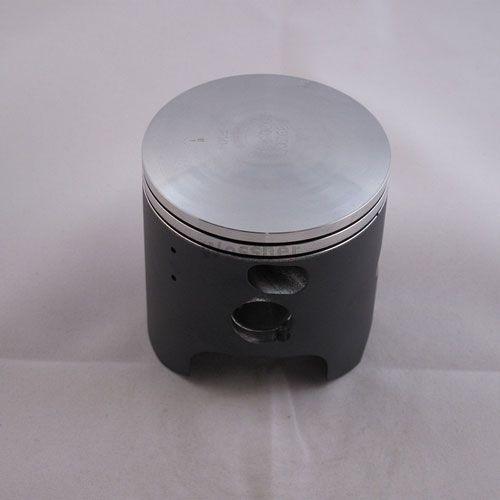

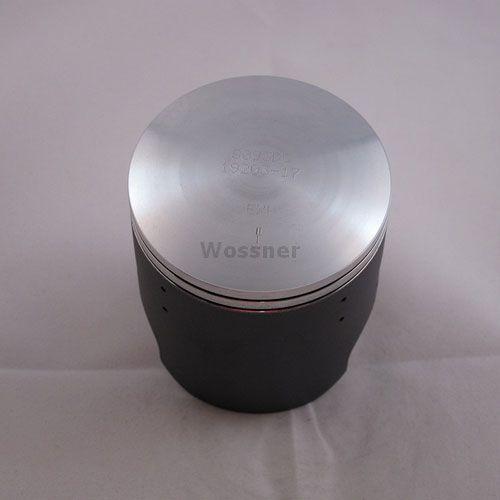

Wossner Forged Piston Kit - 66.00mm Bore
This Wossner forged piston kit is engineered for high-performance 2-stroke engines. Constructed from forged aluminum for exceptional strength and durability, this piston features an elliptical design that promotes superior heat transfer and even load distribution. Precision manufactured in Germany, it ensures reliability under demanding operating conditions.
Key Features:
- Forged aluminum construction for enhanced strength and longevity.
- Designed for efficient heat dissipation from the combustion chamber to cylinder walls.
- Elliptical piston geometry ensures consistent thrust load distribution and reduces stress.
- Precision-engineered and manufactured in Germany for optimal quality and performance.
Specifications:
- Bore Size: 66.00 mm
- Piston Diameter: 65.94 mm
- Engine Displacement: 198 cm³
- Stroke: 58.00 mm
- Clearance: 0.06 mm
- Compression Height: 32.00 mm
- Compression Ratio: 2-stroke (compatible with Wossner and OEM specifications)
Cross-Reference Information:
OEM Part Numbers:
- 13001-1219
- 09104822
- 711M06600

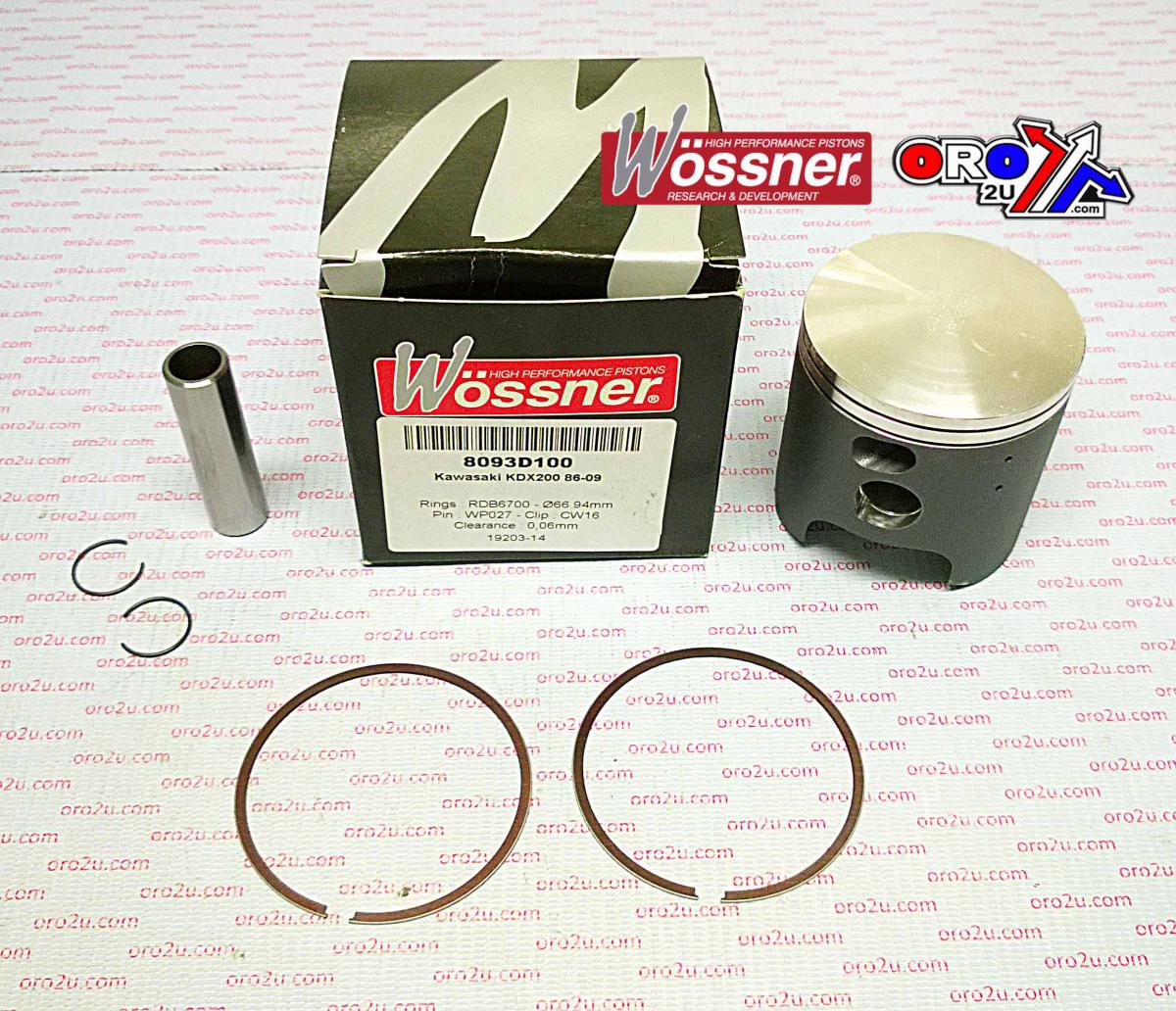

Wossner Kit Components:
- Piston Kit: 8093DA
- Lock: CW16
- Pin: WP027
- Ring Set: RSB6600 (x2)
- Rod: P2033
