PISTON KIT 86-04 KLF300 76.00, FORGED WOSSNER 8597DA 13001-1430
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days
Spread the cost with
18+, T&Cs apply

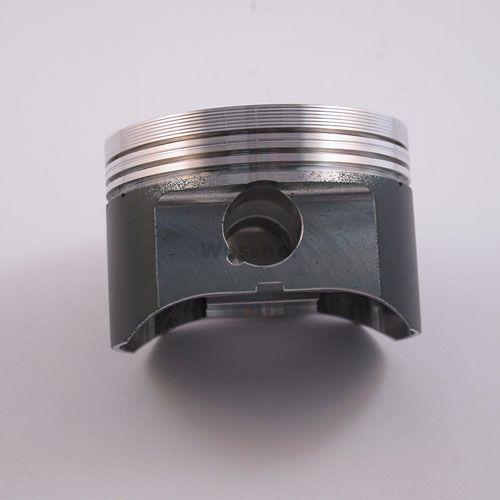

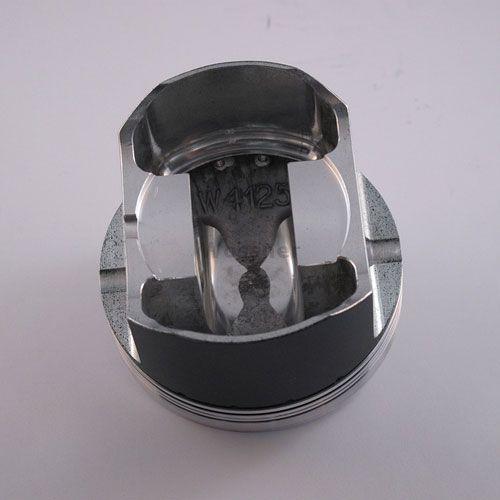

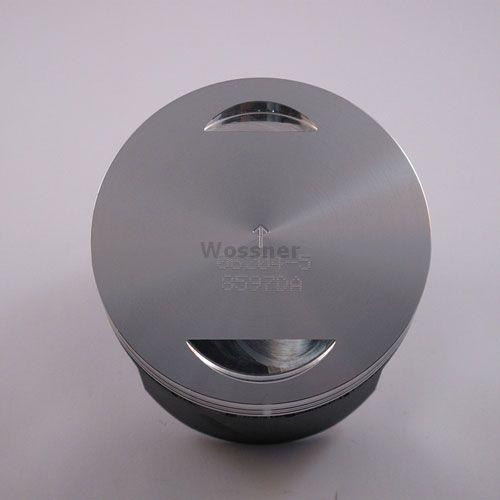

The Wossner 76mm Bore Piston Kit (Part No. 8597DA) is a high-performance forged piston. It is designed for strength and durability, optimizing heat transfer within the combustion chamber. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance. Features include high-strength forged piston construction, optimized heat transfer for improved combustion efficiency, and an elliptical design for even thrust load distribution. Specifications include a bore size of 76mm, actual bore diameter of 75.94mm, OEM compression ratio of 8.60:1, displacement of 290cc, stroke of 68.00mm, clearance of 0.06mm, dome volume of +0.40cm³, and compression height of 26.50mm. Cross-reference OEM part numbers include Lock P/N: CW18, Pin P/N: WP031, Ring Set P/N: 760XDS, and OEM Part Numbers: 13001-1430, 4671M07600.
- SKU
- 56-W4671.WO
- Brand
- Wossner
- Availability
- In Stock (1)
Fitments (54)
| Make | Model | Year |
|---|---|---|
| KAWASAKI | KEF 300 | 1995 |
| KAWASAKI | KEF 300 | 1996 |
| KAWASAKI | KEF 300 | 1997 |
| KAWASAKI | KEF 300 | 1998 |
| KAWASAKI | KEF 300 | 1999 |
| KAWASAKI | KEF 300 | 2000 |
| KAWASAKI | KEF 300 | 2001 |
| KAWASAKI | KEF 300 | 2002 |
| KAWASAKI | KEF 300 | 2003 |
| KAWASAKI | KLF BAYOU 250 | 1986 |
| KAWASAKI | KLF BAYOU 250 | 1987 |
| KAWASAKI | KLF BAYOU 250 | 1988 |
| KAWASAKI | KLF BAYOU 250 | 1989 |
| KAWASAKI | KLF BAYOU 250 | 1990 |
| KAWASAKI | KLF BAYOU 250 | 1991 |
| KAWASAKI | KLF BAYOU 250 | 1992 |
| KAWASAKI | KLF BAYOU 250 | 1993 |
| KAWASAKI | KLF BAYOU 250 | 1994 |
| KAWASAKI | KLF BAYOU 250 | 1995 |
| KAWASAKI | KLF BAYOU 250 | 1996 |
| KAWASAKI | KLF BAYOU 250 | 1997 |
| KAWASAKI | KLF BAYOU 250 | 1998 |
| KAWASAKI | KLF BAYOU 250 | 1999 |
| KAWASAKI | KLF BAYOU 250 | 2000 |
| KAWASAKI | KLF BAYOU 250 | 2001 |
| KAWASAKI | KLF BAYOU 250 | 2002 |
| KAWASAKI | KLF BAYOU 250 | 2003 |
| KAWASAKI | KLF BAYOU 250 | 2004 |
| KAWASAKI | KLF BAYOU 250 | 2005 |
| KAWASAKI | KLF BAYOU 300 | 1986 |
| KAWASAKI | KLF BAYOU 300 | 1987 |
| KAWASAKI | KLF BAYOU 300 | 1988 |
| KAWASAKI | KLF BAYOU 300 | 1989 |
| KAWASAKI | KLF BAYOU 300 | 1990 |
| KAWASAKI | KLF BAYOU 300 | 1991 |
| KAWASAKI | KLF BAYOU 300 | 1992 |
| KAWASAKI | KLF BAYOU 300 | 1993 |
| KAWASAKI | KLF BAYOU 300 | 1994 |
| KAWASAKI | KLF BAYOU 300 | 1995 |
| KAWASAKI | KLF BAYOU 300 | 1996 |
| KAWASAKI | KLF BAYOU 300 | 1997 |
| KAWASAKI | KLF BAYOU 300 | 1998 |
| KAWASAKI | KLF BAYOU 300 | 1999 |
| KAWASAKI | KLF BAYOU 300 | 2000 |
| KAWASAKI | KLF BAYOU 300 | 2001 |
| KAWASAKI | KLF BAYOU 300 | 2002 |
| KAWASAKI | KLF BAYOU 300 | 2003 |
| KAWASAKI | KLF BAYOU 300 | 2004 |
| KAWASAKI | KLF BAYOU 300 | 2005 |
| KAWASAKI | KVF PRAIRIE 300 | 1999 |
| KAWASAKI | KVF PRAIRIE 300 | 2000 |
| KAWASAKI | KVF PRAIRIE 300 | 2001 |
| KAWASAKI | KVF PRAIRIE 300 | 2002 |
| KAWASAKI | KVF PRAIRIE 300 | 2003 |
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 76mm
- Variant Id
- 255863
FULL DESCRIPTION
Wossner 76mm Bore Piston Kit for Kawasaki KLF300 Bayou
Upgrade your engine's performance with the Wossner 76mm Bore Piston Kit. This high-performance forged piston is meticulously engineered in Germany for superior strength and durability. Its advanced design optimizes heat transfer within the combustion chamber, promoting efficient combustion and improved engine reliability. The unique elliptical piston design ensures even load distribution across the piston surface, effectively reducing localized pressure and preventing potential piston collapse. This kit is designed to maintain the original equipment manufacturer (OEM) compression ratio for dependable engine operation.
Key Features:
- High-strength forged piston construction for exceptional durability.
- Optimized heat transfer for enhanced combustion efficiency.
- Elliptical design for even thrust load distribution, reducing stress.
- Manufactured to exacting standards in Germany.
- Maintains OEM compression ratio for reliable performance.
Specifications:
- Bore Size: 76.00mm
- Actual Bore Diameter: 75.94mm
- Compression Ratio: OEM
- OEM Compression Ratio: 8.60:1
- Displacement: 290cc
- Stroke: 68.00mm
- Piston Clearance: 0.06mm
- Dome Volume: +0.40cm³
- Compression Height: 26.50mm

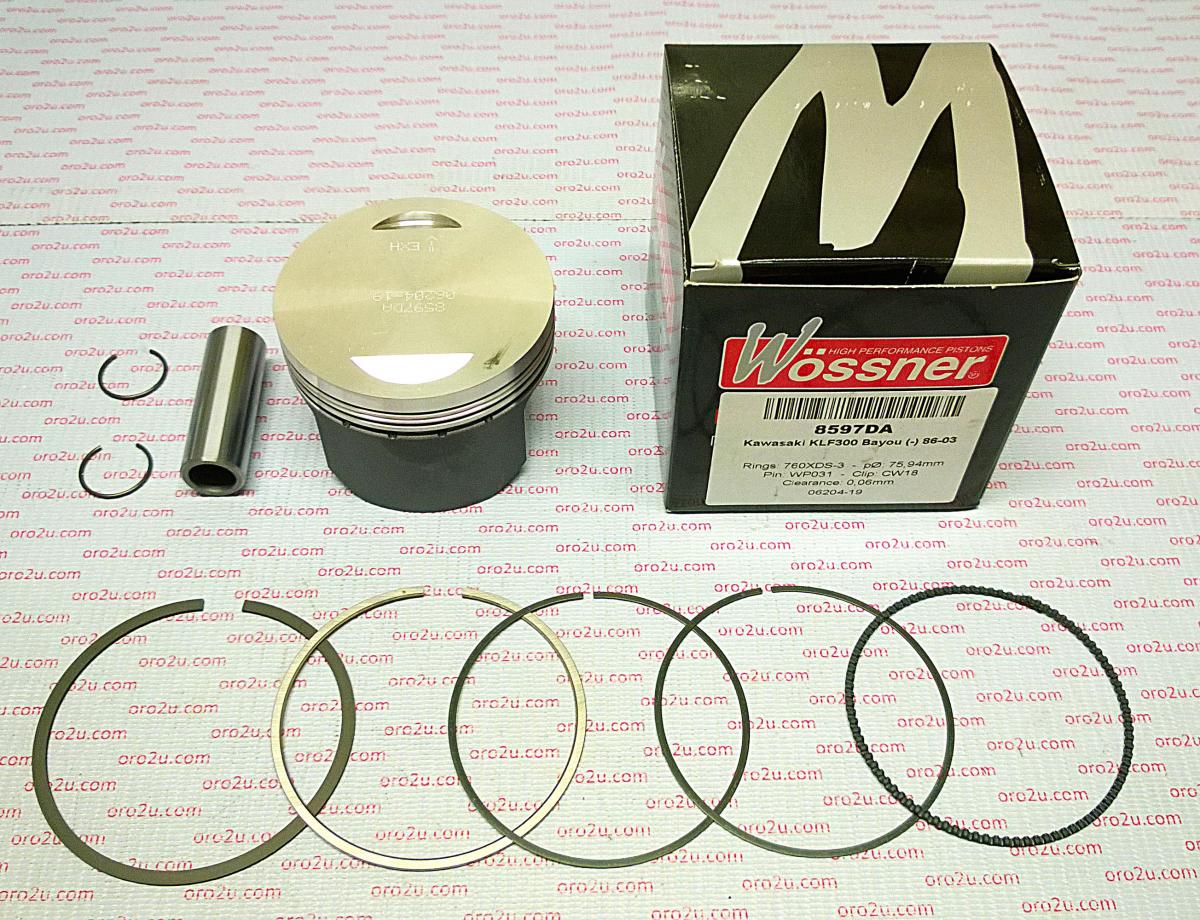

Component Part Numbers:
- Lock P/N: CW18
- Pin P/N: WP031
- Ring Set P/N: 760XDS
Cross-Reference OEM Part Numbers:
- 13001-1430
- 4671M07600
