PISTON KIT 85-86 CR125 55.00, WOSSNER 8127D100 HONDA MX
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

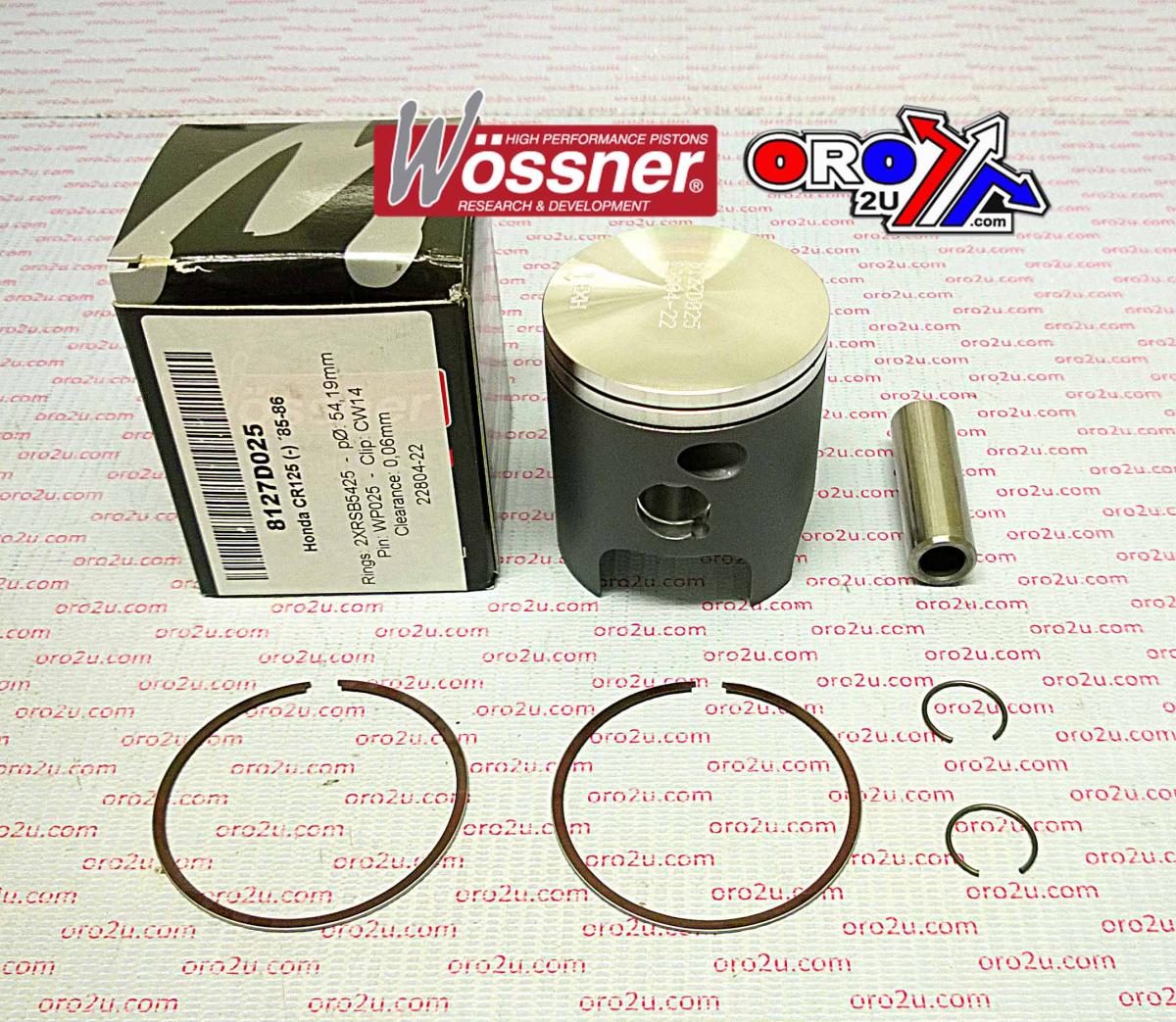

Wossner forged piston kit with a 55 mm bore (54.94 mm actual) is designed for Honda CR125 models from 1985 to 1986. This +1.00 mm oversize piston is crafted for maximum durability and efficient heat transfer. The elliptical design minimises stress points during heat expansion and evenly distributes thrust loads, reducing the risk of piston failure. Manufactured in Germany, it meets high standards of precision and performance. Features include forged construction for high strength and heat resistance, elliptical design for a uniform bearing surface during expansion, and optimisation for efficient combustion heat transfer to cylinder walls. It prevents localised pressure and piston collapse under load. Precision-manufactured in Germany. Specifications: Bore Size 55 mm (54.94 mm), Piston Part Number 8127D100, Lock Part Number CW14, Pin Part Number WP025, Ring Set Part Number RSB5500 x 2, Display (Displacement) 124 cm³, Stroke 54.00 mm, Clearance 0.06 mm, Compression Ratio (Wossner & OEM) 2-stroke, Compression Height 28.00 mm.
- SKU
- 56-W563+100.WO
- Brand
- Wossner
- Availability
- Out of Stock
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 55.0mm
- Variant Id
- 256875
FULL DESCRIPTION
Wossner Forged Piston Kit - 55mm Bore
Enhance the performance and durability of your motorcycle with the Wossner forged piston kit. This high-quality piston is engineered for precision and longevity, featuring a 55 mm bore (54.94 mm actual) and a +1.00 mm oversize specification. Designed for optimal heat transfer and superior strength, this kit is manufactured in Germany to exacting standards.
Key Features:
- Forged Construction: Provides exceptional strength and heat resistance for demanding conditions.
- Elliptical Design: Minimises stress points and ensures a uniform bearing surface during heat expansion.
- Optimised Heat Transfer: Efficiently transfers combustion heat to cylinder walls for improved performance.
- Load Distribution: Prevents localised pressure and piston collapse under heavy loads.
- Precision Manufactured: Crafted in Germany for guaranteed quality and performance.
Specifications:
- Bore Size: 55 mm (54.94 mm actual)
- Oversize: +1.00 mm
- Piston Part Number: 8127D100
- Lock Part Number: CW14
- Pin Part Number: WP025
- Ring Set Part Number: RSB5500 x 2
- Displacement: 124 cm³
- Stroke: 54.00 mm
- Clearance: 0.06 mm
- Compression Type: 2-stroke (Wossner & OEM)
- Compression Height: 28.00 mm
