PISTON KIT 85-86 ATC350 81.50, FORGED WOSSNER 8598D050
4.1 Trustpilot 99.9% positive on eBay
Free UK delivery 2–4 business days

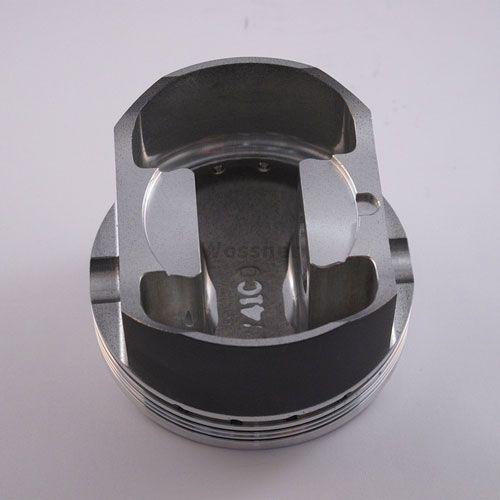

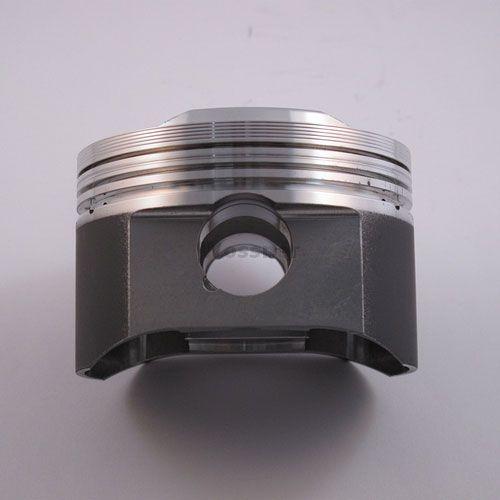

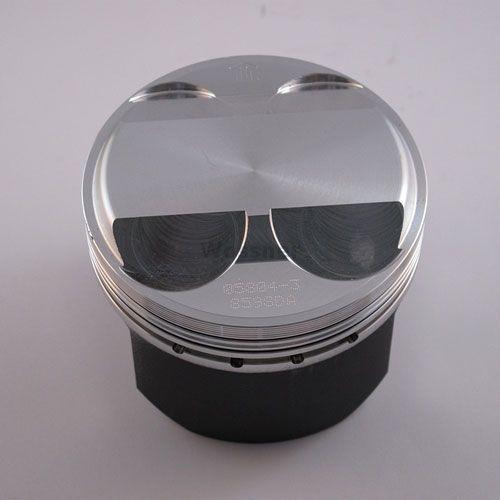

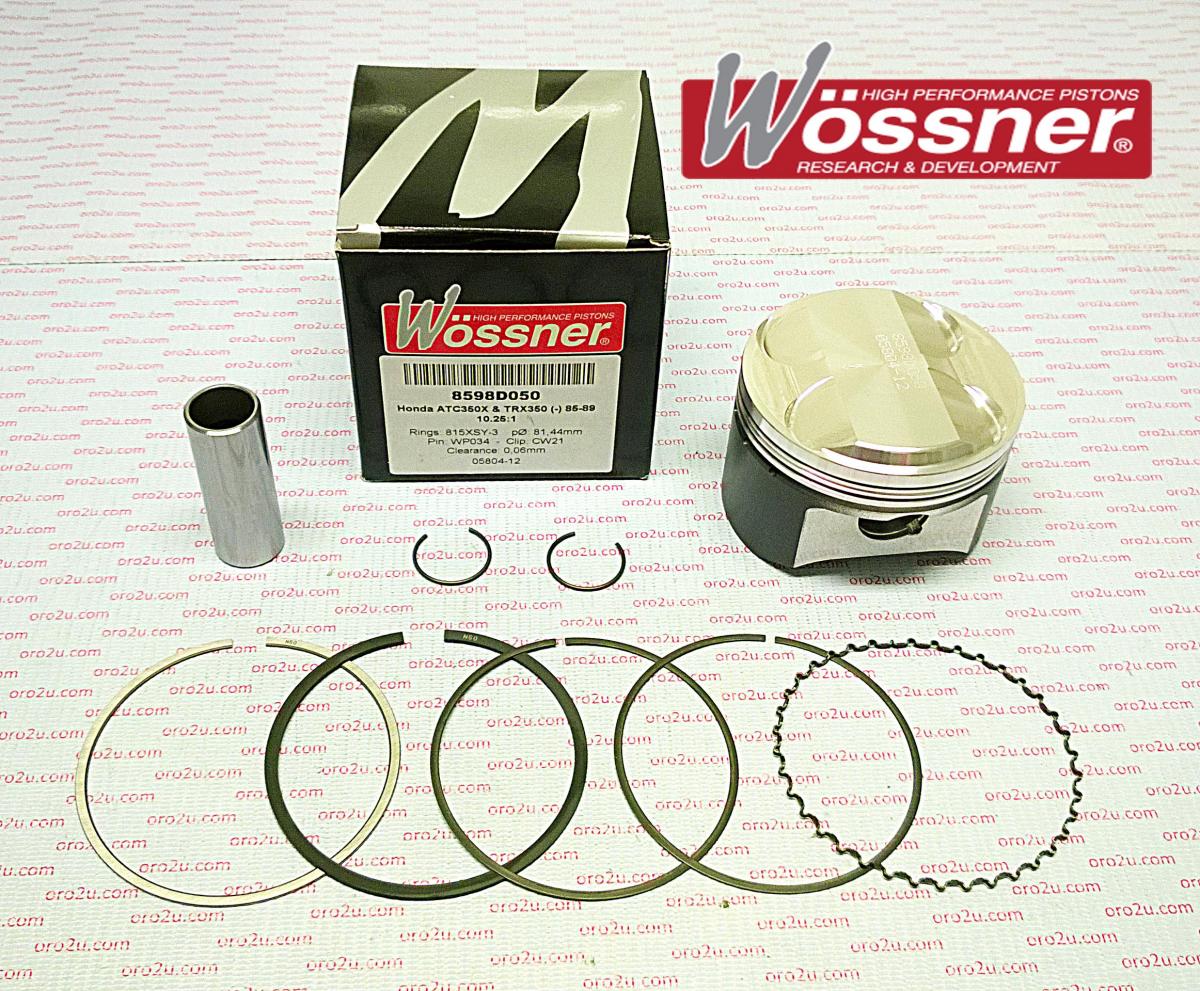

Wossner forged piston kit 8598D050. Bore size 81.50 mm, actual bore 81.44 mm, stroke 68.00 mm, clearance 0.06 mm, compression height 26.70 mm, dome volume +0.60 cm³, compression ratio 10.30:1 (OEM), displacement 350 cm³. Features forged construction for enhanced durability and strength, optimized heat transfer for improved performance, and an elliptical design for uniform bearing surface and reduced wear. Designed for 4-stroke engines. Made in Germany. Wossner part number 8598D050. Cross-reference OEM part numbers: Lock P/N CW21, Pin P/N WP034, Ring Set P/N 815XSY.
- SKU
- 56-W4393+0.5
- Brand
- Wossner
- Availability
- Out of Stock
- General Product Group
- Engine
- General Product Type
- Pistons & Kits
- General Size
- 81.50mm
- Variant Id
- 255616
FULL DESCRIPTION
Wossner Forged Piston Kit 85.50mm for 4-Stroke Engines
Upgrade your engine's performance and durability with this high-quality forged piston kit from Wossner. Engineered in Germany, this piston is designed for superior strength, efficient heat transfer, and reduced wear. The innovative elliptical design ensures even load distribution across the piston, preventing localized pressure points and enhancing overall engine longevity.
Key Features:
- Forged Construction: Provides exceptional strength and durability compared to cast pistons.
- Optimized Heat Transfer: Enhances thermal efficiency for improved engine performance.
- Elliptical Design: Promotes uniform load distribution on the bearing surface, minimizing wear and preventing piston collapse.
- 4-Stroke Engine Compatibility: Specifically designed for 4-stroke engine applications.
Specifications:
- Bore Size: 81.50 mm
- Actual Bore: 81.44 mm
- Stroke: 68.00 mm
- Clearance: 0.06 mm
- Compression Height: 26.70 mm
- Dome Volume: +0.60 cm³
- Compression Ratio: 10.30:1 (OEM)
- Displacement: 350 cm³
- Manufacturing Origin: Germany
Wossner Part Details:
- Wossner Piston Part Number: 8598D050
- Lock Ring Part Number: CW21
- Piston Pin Part Number: WP034
- Ring Set Part Number: 815XSY
