2Bros Parts

PISTON KIT 84-87 KLR600 97.50, FORGED WOSSNER 8509D150

£203.41Only 1 left

4.4 Trustpilot 99.9% positive on eBay

Free UK delivery 2–4 business days

Spread the cost with Klarna 18+, T&Cs apply

1

Piston Kit Wossner 8509D150, 97.50mm bore (+1.50mm). Forged Wossner piston kit with a 97.50mm bore. Features superior strength and design for efficient combustion chamber heat transfer to cylinder walls. Elliptical design prevents collapse under heat expansion. Made in Germany. Includes lock CW23, pin WP008, and ring set 975XSY. Specifications: 564 cm³ displacement, 62.10mm hub stroke, 0.05mm clearance, 12.80:1 compression ratio, +0.90cm³ dome volume, 23.70mm compression height, 259.00 grams theoretical weight.

Specifications
SKU
56-W172+1.50
Brand
Wossner
Availability
In Stock (1)

Fitments (4)

MakeModelYear
KAWASAKIKLR 6001984
KAWASAKIKLR 6001985
KAWASAKIKLR 6001986
KAWASAKIKLR 6001987
General Product Group
Engine
General Product Type
Pistons & Kits
General Size
97.5mm
Variant Id
254840
Delivery2–4 business days
14-Day ReturnsHassle-free
Easy CheckoutCard friendly
Product details

FULL DESCRIPTION

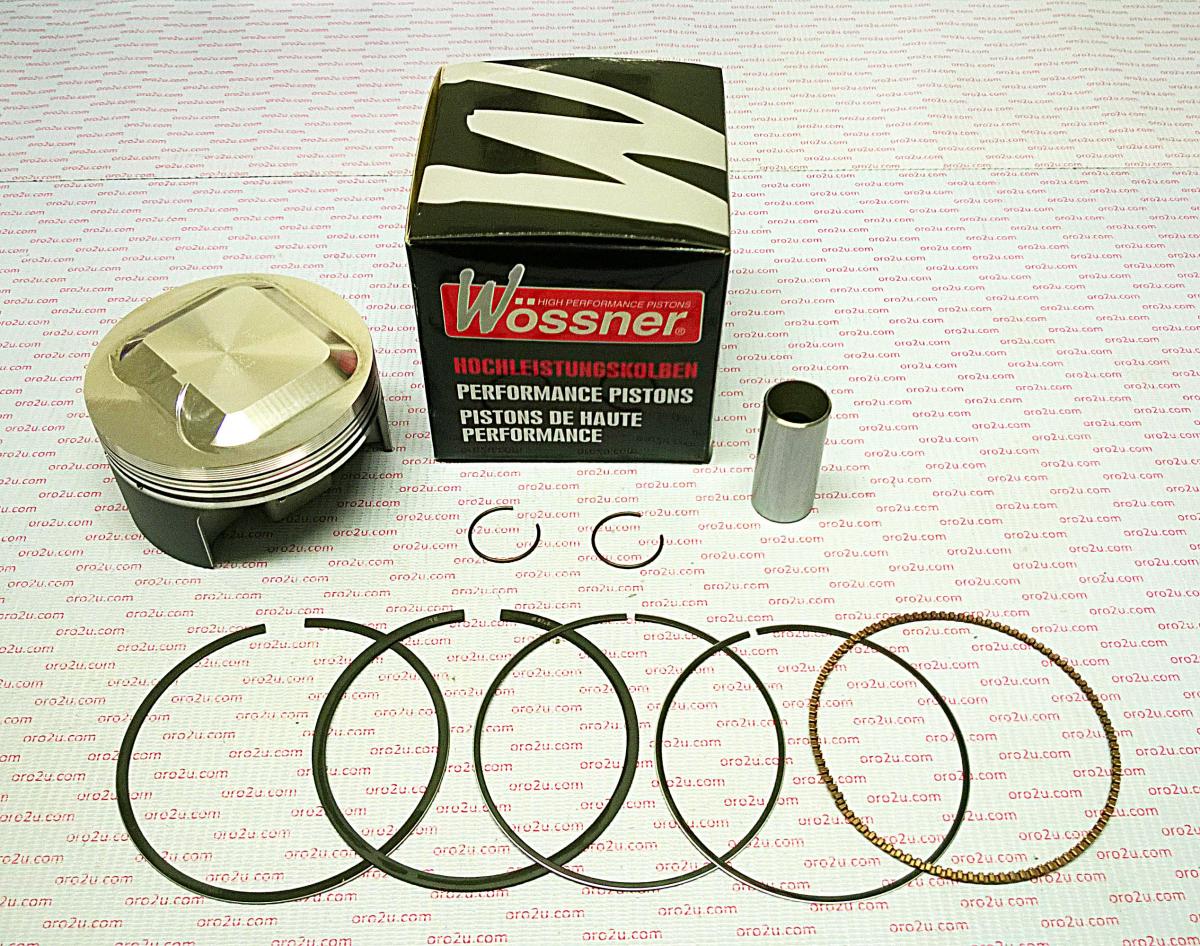

Wossner Forged Piston Kit 97.50mm Bore (+1.50mm)

Upgrade your engine with this high-performance Wossner forged piston kit, designed for superior strength and reliability. Engineered for optimal combustion, this piston kit features a precision elliptical design that ensures a uniform bearing surface even under extreme heat expansion, preventing piston collapse and maintaining optimal performance. Manufactured in Germany, Wossner pistons are renowned for their advanced design and exceptional durability.

This kit includes all necessary components for a complete installation:

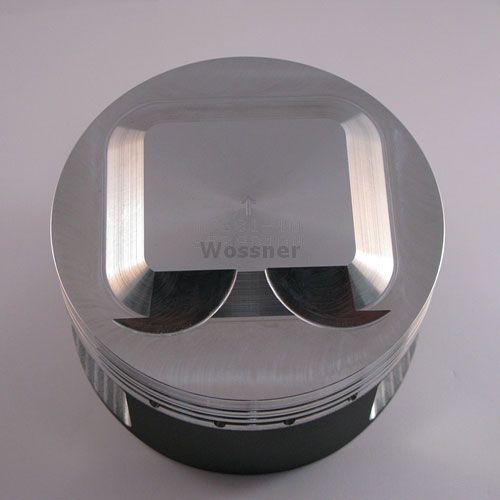

  • Piston: Wossner 8509D150, with a 97.50mm bore (+1.50mm)
  • Lock: CW23
  • Pin: WP008
  • Ring Set: 975XSY

Key Features:

  • Wossner forged pistons offer superior strength and advanced design.
  • Engineered for efficient combustion chamber heat transfer to cylinder walls.
  • Elliptical piston design provides a uniform bearing surface during heat expansion, preventing collapse.
  • Manufactured in Germany to exacting standards.

Specifications:

  • Bore: 97.50mm (+1.50mm)
  • Displacement: 564 cm³
  • Hub Stroke: 62.10mm
  • Clearance: 0.05mm
  • Compression Ratio: OEM specified (12.80:1)
  • Dome Volume: +0.90cm³
  • Compression Height: 23.70mm
  • Theoretical Weight: 259.00 grams
